Current as of 09/04/2024
INSTRUCTION MANUAL

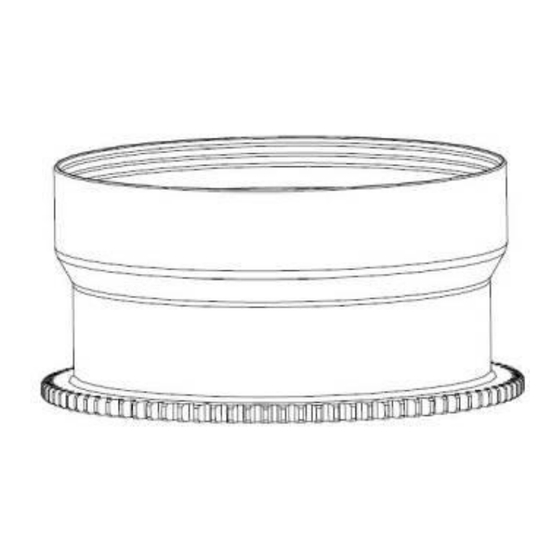

SFE2450-Z Zoom Gear for Sony FE
24-50mm f/2.8G Lens
PN# 37178
FORWORD
Thank you for your purchase of a NAUTICAM
product.
At NAUTICAM, we pride ourselves in the ability to
recognize the requirements of professional as well
as amateur underwater photographers and fulfill
them through the innovative designs of our
products. We strive to achieve a high level of user-
friendliness by allowing stress-free installation and
easy operation of all important functions of the
camera.
Each product is individually inspected and water
pressure tested to ensure optimum quality.
Please read this manual carefully before using the
product, this will maximize its performance as well
as its lifetime.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nauticam SFE2450-Z
Summary of Contents for Nauticam SFE2450-Z
- Page 1 PN# 37178 FORWORD Thank you for your purchase of a NAUTICAM product. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products.
- Page 2 Protect the interior from moisture with and/or placed within our products. and debris in order to prevent malfunction or NAUTICAM accepts no liability for any loss of leakage. captured images or the inability to capture images even if it is due to the malfunctioning of our •...
-
Page 3: Package Contents
PACKAGE CONTENTS • Make sure that you have all the included items listed below before using this product. • If some items are missing or damaged, contact us and the local Nauticam dealer. Plastic C-ring for Zoom Gear SFE2450-Z Zoom Gear... -
Page 4: Identification Of Parts
IDENTIFICATION OF PARTS Plastic C-ring for Zoom Gear SFE2450-Z Zoom Gear Spare rubber grips Remarks: The tightness between the gear and the lens can be adjusted by removing or adding rubber grips on either sides of the plastic C-ring, total 6 rubber grips... - Page 5 MOUNT THE GEARS ON A LENS 1. Insert the plastic C-ring for Zoom gear as shown and place it over the lens. 2. Insert the Zoom gear on a plastic C-ring until it reaches the flange of the plastic C-ring.
- Page 6 MOUNT THE GEARS ON A LENS 3. To remove the SFE2450-Z Zoom Gear for Sony FE 24-50mm f/2.8G Lens , reverse the above steps. The tightness between the SFE2450-Z Zoom Gear for Sony FE 24-50mm f/2.8G and the lens can be adjusted by removing...
- Page 7 CONTROL THE GEAR The SFE2450-Z Zoom Gear for Sony FE 24-50mm f/2.8G can be controlled by zoom/focus knobs of the housing. After mount the camera and lens (with gear installed) on the housing, confirm that the zoom/focus knobs operates correctly.
-
Page 8: Specifications
SPECIFICATIONS CARE AND MAINTENANCE #37178 SFE2450-Z Zoom Gear for Sony FE 24- 50mm f/2.8G • Soak the housing system in fresh water after each use, during which all control buttons/knobs Dimensions: DIA87.0 × 41.50mm should be operated a few times to avoid the accumulation of salt residue;...
