Nauticam SFE2470GM-Z Instruction Manual

37151 SFE2470GM 37151 SFE2470GM- - - - Z Zoom Gear
37151 SFE2470GM 37151 SFE2470GM
for Sony SEL2470GM FE 24 for Sony SEL2470GM FE 24- - - - 70mm
for Sony SEL2470GM FE 24 for Sony SEL2470GM FE 24
F2.8 GM F2.8 GM
F2.8 GM F2.8 GM
Instruction Manual
F F F F
OREWORD OREWORD OREWORD OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W W W W
ARRANTY ARRANTY
ARRANTY ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center is
located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
I I I I P P P P
DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF ARTS ARTS ARTS ARTS

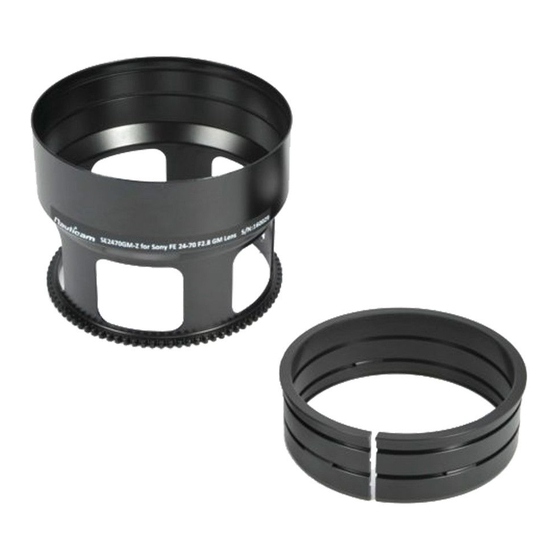

Plastic C-ring for
SFE2470GM-Z Zoom Gear
SFE2470GM-Z Zoom Gear
12x
Z Zoom Gear
Z Zoom Gear Z Zoom Gear
70mm
70mm 70mm
37151 1 1 1 3715
3715 3715
3715 5 5 5 1 1 1 1 371
371 371
Spare Rubber grips
M M M M G G G G
OUNTING THE OUNTING THE OUNTING THE OUNTING THE EAR ON A LENS EAR ON A LENS EAR ON A LENS EAR ON A LENS
1. Insert the plastic C-ring for zoom gear as shown and place it
over the lens
2. Insert the SFE2470GM-Z Zoom Gear on the plastic C-ring
until it reaches the flange of the plastic C-ring.
3. The tightness between the both gears and the lens can be
adjusted by removing or adding rubber grips on either sides of
the plastic C-ring, spare rubber grips are included in the package.
