5.
Find an empty ISA or PCI expansion
slot that is at least as long as the gold
edge of your modem. (ISA slots are dark
plastic grooves lined with metal and PCI
slots are white and usually shorter than
ISA slots.) Unscrew and remove the
expansion slot cover. It is the long
narrow piece of metal that keeps dust
from entering through the opening
perpendicular to the slot.


® ® ® ®
W W W W 95, W W W W 95, 95, 95,
INMODEM WITH INMODEM WITH INMODEM WITH INMODEM WITH INDOWS INDOWS INDOWS INDOWS
6.
Holding the modem at each corner, align
98, 98, 98, 98, W W W W NT 4.0 NT 4.0 NT 4.0 NT 4.0
INDOWS INDOWS INDOWS INDOWS AND AND AND AND INDOWS INDOWS INDOWS INDOWS
the gold edge with the empty expansion
slot. Push down gently until the modem

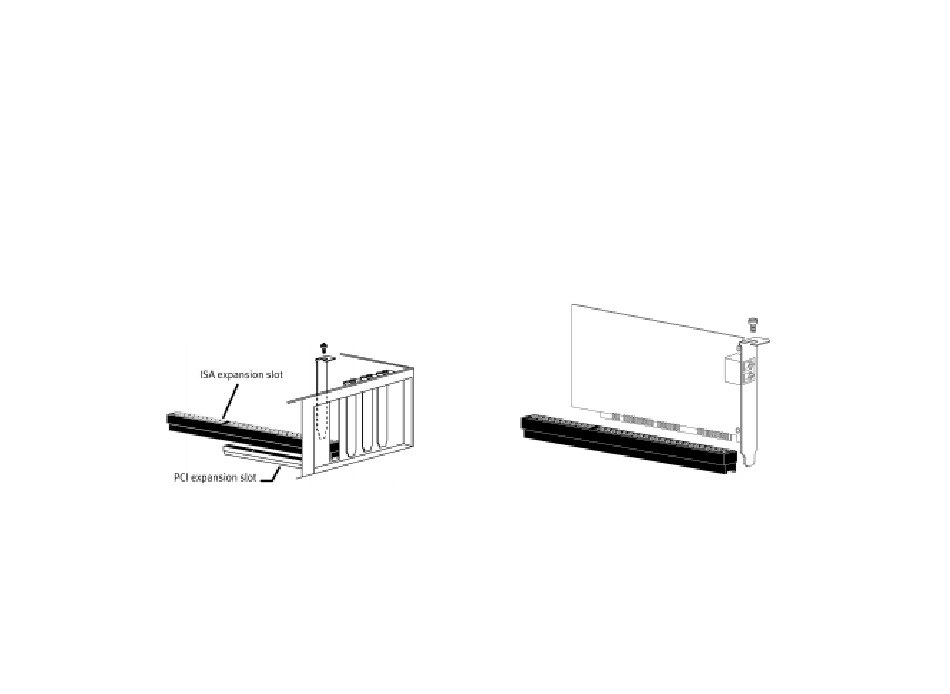

snaps into the slot. The drawing shows
horizontally aligned expansion slots.
Some computers have vertically aligned
slots. The instructions apply to both
styles.
