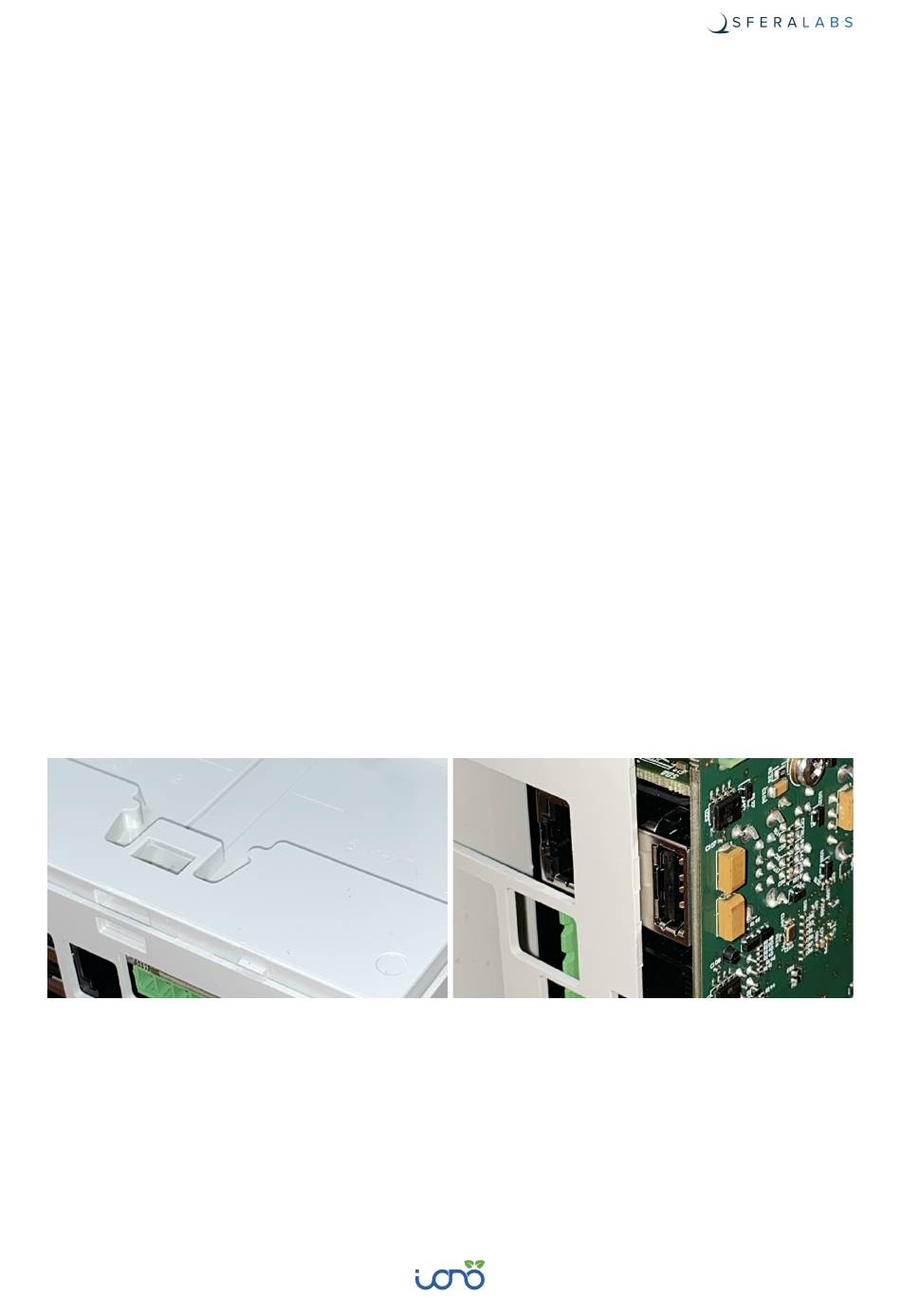

Opening the case

Follow these steps, in the exact order, to open the case:

1. Remove the green pluggable terminal blocks

2. Remove the black plastic DIN rail hook

3. With a small ﬂat screwdriver gently separate the case bottom and boards assembly

from the top shell; lift both sides gradually; pay attention not to touch the circuit boards

with the screwdriver's tip

4. The circuit boards assembly will simply slide out of the case, as it is mechanically held

in place by the case bottom only.

5. Remove the front panel. This will help aligning the circuit boards assembly with the

case walls

6. Replace the circuit boards assembly inside the case; ensure that the USB/Ethernet

connectors and terminal blocks are aligned with the openings in the case

7. Replace the case bottom, partially inserting both sides, then gently push on both sides.

The case bottom must perfectly ﬁt and ﬁrmly hook to the case cover. If it doesn't, the

circuit boards assembly is not perfectly ﬁt into the case top shell

8. Replace the front panel, ensuring that the frontal push-button is aligned to the panel's

hole

9. Replace the black plastic DIN rail hook.

To install your own Compute Module in Iono Pi Max Solo, or replace the pre-installed

module, no tools are required once the plastic enclosure has been removed and the circuit

boards assembly is exposed. The Compute Module ﬁts in a standard 200 pin DDR2

SODIMM (JEDEC MO-224 mechanical speciﬁcation) slot.
