Hardware setup

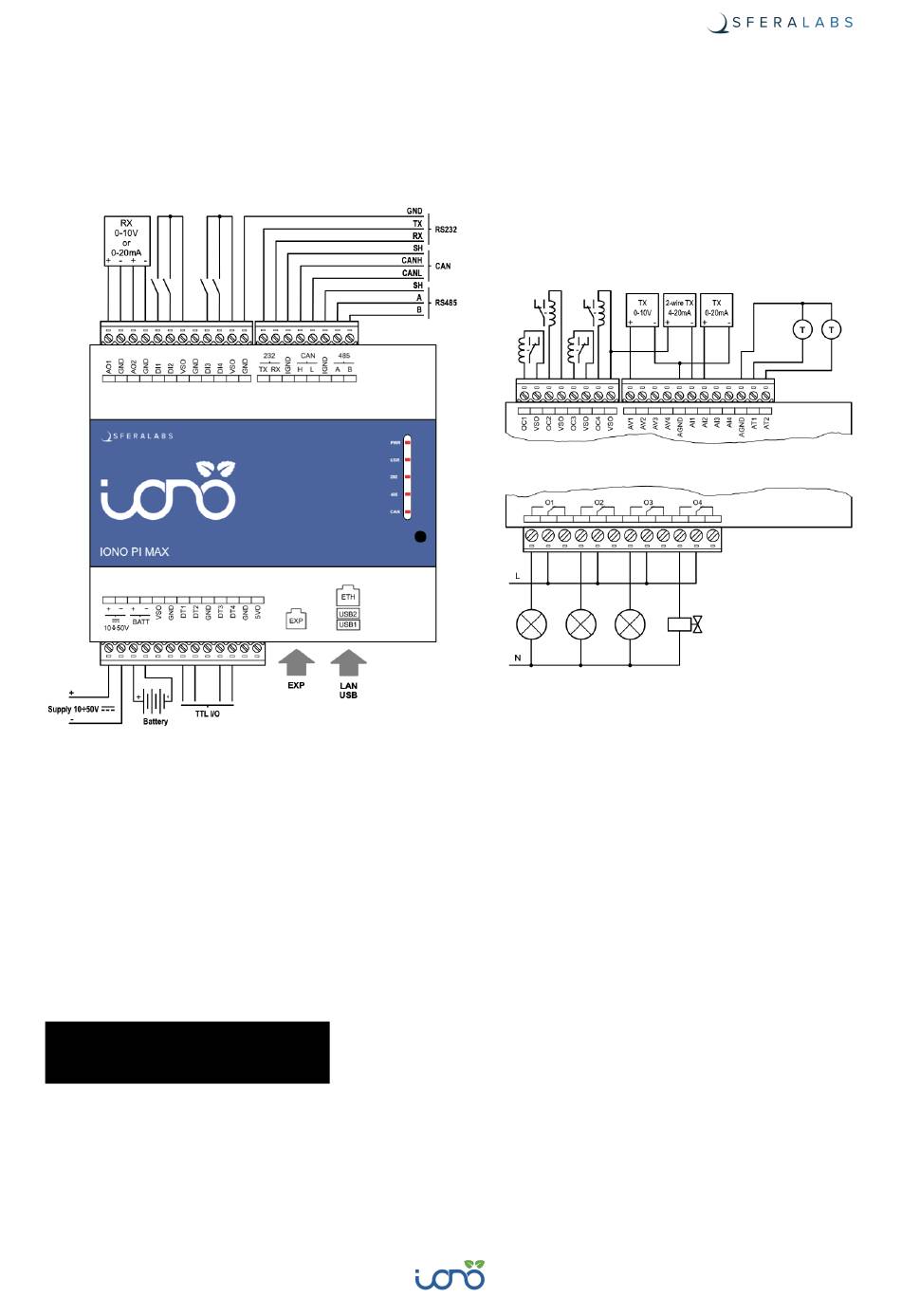

IONO PI MAX CONNECTION EXAMPLE

For the initial set-up, the plastic DIN rail enclosure must be removed to access the circuit

boards and internal connectors, to install or remove the Raspberry Pi Compute Module

and the µSD cards.

The case also needs to be opened if the factory conﬁguration of the RS-485 and CAN

termination resistors must be changed (see below), or to connect to the microcontroller

programming and debug header.

NOTICE

Before opening the Iono Pi Max enclosure, disconnect all power sources and any

connection to external devices, including USB and Ethernet cables.

Iono Pi Max User Guide
