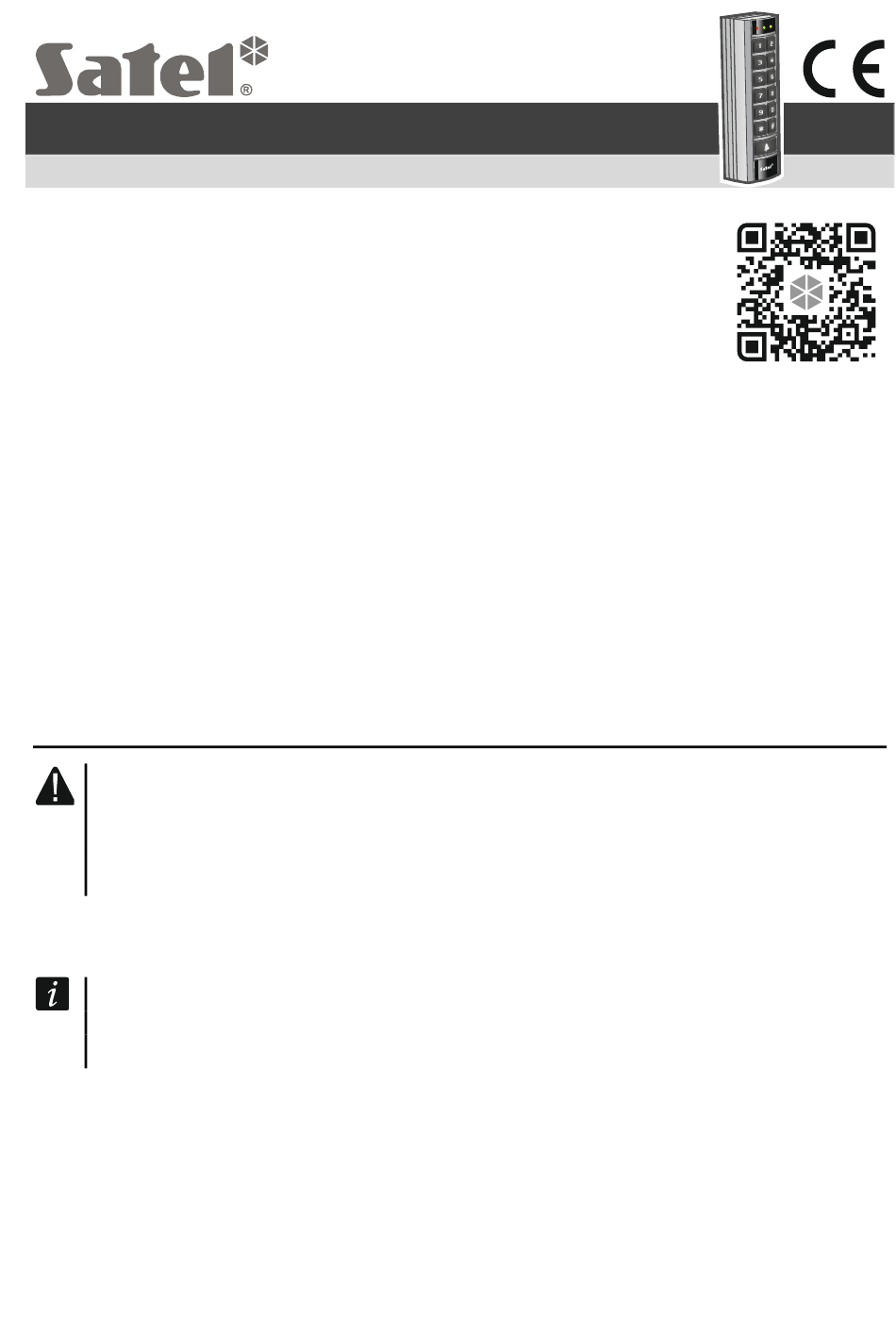

CR-MF5
Keypad with MIFARE proximity card reader
Full manual is available on
to our website and download the manual.
The CR-MF5 keypad can operate as:
• INT-SCR partition keypad in the INTEGRA alarm system,
• ACCO-SCR keypad with proximity card reader in the ACCO access control system,
• keypad with proximity card reader in systems of other manufacturers,
• standalone door control module.
Before you mount the keypad, program the settings required for the selected operating mode
in the CR SOFT program. The exception is a keypad that is to operate in the ACCO NET
system and is to be connected to the ACCO-KP2 controller using the RS-485 bus (OSDP
protocol). The OSDP protocol is supported by the ACCO-KP2 controllers with firmware
version 1.01 (or newer). In that case, you can program the required settings in the
ACCO Soft program (version 1.9 or newer).

Installation

The device should be installed by qualified personnel.
Prior to installation, please read the full manual.
Disconnect power before making any electrical connections.
1. Open the keypad enclosure.
2. Connect the keypad to the computer. Use the USB / RS-485 converter (e.g. ACCO-USB
by SATEL). Follow the instructions in the converter manual.
Do not connect more than 24 access control devices with the MIFARE card reader
(CR-MF5 and CR-MF3) to the converter. The CR SOFT program may not be able to
support more devices correctly.
3. Program the keypad in the CR SOFT program.
3.1. Create a new project or open an existing project.
3.2. Establish connection between the program and the device.
3.3. Program the settings and upload them to the keypad.
4. Disconnect the keypad from the computer.
5. Run the cables to where you want to install the keypad. To connect the RS-485 bus,
we recommend using a UTP cable (unshielded twisted pair). To make other connections,
use unshielded straight-through cables.
Quick installation guide
www.satel.pl
. Scan the QR code to go
cr-mf5_sii_en 11/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-MF5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Satel CR-MF5

  • Page 1 SATEL). Follow the instructions in the converter manual. Do not connect more than 24 access control devices with the MIFARE card reader (CR-MF5 and CR-MF3) to the converter. The CR SOFT program may not be able to support more devices correctly.
  • Page 2 CR-MF5 SATEL 6. Place the enclosure base against the wall and mark the location of mounting holes. 7. Drill the holes in the wall for wall plugs (anchors). 8. Run wires through the opening in the enclosure base. 9. Use wall plugs and screws to secure the enclosure base to the wall. Select wall plugs specifically intended for the mounting surface (different for concrete or brick wall, different for plaster wall, etc.).
  • Page 3 SATEL CR-MF5 Description of terminals for keypad in the ACCO system Terminal Description not used not used not used DATA/D1 data [ACCO-SCR interface] RS-485 bus terminal [OSDP] RS-485 bus terminal [OSDP] not used +12V +12 VDC power input common ground...
  • Page 4 BELL OC type output The declaration of conformity may be consulted at www.satel.pl/ce SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
