Satel CA-6 KLED Quick Start Manual

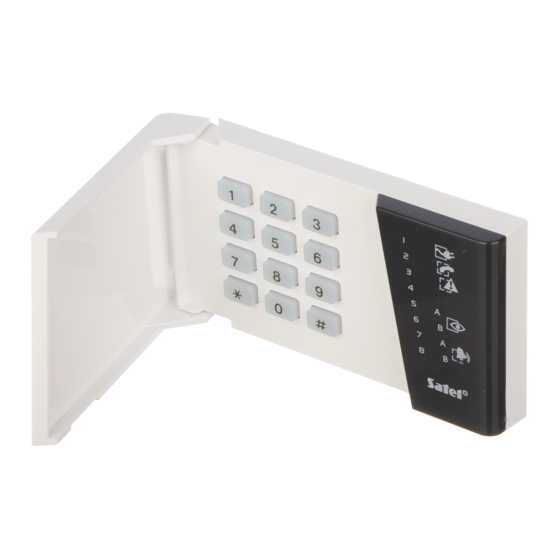

The CA-6 KLED keypad is designed for operating and programming the CA-6 alarm
control panel. Information on the security system status is provided by 15 LED
indicators and acoustic signals. The keypad has 12 keys intended for entering data
and launching selected functions. The keys can be illuminated, and operations with
them can be audibly acknowledged.
LED indicators show the current status of 2 partitions and 8 zones of the control panel:
(green color) – the LED indicates the control panel power status:
POWER
− ON – mains supply and battery OK,
− blinking – low battery,
− OFF – AC loss.
(red color) – LED ON indicates that the telephone line is occupied by
PHONE
the control panel.
(yellow color) – blinking LED indicates there is a failure in the alarm
TROUBLE
system.
- 2 LEDs (red color), designated "A" and "B", assigned to partitions –
ALARM
alarm is signaled by the LED blinking. The LED goes out after alarm reset.
- 2 LEDs (green color), designated "A" and "B", assigned to partitions –
ARMED
armed status is signaled by the LED ON. The blinking LED indicates that the
partition exit delay countdown is in process.
1...8 - (red color) LEDs indicating the status of system zones:
− ON – zone violated,
− blinking fast – alarm memory (the zone triggered alarm, but is not
violated any more),
®

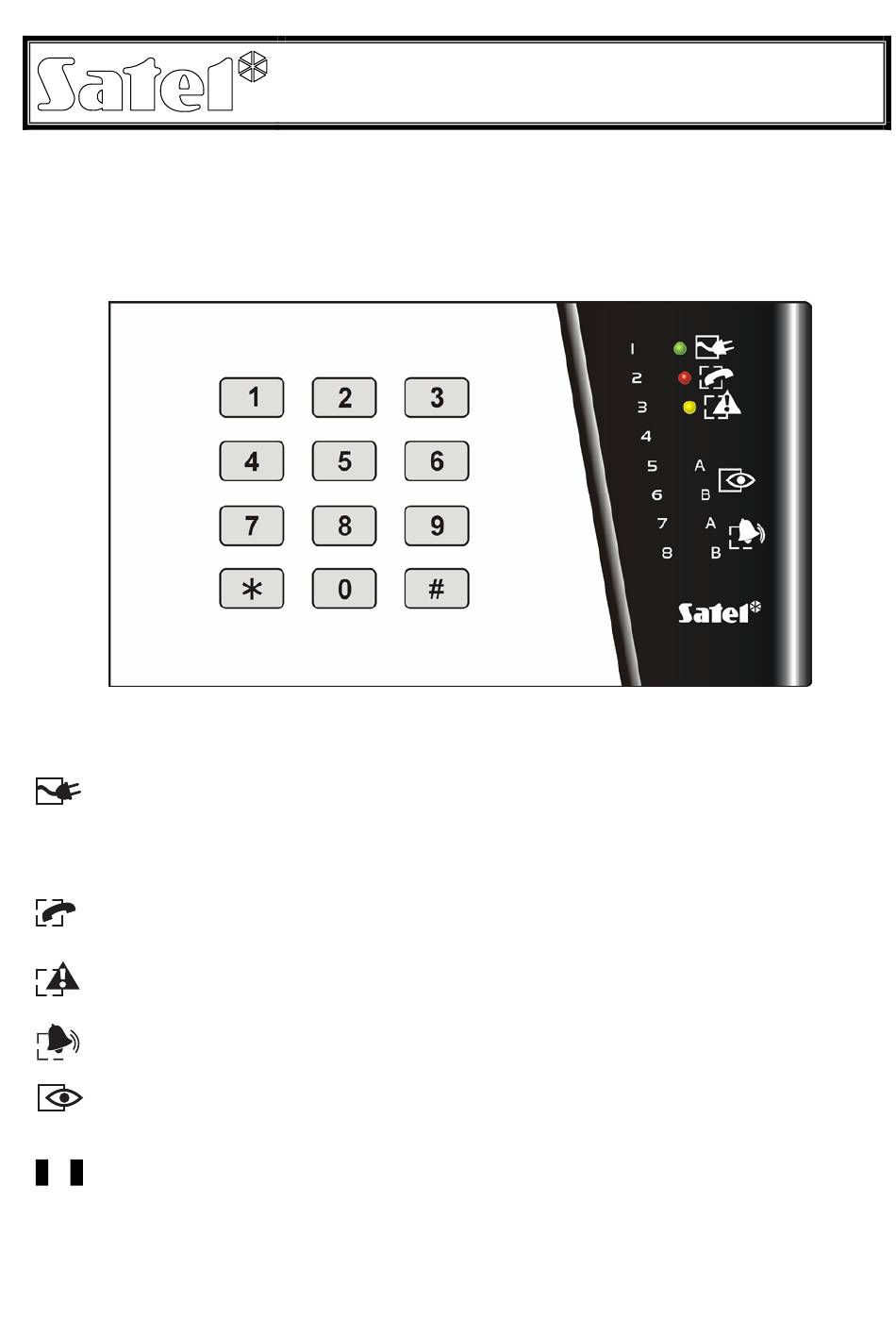

Fig. 1. View of the keypad.
KEYPAD
CA-6 KLED
ca6kled_e 03/06
