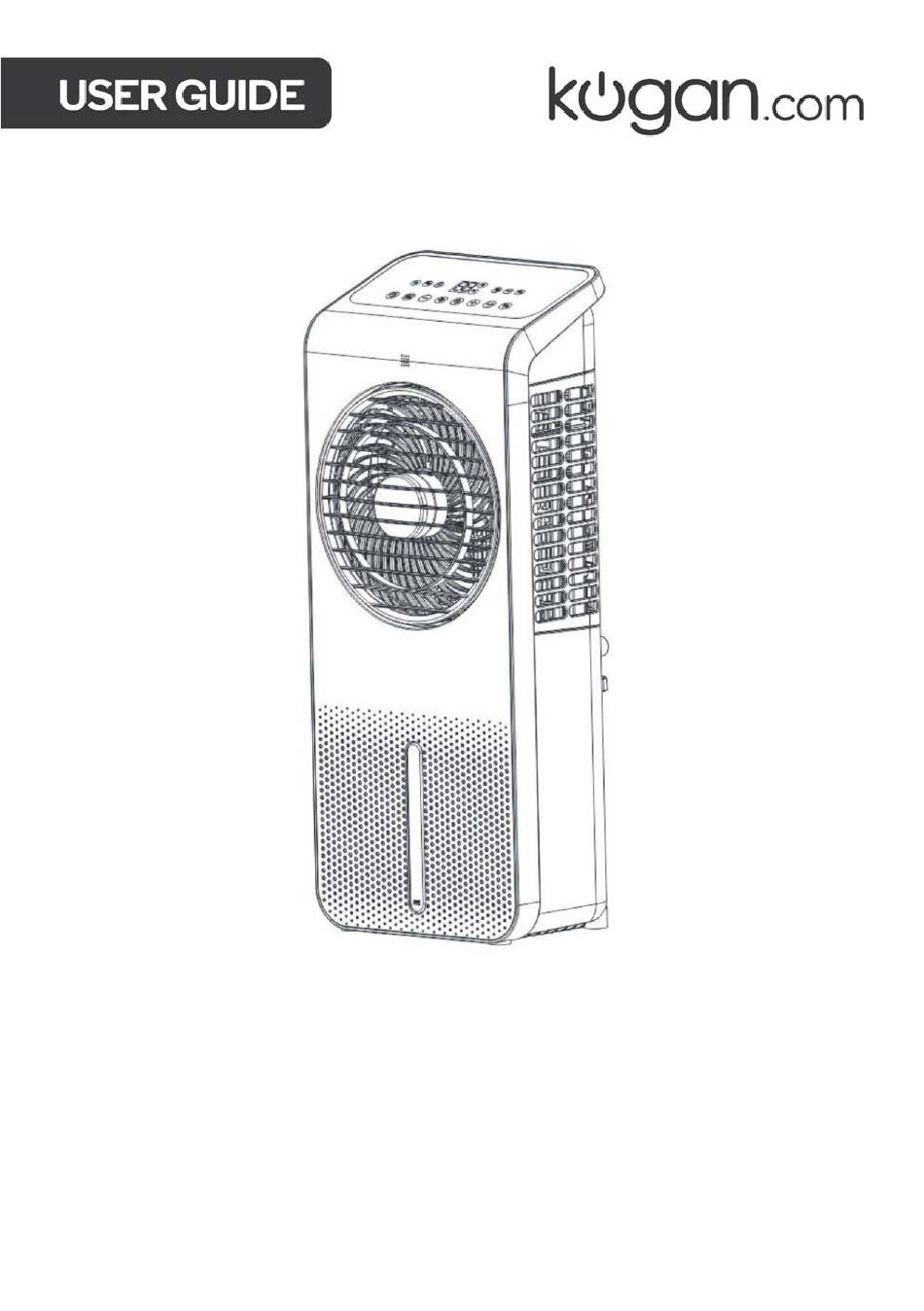

- Page 1 SUPER SLIM EVAPORATIVE AIR COOLER KASSDCEACLA...
- Page 2 Safety & Warnings Overview Installation Operation Cleaning & Care Specifications Notes...
-
Page 3: Safety And Warnings
• In the event of unusual smells or abnormal sounds during usage, cease immediately and contact help.Kogan.com for support. • After adding water to the unit, avoid tilting or colliding it during placement or movement to prevent splashing. If the product is accidentally tipped and contains water, unplug it promptly and allow it to dry for 24 hours before turning it on again. - Page 4 • While humidifying, it is strictly forbidden to disassemble or assemble the air filter net and wet curtain bracket, as this may result in water droplets spraying from the air outlet. • When leaving or not using the machine for an extended period, be sure to turn it off and unplug the power cord from the socket.
- Page 5 OVERVIEW Control panel Remote control Front cover Rear filter Front grille Rear cover Air duct Power cord bracket Side filter Water tank Power cord...
- Page 6 Remote Control Control Panel Power Mode Decrease (fan speed/timer) Fan speed Timer Increase (fan speed/timer) Swing Cooling/Humidifying...
- Page 7 Display Fan indicator Cooling/Humidifying Mode Digital display Hour indicator Swing indicator...
-
Page 8: Installation
INSTALLATION Installing/Replacing Remote Battery This remote control is powered using x1 CR2032 3V battery. Replace the battery when necessary. • Place the remote control with the control buttons facing downward. • Push the buckle on the battery cover inward and pull the battery slot out. Buckle •... - Page 9 Caster Installation Ensure both casters are installed with the wheels facing outwards. Front Rear Rear Front Note: The casters have been designed to be a one-time installation. Once installed the casters are not easily removed. Ensure they are installed in the correct orientation the first time.
-
Page 10: Operation
OPERATION Connect the power cord to an electric outlet, the air cooler will ‘beep’ twice, the air cooler is now in standby. In standby all indicators expect for power are off. Pressing any button other than Power will be invalid. Name Icon Description... - Page 11 Fan Modes Press the mode button to change fan modes. The symbol for the selected mode will show on the display panel. Pressing and holding the mode button for 3 seconds will turn the display off. Normal Mode The air cooler will run at a constant speed. 1st to 8th fan speeds.
- Page 12 Dry Air Mode In this mode, the evaporative cooler primarily focuses on cooling the air by passing it through the cooling pads while minimizing the amount of water vapor introduced into the environment. It is useful in areas with already high humidity levels or when the user prefers a cooling effect without increasing the moisture content in the air.
- Page 13 Refilling Water If you need to turn on the cooling and humidifying mode, ensure the water tank has been filled with water. Note: When the air cooler is used for the first time, there may be a slight odour and the water in the water tank will have a slight discoloration. This is a normal and will not affect your health or the operation of the air cooler.
- Page 14 Usage Ice Packs An ice pack can be added to the water tank to increase the cooling performance of the air cooler. • Place one of the provided ice packs into the freezer until it is completely frozen. • Open the water tank and add the frozen ice pack to the water.
-
Page 15: Cleaning And Care
CLEANING & CARE • Turn off the air cooler and disconnect it from power before cleaning. • Do not use any harsh chemicals to clean this product. Water Tank cleaning Unplug the power cord, unlock the release tab to the horizontal direction and pull out the water tank. -
Page 16: Specifications
SPECIFICATIONS Rated voltage 220-240V~ Rated frequency 50Hz Rated power Noise (High speed) ≤55dB Rated output air volume ≥280m Rated evaporation ≥350mL/h Energy efficiency ratio 10W/W Dimensions L263.9 x W210.6 x H644.4mm Net weight 3.3±0.5Kg 4.6±0.5Kg (Included the weight of two standard Packing weight medium-sized ice pack) Application environment... - Page 17 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
