Summary of Contents for Kogan SMARTERHOME KAPRA14WFGA

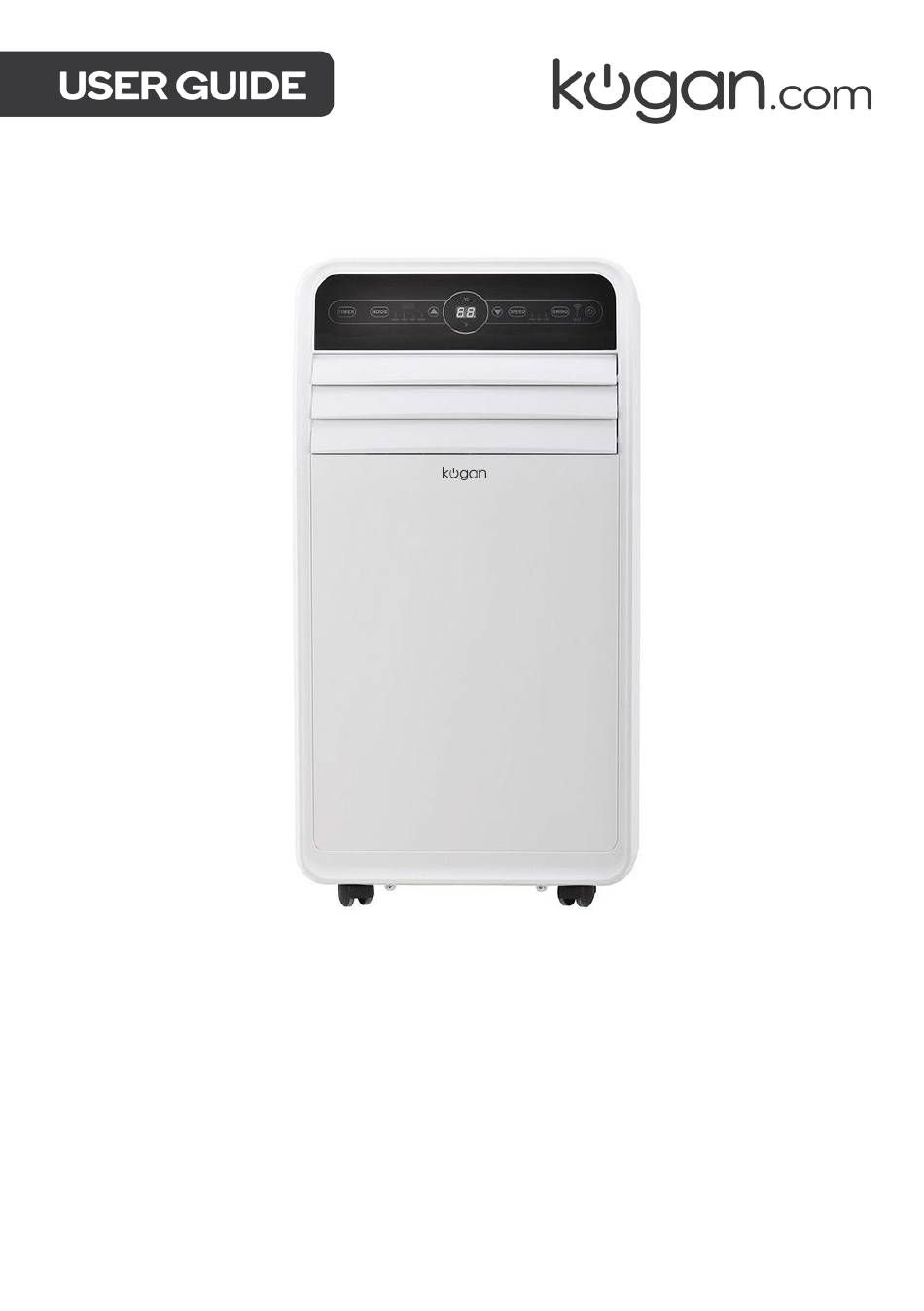

- Page 1 KOGAN SMARTERHOME™ 4.1KW PORTABLE AIR CONDITIONER (14,000 BTU, REVERSE CYCLE) KAPRA14WFGA...
-
Page 3: Safety And Warnings
• There are no user-serviceable parts inside the air-conditioner. All maintenance must be done by a Kogan.com technician or a suitably qualified repair service. Important Safety Tips • Do not use damaged power cords or plugs. Do not plug the air-conditioner into a loose power outlet. - Page 4 If the air-conditioner starts to emit a strange noise, odour or smoke, switch the unit off immediately and disconnect the plug from the power socket. Contact the Kogan.com customer support team for further information. • Do not place heavy objects on the power cord.
- Page 5 OVERVIEW Handle Air Inlet (Left) Control Panel Air Outlet Louver Caster wheels...
- Page 6 Remote control Air Outlet (Right) Exhaust Air Outlet Water Drainage Outlet 10 Air Inlet Grille...
- Page 7 Exhaust Duct Assembly 12 Window Sealing Plate Assembly Not shown: Drainage pipe...
- Page 8 Control Panel & Remote Control Functions 1. POWER button Press this button to switch the air conditioning on and off. 2. Automatic Swing Function While in any mode, press to make the air guide bars swing automatically. Guide bars move up and down exclusively.
- Page 9 Remote Control batteries: Insert the batteries correctly before using the remote control. • Slide the battery cover on the back of the remote control. • Insert x2 new AAA (DC 1.5 V) batteries, ensuring the polarity (+/-) is correct. Check the markings on both the batteries and the remote before installing.
-
Page 10: Installation
INSTALLATION Installation position • Place the air-conditioner on a flat floor near a window • To maintain good air circulation and obtain the optimum air-conditioning performance, ensure there is 50cm of space around the unit. Notes on installation • It is important to keep the exhaust hose straight. - Page 11 Installation accessories for window ventilation Exhaust Duct assembly Exhaust Joint Exhaust air hose Exhaust air hose adapter Window sealing plate assembly (sliding bar): Window sealing plate 1 Window sealing plate 2 Bolt...
- Page 12 Installation of the window ventilation (For vertical or horizontal sliding window) Measure the window size. Adjust the length of the window sealing plate, making it to fit the size of the window. Once the length of the window sealing plate is determined, fix its length into place with the bolt.
- Page 13 Place the exhaust pipe assembly into the window sealing plate assembly, then fix it in place with screws. The window ventilation is now completely mounted and the appliance is ready for use. Note: If using with a hinged window with an angled opening, a hinged window attachment will be required.
-
Page 14: Operation
OPERATION Cool mode • After being powered and turned on to cool mode, the cool mode indicator light will come on. • Press the UP or DOWN button to adjust the desired temperature (17°C – 30°C). • Press the SPEED button to select high, medium or low speed. Fan mode •... - Page 15 Heat mode • Select heat mode by pressing the MODE button, then the heat mode indicator light should illuminate. • Press the UP or DOWN buttons to adjust the desired temperature (17°C ~ 30°C). • Press the SPEED button to select high, medium or low speed. Timer •...
- Page 16 Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Register If you do not have a Kogan SmarterHome™ account, register or sign in with a verification code sent by SMS. To register: Tap to enter registration page.
- Page 17 Set device in pairing mode When the air conditioner is first turned on, it may automatically enter pairing mode (the WiFi light will be flashing rapidly). If not automatically in pairing mode when powered on, you can manually set the air conditioner in pairing mode by holding the SPEED button on the control panel for 5 seconds until the Wi-Fi indicator light begins flashing rapidly.
- Page 18 Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™...
- Page 19 From the home page of the Google Home app, select the “+” icon to access the ‘Add and manage’ page. Select ‘Set up device’, then under the Works with Google banner, select ‘Have something already set up?’ Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service.
- Page 20 Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and your devices. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 21 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
- Page 22 AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Alexa app From the home page of the Alexa app, select the “ ” icon in the top-right and select Skills &...
- Page 23 Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 24 SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands. Note: Please note that Alexa can only control the base/core functions of any compatible SmarterHome™...
-
Page 25: Cleaning And Care
CLEANING & CARE WARNING: Risk of electric shock! Turn the appliance off and unplug the power cord before cleaning, servicing or repairing the appliance. This product is equipped with an automatic water vaporisation system. The condenser is cooled by the circulation of the condensed water to improve the cooling capacity and save energy. - Page 26 Cleaning the filters It is recommended to clean the filters every two weeks. If the indoor air quality is poor, the filters should be cleaned more often. If the filters are clogged with dust, the performance of the appliance will be impaired. Follow the cleaning procedure below: Remove plug from the power supply.
- Page 27 Notes on cleaning the filters • Do not use water that is too hot for cleaning the filter (optimum is approx. 40°C) and no aggressive cleaning agents (such as alcohol, petrol, benzene, etc.). • To avoid deformation of the filter, keep cleaned filters away from heat sources and place them in a dry place for air drying.
-
Page 28: Specifications
SPECIFICATIONS Air Conditioners Cooling Power 4100W Capacity Cooling 14000Btu/H Cooling Range 17 - 30°C Heating Capacity 14000Btu/H Heating Range 17 - 30°C Dimensions Air Exhaust Hose Length: 150cm Diameter: 15cm Dimensions 830 x 443 x 340mm Power Cord Length 1.8m Weight 29kg Min Length: 67.5cm... -
Page 29: Troubleshooting
TROUBLESHOOTING Error Messages Coil temperature sensor error Error of the indoor temperature sensor Frost protection function: If the coil temperature is too low, the appliance is switched off. If the temperature rises above 8 °C, the protection is released and the previous operating state is restored. - Page 30 NOTES...
- Page 31 NOTES...
- Page 32 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
