KOGAN SMARTERHOME™ 2.6KW
PORTABLE AIR CONDITIONER
(9,000 BTU, COOLING ONLY)
KAWFPAC09YA

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMARTERHOME KAWFPAC09YA and is the answer not in the manual?

Questions and answers

Summary of Contents for Kogan SMARTERHOME KAWFPAC09YA

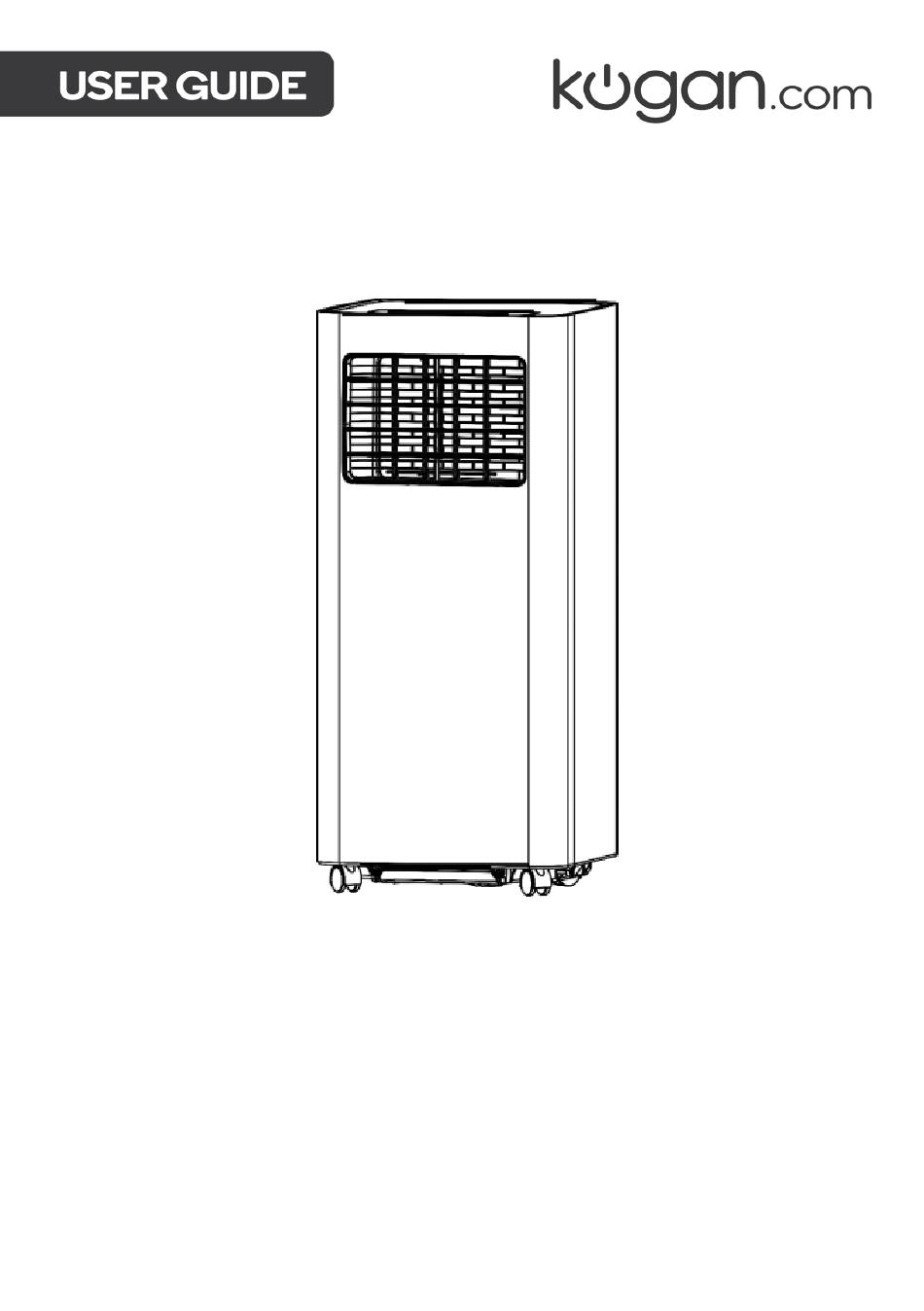

  • Page 1 KOGAN SMARTERHOME™ 2.6KW PORTABLE AIR CONDITIONER (9,000 BTU, COOLING ONLY) KAWFPAC09YA...
  • Page 3: Safety And Warnings

    SAFETY & WARNINGS Before Initiation To avoid damage, place the unit in an upright position for at least 24 hours before initiation. Make sure that the air outlet and air inlet are never blocked. Only operate the unit on a horizontal surface to ensure no water leaks out. Warnings •...
  • Page 4 • Never store the appliance in a room in which there are permanent sources of ignition (e.g. open flames, a switched-on gas appliance or a switched-on electric heater). • Do not perforate any of the components in the refrigerant circuit. Refrigerant gas may be odourless.
  • Page 5 Notes on Refrigerant R290 • The air conditioning system must be kept and transported upright. Otherwise, irreparable compressor damage may occur. Leave the unit for at least 24 hours before putting it into operation. • Switch off the device and disconnect it from the power supply before cleaning. •...
  • Page 6 • In areas where splash water can occur; • Near bathtubs, in washrooms, near showers or swimming pools. • Never insert your fingers or other objects into the ventilation openings. Ensure children are explicitly warned to not do this. • Ensure that the appliance is positioned upright (vertically) during both transport and storage so that the compressor is correctly positioned.
  • Page 7 Instructions for handling damage • In case of damage to the device, cease use immediately, turn off the power, unplug the power cord, and contact help.kogan.com for support. • Do not use again until it has been approved by a representative of the manufacturer.
  • Page 8 OVERVIEW 6 Drainage Nozzle Control panel 2 Air inlet grille (Upper) Air inlet grille (Lower) 3 Wind guide bar 8 Duct Assembly 4 Handle 9 Window Kit 5 Cord Storage 10 Remote Control...
  • Page 9 Fan Button: Press this button to select the air speed. A light will indicate whether you have selected high or low speed. Hold the Fan button down for 3 seconds to enter WiFi pairing mode for Kogan SmarterHome connection. Down Button: Press this button in cool mode to decrease the temperature;...
  • Page 10 Remote Control On/Off Button: To turn the device on or off. Cold Mode Button: Press this button to select the Cold mode. Dehumidifier/Dry Mode Button: Press this button to select the Dehumidifier/Dry mode. High/Low Buttons: Press these buttons to select high speed or low speed. Timer Button: Press this button when the device is stopped to set when you want it to turn on.
  • Page 11: Read Before Use

    READ BEFORE USE Instruction, Repairing Appliances Containing R290 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precaution shall be completed prior to conducting work on the system.
  • Page 12 The following checks shall be applied to installations using flammable refrigerants: • The actual refrigerant charge is in accordance with the room size within which the refrigerant containing parts are installed. • The ventilation machinery and outlets are operating adequately and are not obstructed.
  • Page 13 Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and currently permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while living in the presence of a flammable atmosphere.
  • Page 14 15. Charging procedures In addition to conventional charging procedures, the following requirements shall be followed. • Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.
  • Page 15 17. Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. For appliances containing flammable refrigerants, ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. 18.
  • Page 16: Installation

    INSTALLATION Installation position • Place the appliance in a dry, horizontal position near the window and maintain a safety distance of at least 50cm around the appliance. Best Installation 50cm • Turn the drainage tube at the air outlet behind the panel (counterclockwise). •...
  • Page 17 Incorrect installation • It is important to keep the duct unblocked. A correct installation will affect to the performance of your appliance. • Avoid the duct blending at any point. • Ensure the airflow can fluid correctly.
  • Page 18 Window Kit Installation Installing the window kit: • Exhaust air duct assembly: Connection Exhaust air duct Flat Nozzle • Window Kit Installation Your window kit has been designed to fit most standard "vertical" and "horizontal" window applications. However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of windows.
  • Page 19 Depending on the portable AC purchases, window kit could be fixed to the window by screws or by a clip, as it is shown in the picture below: Screw-fixture Type Plate#1 Plate#2 Screw Clip-fixture Type Plate#1 Plate#2 Clip If your kit includes screws: Measure window dimensions Adjust the plate’s length according to the window’s length Fix the plate with the screw...
  • Page 20 If your kit includes clip: Measure window dimensions Adjust the plate’s length according to the window’s length Fix the plate using the clip on the plate Then, fix the plate to the window Note: Casement Windows kit: If you have a casement window, please note that the window kit included with this appliance is not compatible.
  • Page 21: Operation

    OPERATION Before You Put It into Operation • Check if the air inlets and outlets of the unit are blocked. • Check that the partition plate stop and the base stop are installed correctly. • Before turning the unit on, make sure the air filter is in the correct position. If the equipment is operated without the air filter, dust and other objects will cause the air conditioning to malfunction.
  • Page 22 Dry Mode/ Dehumidifying Mode • Select this mode via the control panel of the device or with the remote control, the indicator light in this mode will light • This mode has the particularity of regulating the temperature of the room automatically and acting as a dehumidifier.
  • Page 23 Sleep Mode • In cold mode, press "SLEEP" on the remote control; or press Timer and the down button on the control panel simultaneously; • The speed in this case cannot be adjusted manually. In this mode, the fan will be forced to work at low voltage.
  • Page 24 Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Register If you do not have a Kogan SmarterHome™ account, register or sign in with a verification code sent by SMS. To register: Tap to enter registration page.
  • Page 25 Set device in pairing mode When the air conditioner is first turned on, it may automatically enter pairing mode (the WiFi light will be flashing rapidly). If not automatically in pairing mode when powered on, you can manually set the e air conditioner in pairing mode by holding the fan button on the control panel for 3 seconds until the WiFi indicator light begins flashing rapidly.
  • Page 26 Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™...
  • Page 27 From the home page of the Google Home app, select the “+” icon to access the ‘Add and manage’ page. Select ‘Set up device’, then under the Works with Google banner, select ‘Have something already set up?’ Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service.
  • Page 28 Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and your devices. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 29 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
  • Page 30 AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Alexa app From the home page of the Alexa app, select the “ ” icon in the top-right and select Skills &...
  • Page 31 Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 32 SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands. Note: Please note that Alexa can only control the base/core functions of any compatible SmarterHome™...
  • Page 33: Cleaning And Care

    CLEANING & CARE Water Drainage The air conditioner evaporates condensed water and discharges the moisture through the hot air outlet. But in some cases, it is possible that the unit is not to condensate water evaporation, then the internal water tank is full, the FULL lamp will illuminate and unit will stop running.
  • Page 34 Air Filter Cleaning If the air filter is blocked by the accumulation of a large amount of dust, the volume of the air flow will be reduced. Clean the filter once every two weeks. Open and clean the air filter: •...
  • Page 35: Specifications

    SPECIFICATIONS Weight 27.5 kg Product Dimension (L x W x H) 325 x 295 x 702 mm Cooling Capacity 3500W Current 5.0A Power Input 1050W Indoor Air Volume 360m Discharge 3.8MPa Max pressure Suction 1.3MPa Inside 65dB(A) Sound Power Outside Rated Voltage 220-240V ~ Rated Frequency...
  • Page 36: Troubleshooting

    TROUBLESHOOTING Error Codes: E1 Error of the coil temperature sensor E2 Error of indoor temperature sensor Anti-freezing protection: temperature of the coil is too low and the whole AC is off. When temperature increase to 8- or more the appliance is working correctly again Problem Check What to do...
  • Page 37 NOTES...
  • Page 38 NOTES...
  • Page 40 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
