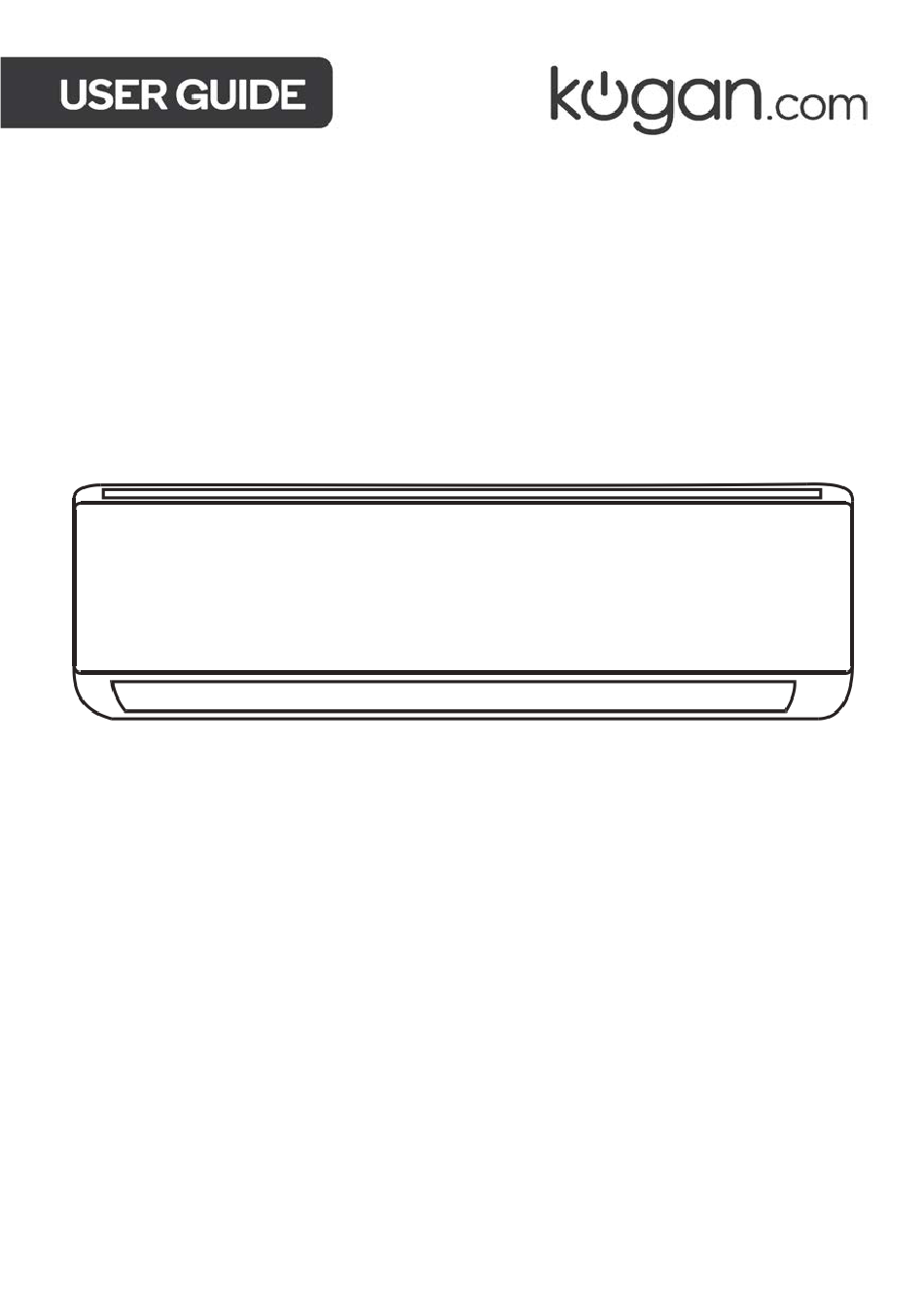

KOGAN SMARTERHOME
TM
INVERTER SPLIT SYSTEM
(8.2KW REVERSE CYCLE AIR CONDITIONER)
KASHSAC80TA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMARTERHOME KASHSAC80TA and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan SMARTERHOME KASHSAC80TA

Summary of Contents for Kogan SMARTERHOME KASHSAC80TA

  • Page 1 KOGAN SMARTERHOME INVERTER SPLIT SYSTEM (8.2KW REVERSE CYCLE AIR CONDITIONER) KASHSAC80TA...
  • Page 2 Safety & warnings Overview Installation Before first use Connect to SmarterHome Google Home control Amazon Alexa control Operation Cleaning & care Troubleshooting Notes...

  • Page 3: Safety And Warnings

    SAFETY & WARNINGS SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER The air conditioner must be installed by professional or qualified persons. • Read this guide before installing and using the appliance. • During the installation of the indoor and outdoor units, access to the working area should be forbidden to children.
  • Page 4 • Have repairs carried out only by an authorised technician recommended by Kogan.com. Incorrect repair could expose the user to the risk of electric shock, etc. • If the air conditioner is not being used for an extended period, unhook the automatic switch.

  • Page 5: Safety Rules And Prohibitions

    Do not bend, tug or compress the power cord since this could damage it. Electrical shocks or fire are probably due to a damaged power cord. • If the power cord shows any sign of damage, cease use immediately and contact help.Kogan.com for support. • Do not use extensions cords or power boards. •...
  • Page 6 OVERVIEW Indoor Unit & Outdoor Unit Mounting Plate Air filter Air inlet Front panel Emergency button Air outlet Air deflector and flap Refrigerant connecting pipe Air inlet Wiring cover Air outlet Drainage pipe Connection wiring Valve protective cover Gas valve (Low pressure valve) Liquid valve (High pressure valve)
  • Page 7 Note: This figure shown may be different from the actual object. Please take the latter as the standard. Indoor Display Function Indicator for timer, temperature and error code Lights up during timer operation. Sleep mode The shape and position of switches and indicators may be different according to the model, but their function is the same.
  • Page 8 Remote Control Display Symbol Function Battery indicator Auto mode Cooling mode Dry mode Fan only mode Heating mode ECO mode Timer...
  • Page 9 Temperature indicator Fan speed: Auto/ low/ low-mid/ mid/ mid-high/ high Mute TURBO function Up-down auto swing Left-right auto swing SLEEP function Health function I FEEL function Signal indicator Gentle wind Child-Lock Display ON/OFF Anti-mildew The display and some functions of the remote control may vary according to the model.
  • Page 10 Button Function To turn the air conditioner ON/OFF To increase temperature or Timer setting hours. To decrease temperature or Timer setting hours To select the mode of operation (AUTO, COOL, MODE DRY, FAN, HEAT). To activate/deactivate the ECO function. Long press to activate/deactivate the 8-heating function (depending on models).

  • Page 11: Installation

    INSTALLATION Important Considerations • The air conditioner must be installed by licenced professional and the Installation manual is used only for the professional installation personnel! The installation specifications should be subject to our after-sale service regulations. • Take care, when filling the combustible refrigerant, incorrect handling may cause serious injury or injuries to human body and objects.
  • Page 12 Where: Table 1 - Maximum charge (kg) Floor area (m) Category (kg/m) 1.14 1.51 2.54 3.12 4.02 0.306 2.05 2.71 3.24 3.97 4.58 5.61 7.254 3.31 3.96 4.85 6.86 8.85 Table 2 - Minimum room area (m) Charge amount (M) (kg) Minimum room area (m) Category 1.224 1.83...
  • Page 13 3. Installation Safety • Refrigerant Leak Detector • Appropriate Installation Location Note: • The installation site should be well-ventilated. • The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free from open fire or welding, smoking, drying oven or any other heat source higher than 548 which easily produces open fire.
  • Page 14 Tools Required Vacuum Adjustable Screw Safety Spanner Pipe cutter pump wrench drivers glasses Torque Manifold Work Refrigerant Allen keys Spirit level wrench and gauges gloves scale Drill & Micron Flaring tool Hole saw Clamp on amp meter gauge drill bits Pipe Length and Additional Refrigerant Inverter Models 9K-12K...
  • Page 15 ON-OFF Models 9K-12K 18K-36K Capacity (Btu/h) Length of pipe with 5m/16ft 5m/16ft 5m/16ft 5m/16ft standard charge Maximum distance between indoor and 15m/49ft 15m/49ft 15m/82ft 15m/82ft outdoor unit Additional refrigerant 20g/m 15g/m 30g/m 25g/m charge Max. diff. in level between 5m/32ft 5m/32ft 5m/32ft 5m/32ft...

  • Page 16: Indoor Unit Installation

    INDOOR UNIT INSTALLATION Step 1: Select Installation location Ensure the installation complies with the installation minimum dimensions (Figure 1.) and meets the minimum and maximum connecting piping length and maximum change in elevation as defined in the System Requirements section. Air inlet and outlet will be clear of obstructions, ensuring proper airflow throughout the room.
  • Page 17 Step 2: Install Mounting Plate Take the mounting plate from the rear of the indoor unit. Ensure to meet the minimum installation dimension requirements as step 1, according to the size of the mounting plate, determine the position and stick the mounting plate close to the wall.
  • Page 18 Step 3: Drill Wall Hole A hole in the wall should be drilled for refrigerant piping, the drainage pipe and connecting cables. Determine the location of wall hole base on the position of mounting plate. The hole should have a 70mm diameter at least and a small oblique angle to facilitate drainage.
  • Page 19 Piping outlet Cable outlet Bending the connecting pipes with the port facing up as shown in the figure Take off the plastic cover in the pipe ports and take off the protective cover on the end of piping connectors. Check whether there is any sundry on the port of the connecting pipe and make ensure the port is clean.
  • Page 20 Indoor Outdoor The connector should be outdoor Step 5: Connect Drainage Hose Adjust the drainage hose (if applicable) In some model, both sides of the indoor unit are provided with drainage ports, you can choose one of them to attach the drainage hose.
  • Page 21 Step 6: Connect Wiring Choose the right cables size determined by the maximum operating current on the nameplate (refer to Dedicated Distribution Device and Wire for Air Conditioner table). Open the front panel of indoor unit. Use a screwdriver, open the electric control box cover, to reveal the terminal block. Unscrew the cable clamp.
  • Page 22 Using the insulating tape wrap the refrigerant pipes, connecting wires and drainage hose together tightly. Step 8: Mount Indoor Unit Slowly pass the refrigerant pipes, connecting wires and drainage hose wrapped bundle through the wall hole. Hook the top of the indoor unit on the mounting plate. Apply slight pressure to the left and right sides of the indoor unit, make sure the indoor unit is hooked firmly.
  • Page 23 OUTDOOR UNIT INSTALLATION Step 1: Select Installation Location Select a site that allows for the following: Do not install the outdoor unit near sources of heat, steam or flammable gas. Do not install the unit in too windy or dusty places. Do not install the unit where people often pass.
  • Page 24 Drainage joint Drainage hose Step 3: Fix Outdoor Unit According to the outdoor unit installation dimensions to mark the installation position for expansion bolts. Drill holes and clean the concrete dust and place the bolts. If applicable install 4 rubber stops on the hole before place the outdoor unit (Optional).
  • Page 25 Step 4: Install Wiring Use a Phillips screwdriver to unscrew wiring cover, grasp and press it down gently to remove it. Unscrew the cable clamp and take it down. According to the wiring diagram pasted inside the wiring cover, connect the connecting wires to the corresponding terminals and ensure all connections are firmly and securely.
  • Page 26 Step 5: Connecting Refrigerant Pipe Unscrews the valve cover, grasp and press it down gently to remove it (if the valve cover is applicable). Remove the protective caps from the end of valves. Remove the plastic cover in the pipe ports and check whether there is any sundry on the port of the connecting pipe and make ensure the port is clean.
  • Page 27 Step 6: Vacuum Pumping Use a spanner to remove the protective caps from the service port, low pressure valve and high-pressure valve of the outdoor unit. Connect the pressure hose of manifold gauge to the service port on the outdoor unit low pressure valve.

  • Page 28: Before First Use

    BEFORE FIRST USE Inspections Before Test Run Do the following checks before test run. Description Inspection method • Check whether the power supply voltage complies with specification. • Electrical safety Check whether there is any wrong or missing connection inspection between the power lines, signal line and earth wires.
  • Page 29 Test Run Turn on the power supply. Press the ON/OFF button on the remote control to turn on the air conditioner. Press the Mode button to switch the mode COOL and HEAT. In each mode set as below: • COOL-Set the lowest temperature •...
  • Page 30 CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’.
  • Page 31 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (the device beeps twice and the indoor unit display shows "CF" code). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing the "Display"...
  • Page 32 Ensure that the device is in pairing mode, with the example of indicator, and tap “Confirm light is rapidly flashing”. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
  • Page 33 Having trouble connecting? The prior steps detail the process for “EZ Mode” connection. If that does not work for your connection, we suggest trying it again, and if still no success, attempting the following method for AP Mode connection. Set device in AP pairing mode Set the device in pairing mode by pressing the "Display"...
  • Page 34 Follow the in-app prompts to continue AP Mode connection, which will pair your mobile phone to the device’s Wi-Fi hotspot to ensure a connection. This may be named “SL-KoganSmart”, “SmartLife-XXXX”, or another similar name. Note: If the Wi-Fi hotspot does not appear on your phone in the list of available networks, your device may not be set in AP Pairing Mode correctly.
  • Page 35 Still having trouble connecting? The prior steps detail the process for “AP Mode” connection. If that does not work for your connection, we suggest trying it again, and if still no success, attempting the following method for Bluetooth Mode connection. Set device in pairing mode Set the device in pairing mode by pressing the "Display"...
  • Page 36 You can see the connecting process, at the same time "PP","SA","AP" shining in turn on the indoor display. "PP" means "Searching the router”, "SA" means "connected to the router", "AP" means "connected to the server". Once the connection is completed, your device will appear on the screen. Press Done button to complete the process.
  • Page 37 Note: You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Google Home app From the home page of the Google Home app, select the “+” icon (top left corner, see arrow in the below screenshot) to access the ‘Add and manage’...
  • Page 38 Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 39 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
  • Page 40 AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Alexa app From the home page of the Alexa app, select the “ ” icon in the bottom-right and select “Skills &...
  • Page 41 Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 42 Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands.

  • Page 43: Operation

    OPERATION Note: Attempting to use the air conditioner under the temperature beyond the specified range may cause the air conditioner protection device to start and the air conditioner may fail to operate. Therefore, try to use the air conditioner in the following temperature conditions.
  • Page 44 Characteristics of heating operation (applicable to Heating pump) Preheating: When the heating function is enabled, the indoor unit will take 2~5 minutes for preheating, after that the air conditioner will start heating and blows warm air. Defrosting: During heating, when the outdoor unit frosted, the air conditioner will enable the automatic defrosting function to improve the heating effect.
  • Page 45 Replacement of Batteries Remove the battery cover plate from the rear of the remote control, by sliding it in direction as the arrow. Install the batteries according to the direction (+ and -) shown on the Remote Control. Reinstall the battery cover by sliding it into place. Use 2 AAA (1.5V) batteries.

  • Page 46: Cooling Mode

    DIP switch on position Function ˚C The display is adjusted in degree Celsius. ˚F The display is adjusted in degree Fahrenheit. Cool The display is adjusted in only cooling mode Heat The display is adjusted in cooling and heating mode Direct the remote control toward the Air conditioner.

  • Page 47: Dry Mode

    DRY MODE This function reduces the humidity of the air to make the room more comfortable. To set the DRY mode, press until appears in the display. An automatic function of pre-setting is activated. AUTO MODE Automatic mode. To set the AUTO mode, press until appears on the display.
  • Page 48 Child-Lock function Long press button together to active this function and do it again to deactivate this function. Under this function, no single button will active. TIMER function ---- TIMER ON To automatic switch on the appliance. When the unit is switch-off, you can set the TIMER ON. To set the time of automatic switch-on as below: Press button first time to set the switch-on...
  • Page 49 SWING function Press the button SWING to activate the louver, Press to activate the horizontal flaps to swing from up to down, Press again to stop the swing movement at the current angle. Press to active the vertical deflectors to swing from left to right. Press again to stop the swing movement at the current angle.
  • Page 50 SLEEP function Pre-setting automatic operating program. Press button to activate the SLEEP function and appears on the display. Press again to cancel this function. After 10 hours running in sleep mode, the air conditioner will change to the previous setting mode.
  • Page 51 ANTI-MILDEW function (Optional) Press button to activate the function, will appear on the display. Do it again to deactivate this function. After running COOL/ DRY for more than 30 minutes, you can operate this function, the unit will blow airflow for about 15 minutes to dry the inner parts to avoid mildew, then shuts off the unit.
  • Page 52 8˚C heating function (Optional) Long press button over 3 seconds to active this function and [8˚C] will appear on the remote display. Do it again to deactivate this function. This function will auto start the heating mode when the room temperature is lower than 8˚C and it will return to standby if the temperature reaches 9˚C.

  • Page 53: Cleaning And Care

    CLEANING & CARE Servicing Appliance shall be installed, operated and stored in a room with a floor area larger than 4m. The installation of pipework shall be kept to a minimum. The pipework shall be protected from physical damage and shall not be installed in an unventilated space if the space is smaller than 4m.
  • Page 54 Information on servicing: Checks to the area: Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
  • Page 55 Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt contact help.Kogan.com for support. The following checks shall be applied to installations using flammable refrigerants: •...
  • Page 56 Repairs to sealed components: • During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
  • Page 57 13. Leak detection methods: The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area). Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used.
  • Page 58 15. Decommissioning: Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.
  • Page 59 When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e., Special cylinders for the recovery of refrigerant).
  • Page 60 Cleaning the Unit <40˚C (104˚F) Wring it dry Gentle wipe the unit surface Tip: Wipe frequently to keep air conditioner clean and good appearance. Disassembly and assembly of filter • Grasp the raised handle on the filter by hand and then pull the filter out in the direction deviating from the unit, so that the upper edge of the filter is separated from the unit.
  • Page 61 Tip: When you find accumulated dust in the filter, please clean the filter in time to ensure the clean, healthy and efficient operation inside the air conditioner. Cleaning of inner air duct • First, loosen the knob on the middle of louver and bend the louver outwards to take it out.

  • Page 62: Troubleshooting

    TROUBLESHOOTING Malfunction Possible causes Power failure/plug pulled out. Damaged indoor/outdoor unit fan motor. Faulty compressor thermomagnetic circuit breaker Faulty protective device or fuses. The appliance does not operate Loose connections or plug pulled out. It sometimes stops operating to protect the appliance.
  • Page 63 Remote control is not close enough to indoor unit. The appliance does not respond to The batteries of remote control need to be remote commands replaced. Obstacles between remote control and signal receiver in indoor unit. Active DISPLAY function. The display is off Power failure Strange noises during operation.
  • Page 64 Basic parameters for Wi-Fi module Parameters Details Network frequency 2.400-2.4835GHz IEEE 802.11 b/g/n (channels 1-14, channels 1-13 for EU/AU, Standards of WLAN channels 1-11 for US/CA) Protocol stack support 1Py4/TCP/UDP/FITTPS/TLS/DNS Security support WEP/WPA/WPAWAE5128 Network type support STA/AP/STA+AP Max. RF Power 18.5 dbm Bluetooth frequency 2.402 - 2.480GHz...
  • Page 65 NOTES...
  • Page 68 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
