Kogan KASHSAC26UA User Manual

Split type wall mounted air-conditioner
Hide thumbs

Advertisement

Table of Contents

SPLIT TYPE WALL MOUNTED
AIR-CONDITIONER
KASHSAC26UA & KASHSAC72UA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KASHSAC26UA and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KASHSAC26UA

Summary of Contents for Kogan KASHSAC26UA

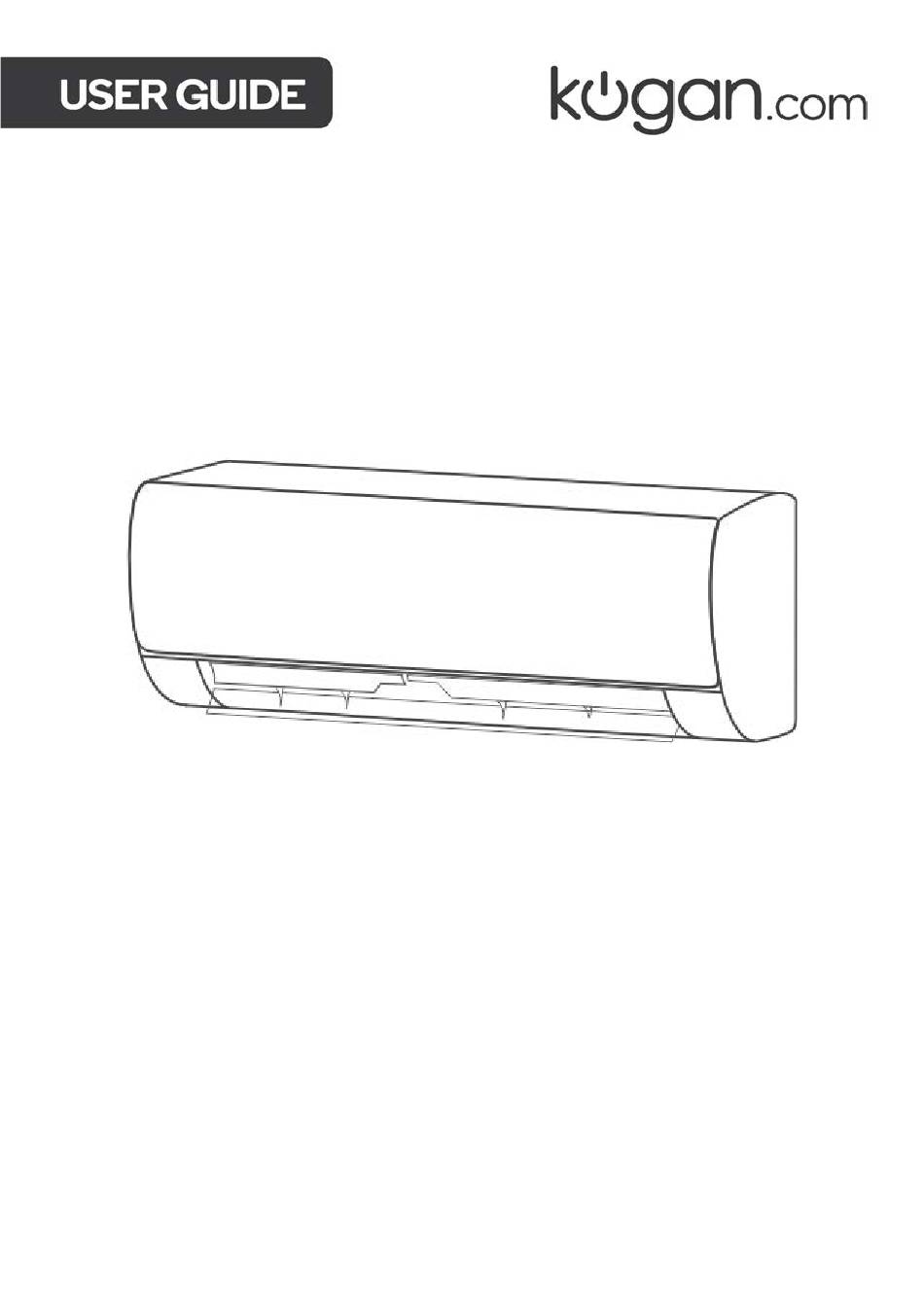

  • Page 1 SPLIT TYPE WALL MOUNTED AIR-CONDITIONER KASHSAC26UA & KASHSAC72UA...

  • Page 2: Table Of Contents

    Safety & Warnings Components Overview Installation Installing the AC Freedom App Operation Cleaning & Care Troubleshooting Notes...

  • Page 3: Safety & Warnings

    • The refrigerant cannot charge more than 1.7kg. • Do not use any method to accelerate the defrosting process, or to clean, other than those recommended by Kogan.com. • Do not pierce or burn the air conditioner. Check the refrigerant pipeline regularly to ensure it is not damaged.
  • Page 4 • Do not allow water or any other liquid to touch the air conditioner or remote control. Contact with liquids may result in short-circuiting. • If the power cord is damaged, stop use immediately and contact help.Kogan.com for assistance. • Do not cut off the main power when operating.
  • Page 5 • Note the specifications on the fuse printed on the circuit board. WARNING: Immediately stop operation, cut off the power supply, and contact help.Kogan.com in the following situations: • If there are any harsh sounds or unpleasant odours during operation.
  • Page 6 • If refrigerant leakage affects the performance of the air conditioner, stop use immediately. The air conditioner must be vacuumed, then contact help.Kogan.com for assistance. • When using an electric drill to make holes in the wall, first check whether there is a pre- buried pipeline for water, electricity, and gas.
  • Page 7 Air conditioner positioning requirements • Do not install the air conditioner near heat sources or gas leakages, nor in areas with inflammable or explosive gases. • Avoid installing in places subject to strong artificial electric/magnetic fields. • Avoid installing in places subject to noise and resonance. •...
  • Page 8 This symbol shows that the operation manual Caution should be read carefully. This symbol shows that a service personnel Caution should be handling this equipment with reference to the installation manual This symbol shows that information is available Caution such as the operating manual or installation manual.
  • Page 9 Otherwise, it may cause short circuit. If the supply cord is damaged, cease use immediately and contact help.Kogan.com. Don't cut off main power switch during operating or with wet hands. It may cause electric shock.
  • Page 10 Don't use liquid or corrosive cleaning agent wipe the air conditioner and sprinkle water or other liquid either. Doing this may cause electric shock or damage to the unit. Don't attempt to repair the air conditioner by yourself. Incorrect repairs may cause fire or explosion. Contact a qualified service technician for all service requirements.
  • Page 11 This product contains fluorinated greenhouse gases Refrigerant leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to [675].
  • Page 12 Caution Don't use liquid or corrosive cleaning agent wipe the air conditioner and sprinkle water or other liquid either. Otherwise, the cooling or heating capacity will be reduced. Don't stand on the top of the outdoor unit or place heavy things on it. This may cause personal injuries or damage the unit.

  • Page 13: Components

    COMPONENTS Indoor unit Indoor Unit (x1) Remote Controller (x1) Batteries (x2) User Guide Drainpipe (x1) Outdoor unit Outdoor Unit (x1) Connecting pipe (x2) Plastic Strap (x1) Pipe Protection Ring (x1) Luting (putty) (x1)

  • Page 14: Overview

    OVERVIEW Indoor Unit There are two kinds of Indoor unit. The images below are for illustrative purposes only and the actual product may differ. Fig A Air inlet Force switch Air inlet grille Panel Air filter Pipe protection ring Air louver Air outlet Air vent Fig B...
  • Page 15 Outdoor Unit Air inlet Power Cable Air outlet grille Connecting pipe Drain house Air outlet Note: All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different. They are subject to change without notice for future improvement.
  • Page 16 Remote control Note: The remote control will show all symbols on the display when the air conditioner is turned on after which only the symbols relating to the current operation will be left illuminated.
  • Page 17 Increase/decrease buttons ( Each press of the increase button increases the set temperature by 1°C. Each press of the decrease button decreases the set temperature by 1°C. TURBO Under the COOL or HEAT mode, the turbo function quickens the rate the air conditioner reaches the set temperature.
  • Page 18 SPEED Press this button to cycle through the fan speeds. HIGH AUTO DISPLAY Press this button to turn the display ON/OFF. iFEEL Press this button to set the temperature of the air conditioner to the ambient temperature. Press this button again to change the temperature back to its preset. TIMER The air conditioner can be set to automatically turn on/off after a pre-determined period.

  • Page 19: Installation

    INSTALLATION Important Notices • The air conditioner must be installed by a licenced professional according to the national wiring rules and this manual. • Refrigerant leak test must be made after installation. • To move and install air conditioner to another place, consult a licenced professional. Unpacking Inspection •...
  • Page 20 • When installing or repairing the air conditioner and the connecting line is not long enough, the entire connecting line shall be replaced with the connecting line of the original specification; extension is not allowed. • Use new connection pipe, unless re-flaring the pipe. Requirements For Installation Position •...
  • Page 21 Requirements of the mounting structure. • The mounting rack must meet the relevant national or industrial standards in terms of strength with welding and connection areas rustproofed. • The mounting rack and its load carry surface shall be able to withstand 4 times or above the weight of the unit or 200kg, whichever is heavier.
  • Page 22 Other Regions Rated Current of Appliance (A) Nominal Cross-Sectional Area (mm >3 and ≤6 0.75 >6 and ≤10 >10 and ≤16 >16 and ≤25 >25 and ≤32 >32 and ≤40 The size of the interconnection cord, power cable, fuse and switch needed is determined by the maximum current of the unit The maximum current is indicated on the nameplate located on the side panel of the unit.
  • Page 23 Others • The connection method of the air conditioner and the power cable and the interconnection method of each independent element shall be subject to the wiring diagram affixed to the machine. • The model and rating value of the fuse shall be subject to the silkscreen (label) on the corresponding controller or fuse sleeve.
  • Page 24 The wall for installation of the indoor unit shall be hard and firm, to prevent vibration. Use the "+" type screw to fasten the mounting bracket, horizontally mount the mounting plate on the wall and ensure it is level and straight. Pull the mounting plate by hand after the installation, to confirm whether it is solid.
  • Page 25 Route of pipeline Connecting pipe, drain hose and cables Outlet material Fig 1 preparation Connecting pipe, drain hose and cables Fig 2 Depending on the position of the unit, the piping may be routed sideway from the left or the right (Fig 1) or vertically from the back (Fig 2) (depending on the pipe length of the indoor unit).
  • Page 26 Indoor unit pipe Taper nut connecting pipe Spanner Torque wrench Fig 3 Tightening torque table The size of pipe ( Æ mm) Torque (N.M) 6 - 6. 35 15~25 9 - 9. 52 35~40 12 - 12. 7 45~60 15. 88 73~78 9.
  • Page 27 Wrap the Piping Connecting pipe drain hose and cables Plastic Strap Use the insulation sleeve to wrap the joint part of the indoor unit and the connection pipe. Use the insulating material to pack and seal the insulation pipe, to prevent generation of condensate water on the joint part. Connect the water outlet to the drainpipes ensuring the connection pipe, cables and the drain hose are straight.
  • Page 28 Interconnection cord installation Connecting interconnection cord of indoor unit: Open the panel, remove the screw on the wiring cover and then remove the cover. Route the interconnection cord through the cable-cross hole at the rear of the indoor unit and then pull it out from the front side. (Some models do not have a signal cable.) Remove the wire clip and connect the interconnection cord to the wiring terminal according to the wiring diagram;...
  • Page 29 Notes: • The following wiring diagrams are based on the most common air conditioner configurations. Some air conditioner installation may require unique wiring which aren’t show in the below diagrams. • The diagrams are for reference only. If the air conditioner differs from what is shown, refer to the detailed wiring diagram adhered to the unit.
  • Page 30 Post installation check Ensure the screws are properly secured and there is no risk of loosening. Connector of display board whether put in the right place and do not touch the terminal board. Control box cover whether cover tightly. Installation of Outdoor Unit Air inside Space to the obstruction 50cm Above...
  • Page 31 Left installation foot Right installation foot Air inlet Air outlet Installation outdoor unit bolt Outdoor Unit Size of Shape A (mm) B (mm) W1 (W2)xHxD (mm) 665 (710) x 420 x 280 660 (710) x 500 x 240 730 (780) x 545 x 285 709 (761) x 536 x 280 750 (804) x 550 x 285 800 (860) x 545 x 315...
  • Page 32 Stop valve Taper nut Connection pipe Liquid side pipe Gas side pipe Spanner Stop valve cover Amount of Length of refrigerant for the Added or reduced refrigerant connection pipe unit CC≤12000Btu Reduce 20g/m ≤ 1Kg <3M CC≥18000Btu Reduce 40g/m ≤ 2Kg 3-5M Not needed CC≤12000Btu...
  • Page 33 Wiring Connection E-parts cover Loosen the screws and remove the E-parts cover from the unit. Connect the cables respectively to the corresponding terminals of the terminal board of the outdoor unit (see the wiring diagram) and if there are signals connected to the plug, use a butt joint.
  • Page 34 Connector If there is connector, connect directly. Notes: • The following wiring diagrams are based on the most common air conditioner configurations. Some air conditioner installation may require unique wiring which aren’t show in the diagrams. • The diagrams are for reference only. If the air conditioner differs from what is shown, refer to the detailed wiring diagram adhered to the unit.
  • Page 35 Pressure gauge Compound meter – 76cmHg Manifold valve Handle Lo Handle Hi Charge hose Charge hose Vacuum pump Stop valve Stop valve (liquid valve) (gas valve) Outdoor condensation drainage (Heat pump type only) Chassis Outdoor drain elbow When the unit is heating, the condensing water and defrosting water can be drained through the drain house.
  • Page 36 Installation: Install the outdoor drain elbow in Æ25mm hole on the base plate and connect the drain hose to the elbow, so that the waste water formed in the outdoor unit can be drained out properly. Post installation check and Test Operation Electrical Safety Check If the supply voltage is as required.
  • Page 37 Test Operation Test Operation preparation: • Verify that all piping and connection cables are well connected. • Confirm that the valve at the gas side the liquid-side are fully open. • Connect the power cable to an independent power socket. •...

  • Page 38: Installing The Ac Freedom App

    INSTALLING THE AC FREEDOM APP AC Freedom App Scan the following QR code to download the AC Freedom App. For IOS For Android Follow the prompts within the App to connect your air conditioner to your WIFI network and pair it with the App.

  • Page 39: Operation

    OPERATION Operating Temperature Range Within the following temperature ranges, the air conditioner may stop running and other anomalies may arise. >43˚C (Apply to T1) Outdoor Cooling >52˚C (Apply to T3) Indoor <18˚C >24˚C Outdoor Heating <-7˚C Indoor >27˚C • When the temperature is too high, the air conditioner may activate the automatic protection device and may be shut down.
  • Page 40 Notes for turning off When the air conditioner is turned off, the main controller will automatically decide whether to stop immediately or after running for dozens of seconds with lower frequency and lower air speed. Emergency Operation Force switch • If the remote controller is lost or broken, use force switch button to operate the air conditioner.
  • Page 41 Specific Caution Cable 1 Cable 2 Terminal board Connector Open front panel of the indoor. The connector cannot touch the terminal board and is positioned as shown in Fig.

  • Page 42: Cleaning & Care

    CLEANING & CARE • Before cleaning or performing any maintenance on the air conditioner, it must be shut down and the electricity must be cut off for more than 5 minutes, otherwise there may be a risk of electric shocks. •...
  • Page 43 Clean the filter Remove the air filter Use both hands to open the panel from both ends of the panel in accordance with the direction of the arrow. Release the air filter from the slot and remove it. The air filter is located above the fuselage. Remove it facing upward. Clean the Air Filter Use a vacuum cleaner or water to rinse the filter and if the filter is very dirty (for example, with greasy dirt), clean it with warm water (below 45˚C) with mild detergent and then put...
  • Page 44 Check whether there is damage to the mounting bracket of the outdoor unit and if any, please contact help.Kogan.com for support. Maintain after using Cut off the power source of the air conditioner, turn off the main power switch and remove the batteries from the remote controller.
  • Page 45 Maintenance Notice For maintenance, contact your local licenced air conditioner professional. Maintenance by unqualified person may cause dangers. Feed air conditioner with R32 refrigerant and maintain the air conditioner in strictly accordance with the requirements. Qualification requirements of maintenance personnel Special training additional to usual refrigerating equipment repair procedures is required when equipment with flammable refrigerants is affected.
  • Page 46 At all times the ensure proper maintenance and service is carried out. If in doubt, contact help.Kogan.com for support. The following checks shall be applied to installations using flammable refrigerants: •...
  • Page 47 Inspection of Cable Check the cable for wear, corrosion, overvoltage, vibration and check if there are sharp edges and other adverse effects in the surrounding environment. During the inspection, the impact of aging or the continuous vibration of the compressor and the fan on it should be taken into consideration.
  • Page 48 The refrigerant should be returned to the appropriate storage tank. The system should be blown with oxygen free nitrogen to ensure safety. This process may need to be repeated for several times. This operation shall not be carried out using compressed air or oxygen.
  • Page 49 If possible, the refrigerating system should be vacuumized. If the vacuum state can't be reached, you should extract the refrigerant in each part of the system from many places. Before the start of the recovery, you should ensure that the capacity of the storage tank is sufficient.
  • Page 50 leakage of the refrigerant and the fire caused by it. If you have any question, please consult the manufacturer. The recovered refrigerant shall be loaded in the appropriate storage tanks, attached with a transporting instruction and returned to the refrigerant manufacturer.

  • Page 51: Troubleshooting

    TROUBLESHOOTING Caution Do not repair the air conditioner by yourself as wrong maintenance may cause electric shock or fire or explode, please contact the authorized service centre and let the professionals conduct the maintenance and checking the following items prior to contacting for maintenance can save your time and money.
  • Page 52 • Excessive accumulation of dust on filter, blocking at air inlet and outlet and the excessively small angle of the louver blades all will affect the cooling and heating effect. Please clean the filter, remove the obstacles at the air inlet and outlet and regulate the angle of the louver blades.
  • Page 53 Immediately stop all operations and cut off the power supply, contact help.Kogan.com in the following situations. ▲ Hear any harsh sound or smell any awful odour during running.

  • Page 54: Notes

    NOTES...
  • Page 56 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...

This manual is also suitable for:

Kashsac72ua

Table of Contents
