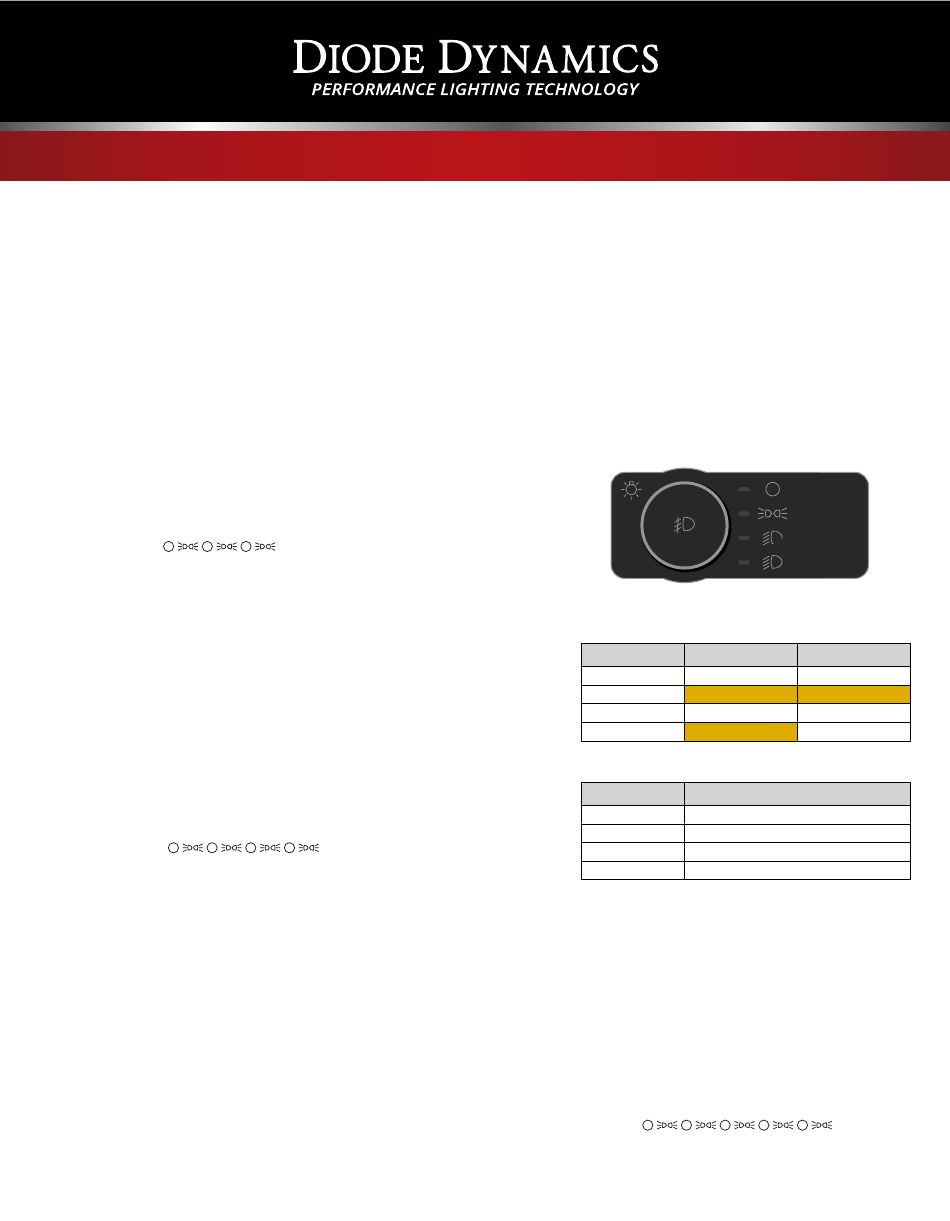

Diode Dynamics DD5167 Programming Manual

Keep this programming guide in your glove box to reference when programming your headlights.
Programming Tips:
• Parking in front of a window or reflective wall makes it easier to see what's happening!
• While it seems like a lot of information, the programming method follows a standard theme. After just a few minutes, you'll get the hang of it!
Please contact Diode Dynamics with any questions.
• Always start with the vehicle off, and with headlight switch turned to the OFF position. Sometimes, when you enter or exit the truck,
lights will stay on for 10-15 seconds. Wait until all of these lights have turned off.
• To enter any programming mode, you must flash your lights off and back on a specific number of times. If you forgot the count,
switch the lights off and wait 10 seconds, then start again.
• Some programming modes use the high beam stalk to toggle through options. Due to the factory high beam functionality, the high beam
may stay on after you reach your desired configuration, even after switching the light switch to OFF. If this is the case, wait 10-15 seconds until
the high beams turn off by themselves. If you attempt to turn the high beams off with the stalk, the configuration will not be properly saved.
MODE 3: DRL Color and Style
1. Turn all lights off, including off-road switch (if applicable).
2. Quickly toggle the headlight dial between OFF and PARK three times, leaving it on
park the third time. (
3. The DRL will flash three times to indicate you have entered programming mode 3.
The current configuration will be displayed.
4. Using the stalk on your steering wheel, flash your high beam to cycle through
DRL styles. Each time you cycle to the next option, the DRL will flash three times,
and then display your selection.
5. When you've reached the desired DRL style, turn the headlight switch off.
If the high beams stay on, wait 10-15 seconds for them to shut off automatically.
When all lights have shut off, the configuration will be saved and you have exited
programming mode. Repeat this process to select a new configuration.
MODE 4: Turn Signal Style
1. Turn all lights off, including off-road switch (if applicable).
2. Quickly toggle the headlight dial between OFF and PARK four times, leaving it on
park the fourth time. (
3. The DRL will flash four times to indicate you have entered programming mode 4.
The current configuration will be displayed.
4. Using the stalk on your steering wheel, flash your high beam to cycle through turn signal styles. Each time you cycle to the next option, the DRL will
flash three times, and then begin flashing in the style you selected.
NOTE: For style 2 and 3, the outer DRL does not blink with the turn signal. For these styles, the outer DRL will dim during the day while the turn signal
is activated.
5. When you've reached the desired turn signal style, turn the headlight switch off. If the high beams stay on, wait 10-15 seconds for them to
shut off automatically. When all lights have shut off, the configuration will be saved and you have exited programming mode. Repeat this process
to select a new configuration.
MODE 5: Welcome Sequence On or Off
1. Turn all lights off, including off-road switch (if applicable).
2. Quickly toggle the headlight dial between OFF and PARK five times, leaving it on park the fifth time. (
3. The DRL will flash five times to indicate you have entered programming mode 5. The current configuration will be displayed.
Ford F - 150 Elite Headlight Programming Guide
)
)
CONFIGURATION OUTER DRL COLOR
1 (default) White
2 Amber
3 White
4 Amber
TURN SIGNAL STYLE
1 (default) Outer DRL blinks with sequential turn bar
2 Outer DRL does not blink, static turn bar
3 Outer DRL does not blink, sequential turn bar
4 Outer DRL blinks with static turn bar
See back for further instructions.

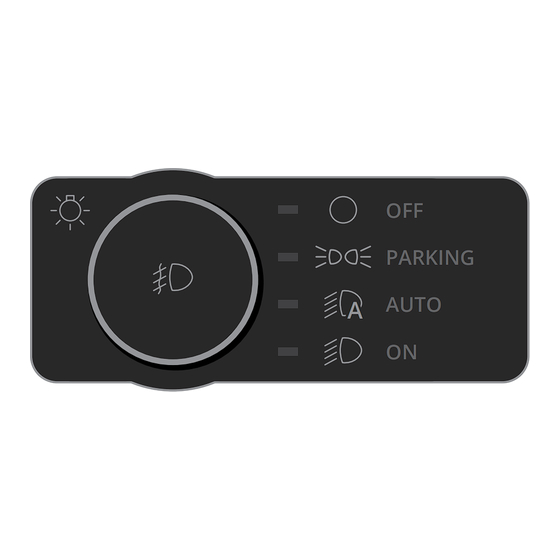

OFF
PARKING
AUTO
A
ON
DRL BAR COLOR
White
Amber
OFF
OFF
EFFECT
)
