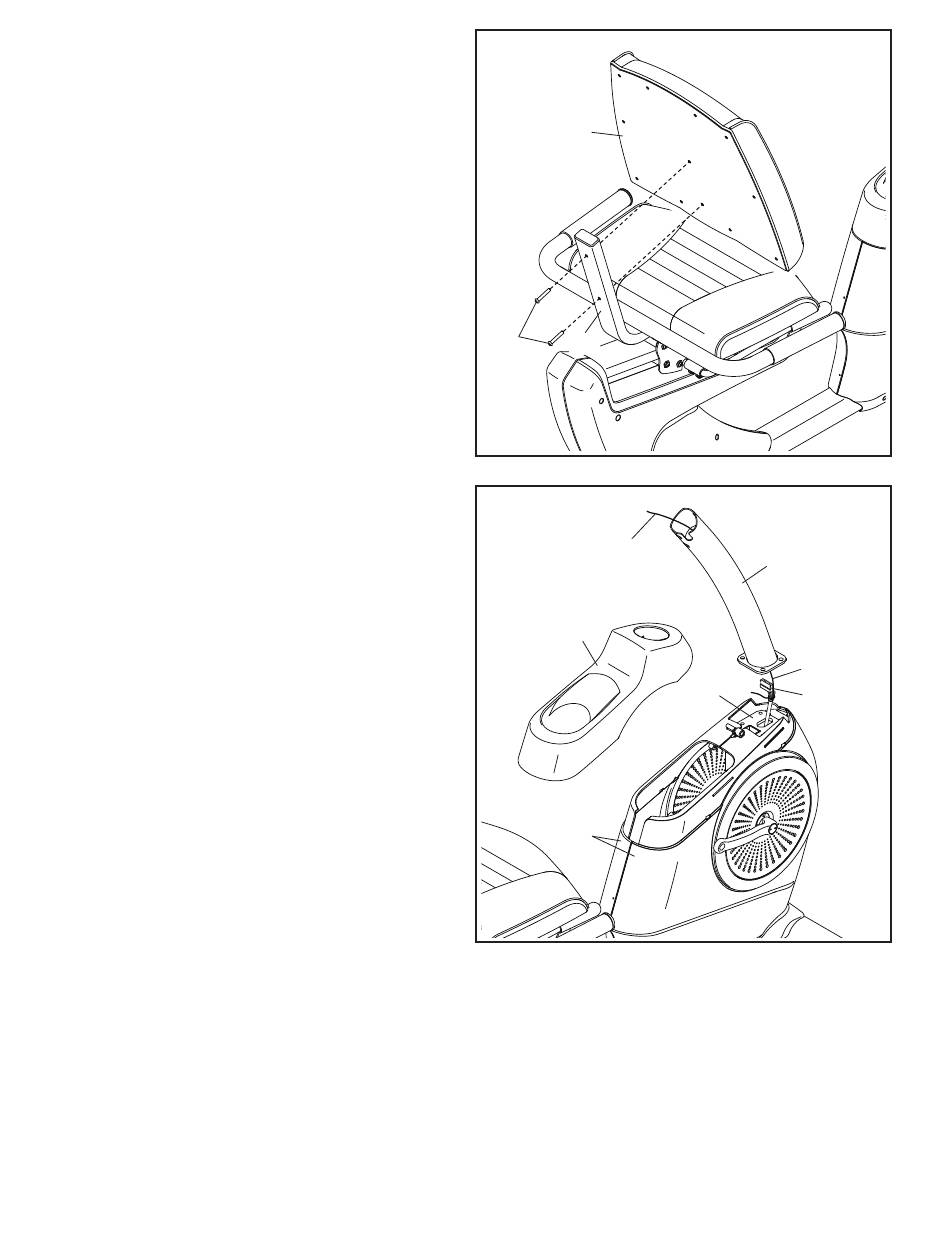

8. Orient the Backrest (11) as shown.
Attach the Backrest (11) to the Backrest Frame
(8) with two M6 x 40mm Screws (27).
9. Remove the Accessory Tray (5) from the Left
and Right Front Shields (57, 58). Set the
Accessory Tray aside. Tip: It may be necessary
to use a standard screwdriver to release the
tabs on the Accessory Tray.
Have a second person hold the Upright (4) near
the Frame (1).
Locate the wire tie (A) inside the Upright (4). Tie
the lower end of the wire tie to the Main Wire
(77). Then, pull the other end of the wire tie
upward until the Main Wire is routed through the
Upright.
Tip: To prevent the Main Wire (77) from falling
into the Upright (4), secure it to the Upright
with the wire tie (A).
8
11
8
27
9
A
5
57, 58
9
4
A
1
77
