HCD1010R/N, HCD1410R/N,
HMD1010R/N, HMD1410R/N,
HCF1010R/N, HCF1410R/N,
HMF1010R/N, HMF1410R/N
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide
carefully before you begin your installation.
Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301

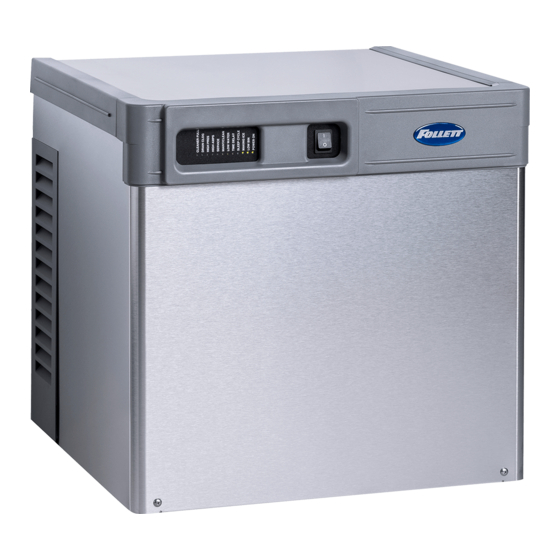

Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
www.follettice.com
Horizon Elite™ 1010/1410 Ice Machines
Serial Number L60418 to L82637
Please visit www.follettice.com/technicaldocuments
for the Operation and Service manual for your unit.
(Remote Condensing)
User Guide
Installation and Service Videos:
www.follettice.com/servicevideolibrary
1
01252592R03

Advertisement

Table of Contents
loading

Related Manuals for Follett L60418

Summary of Contents for Follett L60418

  • Page 1 If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process.

  • Page 2: Specifications

    § 3/8" OD push-in water inlet (connection inside machine) - 3/8" OD tubing required. § Water shut-off recommended within 10 feet (3 m). § Follett recommends installation of Follett water filter system (part# 00130286) in ice machine inlet water line. Flush drain plumbing §...
  • Page 3 Minimum 8" radius 2 ft. x 1" OD 3/4" barb x 3/4" FPT 2 ft. x 1" OD silicone tubing 3/4" MPT x 1" slip silicone tubing 1" PVC Drain 3/4" barb x 3/4" FPT 3/4" MPT x 1" slip 1"...

  • Page 4: Ice Production

    Ambient Evaporator unit Air temperature 100 F/38 C max. 50 F/10 C min. Water temperature 90 F/32 C max. 45 F/7 C min. Water pressure 70 psi max. (483 kPa) 10 psi min. (69 kPa) Condenser unit Air temperature 120 F/49 C max. –20F/–29C min.

  • Page 5: Dimensions And Clearances

    Dimensions and clearances § Entire front of ice machine must be clear of obstructions/connections to allow removal. § 1" (26 mm) clearance above ice machine for service. § 1" (26 mm) minimum clearance on sides. § The intake and exhaust air grilles must provide at least 250 sq in (1615 sq cm) of open area. §...
  • Page 6 Condensing unit 1010/1410 single phase (Tecumseh) 1410 three phase (Larkin) 1010 three phase (Tecumseh) Horizon Elite 1010 series Horizon Elite 1410 series W1 Width 36.25" (91.4 cm) – AJA7490ZXDPN and 36.25" (90.1 cm) – single phase (Tecumseh) 37.75" (95.9 cm) – three phase (Larkin) AWA9490ZXTPN 38.10"...

  • Page 7: Operation

    Cleaning of the condenser can usually be performed by facility personnel. Cleaning of the icemaker system, in most cases, should be performed by your facility’s maintenance staff or a Follett authorized service agent. Regardless of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed according to the schedule below.
  • Page 8 Fig. 2 2. Follow the directions on the SafeCLEAN Plus packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN Plus solution. Use 100 F (38 C) water. 3. Using a 1 quart (1L) container, slowly fill cleaning cup until CLEANER FULL light comes on. Do not overfill.
  • Page 9 Fig. 5 7. Disconnect coupling as shown. Fig. 6 8. Using disposable foodservice grade gloves, insert dry SaniSponge cleaning sponge. 9. Insert SaniSponge cleaning sponge soaked in SafeClean Plus (from Step 4). 10. Push both SaniSponge cleaning sponges down ice transport tube with supplied pusher tube.
  • Page 10 Fig. 8 12. Reconnect coupling. Press power switch ON. Ice pushes SaniSponge cleaning sponges through ice transport tube. Fig. 9 13. Place a sanitary (2 gal. or larger) container in bin or dispenser to collect SaniSponge cleaning sponges and ice for 10 minutes. 14.
  • Page 11 Wiring diagram, evaporator unit Gearmotor data Resistance of windings 115 vac gearmotor (Bison): Gearmotor current 2.8A @ 115 V Gearmotor torque-out (high amp) trip point: 5.6A White to Black: 3Ω White to Red: –3Ω Red to Black: 6Ω Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
  • Page 12 1010 Single-phase condensing unit wiring diagram (Tecumseh AJA7490ZXDPN) FAN 1 FAN 2 COMPRESSOR CONTACTOR COIL see note A RECEIVER TERMINAL HEATER BOARD HEATER THERMOSTAT POWER SUPPLY 230-60-1 POTENTIAL RELAY see note B COMPRESSOR CONTACTOR NC AUXILIARY SWITCH CRANK CASE HEATER COMPRESSOR CONTACTOR COMPRESSOR...
  • Page 13 1010 Single-phase condensing unit wiring diagram (Tecumseh ASFR9510ZNAMC1) Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
  • Page 14 1410 Single-phase condensing unit wiring diagram (Tecumseh ASFS9516ZNAMC1) Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
  • Page 15 1010 Three-phase condensing unit wiring diagram (Tecumseh ASFR9511ZFAMC1) Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
  • Page 16 3-phase condensing unit wiring diagram (Larkin) Horizon Elite 1010/1410 Ice Machines (Remote Condensing)

  • Page 17: Refrigeration System

    Refrigeration system 1010 - Refrigerant pressure data Air-cooled condensers (air) 60 F/16 C 70 F/21 C 80 F/27 C 90 F/32 C 100 F/38 C Pressure (psig) discharge/suction 202/33 229/35 255/37 275/38 295/39 1410 - Refrigerant pressure data Air-cooled condensers (air) 60 F/16 C 70 F/21 C 80 F/27 C...

  • Page 18: Refrigeration Charge

    Note: Condensing unit shipped with 0.5 lb of R404A charge. Refrigerant replacement requirements 1. Non-contaminated refrigerant removed from any Follett refrigeration system can be recycled and returned to the same system after completing repairs. Recycled refrigerant must be stored in a clean, approved storage container.

  • Page 19: Troubleshooting

    Troubleshooting Ice machine disposition Possible causes Corrective action Legend: ON or OFF FLASHING Ice machine is in running 1. Defective compressor. 1. Replace compressor. condition but not making ice. 2. Defective start relay. 2. Replace start relay. 3. Defective start capacitor. 3.
  • Page 20 Warranty Registration and Equipment Evaluation Thank you for purchasing Follett equipment. Our goal is to earn your complete satisfaction by delivering high-value products and services backed by outstanding customer and technical support. Please review the installation instructions thoroughly. It is important that the installation be performed to factory specifications so your equipment operates at its maximum efficiency.
