HCD/HMD/HCF/HMF1010RBT, HCD/HMD/HCF/HMF1410RBT,
HCD1010NBT, HMD1010NBT, HCD1410NBT, HMD1410NBT
(See model number configurator on page 2 for details.)
After Serial Number L82638

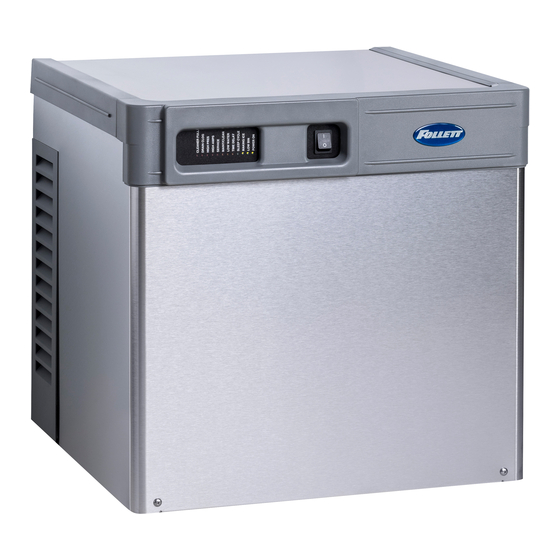

Horizon Elite
™
for Ice Storage Bin Top-mount Applications
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Ice Machine Installation Instructions
remote condensing
01113315R02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett Horizon Elite HCD1010RBT
Summary of Contents for Follett Horizon Elite HCD1010RBT
- Page 1 Horizon Elite Ice Machine Installation Instructions ™ for Ice Storage Bin Top-mount Applications HCD/HMD/HCF/HMF1010RBT, HCD/HMD/HCF/HMF1410RBT, HCD1010NBT, HMD1010NBT, HCD1410NBT, HMD1410NBT (See model number configurator on page 2 for details.) After Serial Number L82638 remote condensing 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
- Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
- Page 3 Read and complete the following 8 installation steps Unpack Site preparation Bin preparation Docking assembly Ice transport tube External connection Internal connection Front cover BIN • TOP-MOUNT remote condensing...
-
Page 4: Unpack Ice Machine
Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ BIN • TOP-MOUNT remote condensing... -
Page 5: Prepare The Installation Site
• 10–70 psi (69–483 kpa) • 45–90 F (7–32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable federal, state, and local codes Drain ➌... -
Page 6: Before Proceeding
Bin preparation Prepare the bin. Bin top preparation Bin top preparation — – ˜ – • Remove protective tape from ➊ • Apply gaskets gaskets ➋ • Install shuttle actuator through bin top and secure with locking nut ➌ BEFORE PROCEEDING Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. - Page 7 Docking assembly Install the docking assembly. Docking assembly 2" (50,8 mm) 1.88" (47,8 mm) ➋ ➊ 3/8˝ ∅ 1" (25,4 mm) high pressure Stub Typ line 3.38" (86 mm) ➊ 1010, 1410: 5/8" ∅ low pressure line • Mount docking assembly ➊...
-
Page 8: Ice Transport Tube
Ice transport tube Install the ice transport tube. ➋ Hot Water 160 F (71 C) ➊ ➌ • Slide insulation onto ice transport tube • Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➊... -
Page 9: External Connections
External connections Connect utilities to docking assembly. Refrigerant lines Water and drain ➊ ➊ ➋ ➌ Minimum 8" ➏ radius 2 ft. x 1" OD silicone tubing • Braze supplied quick-connect lines onto stub-ins ➊ 3/4" barb x 3/4" FPT ➍... -
Page 10: Internal Connections
Internal connections Connect docking assembly to ice machine. Ice transport tube installation Water line ➋ ➊ ➋ ➊ • Slide ice machine into docking assembly • Insert potable water line into valve ➊ ensuring that drain tube is fully seated on barbed drain fitting ➊... - Page 11 Power cord TDS switch HIGH CLEAN • Position plate into opening and secure • Set the TDS switch on the electrical box: with supplied screw HIGH: for extended service life LOW: for low-scale water BIN • TOP-MOUNT remote condensing...
-
Page 12: Front Cover
Ice machine MUST be sanitized prior to operation! Consult Operation and Service Manual provided with ice machine for sanitizing instructions. Maestro, Micro Chewblet, Vision, Harmony, Ice Manager, Horizon, Horizon Elite are trademarks of Follett Products LLC. Chewblet, RIDE, Follett are registered trademarks of Follett Products LLC.
