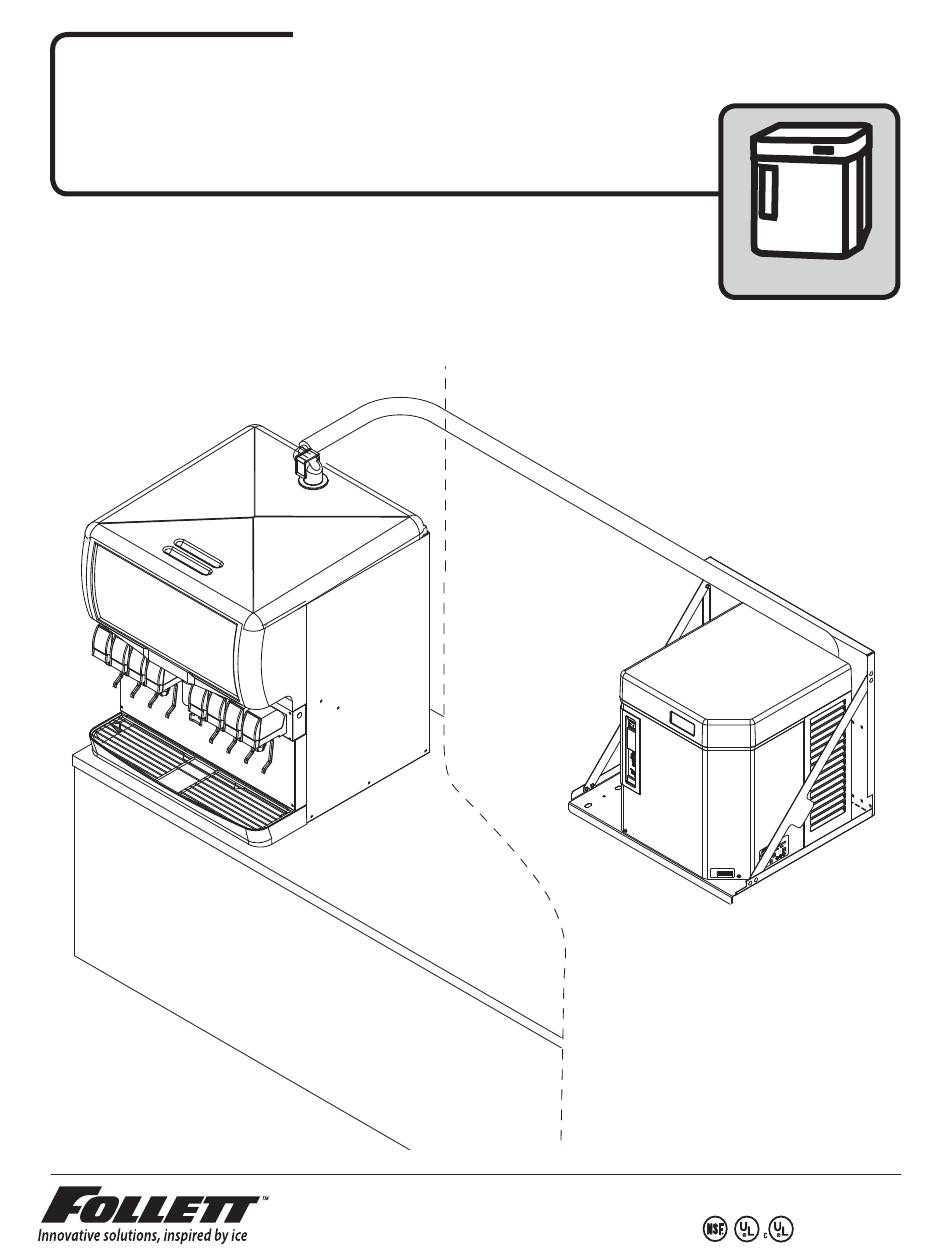

HCD/HMD/HCF/HMF1000RHS, HCD/HMD/HCF/HMF1400RHS, HCD/HMD/HCF/HMF1650RHS,
HCD/HMD1000NHS, HCD/HMD1400NHS, HCD/HMD1650NHS
(See model number confi gurator on page 2 for details.)
Order parts online
www.follettice.com
fi t most countertop dispensers manufactured by
™
Horizon
Ice Machine Models with RIDE
These ice machines
Cornelius • Lancer • SerVend
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Installation Instructions for Harmony
™
Technology
™
remote condensing
Stock Module Identification Plate
208264
Module No.
Product
Service No.
00159954R06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett Horizon HCD1000RHS
Summary of Contents for Follett Horizon HCD1000RHS
- Page 1 ™ ™ Horizon Ice Machine Models with RIDE Technology ™ Installation Instructions for Harmony HCD/HMD/HCF/HMF1000RHS, HCD/HMD/HCF/HMF1400RHS, HCD/HMD/HCF/HMF1650RHS, HCD/HMD1000NHS, HCD/HMD1400NHS, HCD/HMD1650NHS (See model number confi gurator on page 2 for details.) Order parts online www.follettice.com remote condensing These ice machines fi t most countertop dispensers manufactured by Cornelius •...
- Page 2 Chewblet ® Ice Machine Model Number Configurations 1400 Icemaker Voltage Series Condenser Application Configuration MC Maestro™ C 208-230/60/1 (icemaking head) 400 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 454 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (206kg)
- Page 3 Read and complete the following 8 installation steps Unpack Site preparation Dispenser preparation Louvered docking assembly Ice transport tube External connection Internal connection Front cover HARMONY • RIDE Technology remote condensing...
- Page 4 Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack carton #1 ➊ ➋ ➌ ➍ 1/2" 1/2" ➎ ➏ HARMONY • RIDE Technology remote condensing...
-
Page 5: Site Preparation
Potable water supply • 10-70 psi (69-483kpa) • 45-90 F (7-32 C) • Follett recommends the use of an in-line water fi ltration system (item# 00130286) ➌ Drain • The drain line from the ice machine must have at least 1/4” per foot pitch (6,4mm/0,3m) ➍... -
Page 6: Dispenser Preparation
Dispenser preparation Prepare the dispenser. Top preparation Top preparation 5" (127mm) 3" ∅ (76,2mm) • Remove protective tape from gaskets • Locate hole position 5" (127mm) from back of dispenser top • Cut 3" (77,2mm) diameter hole in dispenser top Top preparation Top preparation ➋... - Page 7 Agitation adjust. – CORNELIUS Cornelius models ED, DB, DF, IDC and Flavor Fusion Adjust the agitation timer located on the Cornelius PC board to 1 second on, 1 hour off. Note: See Cornelius manual for more information. Agitation adjustments – LANCER 4500 SERIES ROCKER PRESS IN ON PRESS IN ON...
- Page 8 Agitation adjustments – LANCER FS SERIES Initialization Screen (Boot Up Only) Lancer FS-16 Ver. 0.200 ➊ Main Menu Sub-Catagory FS-16 Setup Brands Per Side Major/Minor V:1 L:2 R:1 FS-16 Setup Bonus Key Setup Config Bonus Key V:1 T:F M:S B:W FS-16 Setup Soda/Plain Water Cancel...
- Page 9 Dispenser diverter plate installation – CORNELIUS ED, DF and DB SERIES storage bin ➊ gate gate restrictor mounting plate plate ➋ ice diverter (supplied) gasket ice chute flange extends into storage bin through gate opening flat washer apply food-grade silicone sealant 10-32 nut to this surface to seal to bin gate...
- Page 10 3.10 Restrictor plate adjustment – CORNELIUS IDC and FLAVOR FUSION ➋ adjust restrictor plate to fully open position ➊ Cornelius IDC and Flavor Fusion These dispensers require the adjustment of the ice restrictor plate. ➊ • Loosen four nuts on ice chute assembly ➋...
- Page 11 HARMONY • RIDE Technology remote condensing...
- Page 12 Louvered docking assembly Install the louvered docking assembly. Wall bracket accessory Machine stand accessory • Mount louvered docking assembly to wall • Mount louvered docking assembly to bracket accessory machine stand accessory Louvered docking assembly 1-3/4" (44,5mm) 3" (76mm) ➋ 1"...
- Page 13 Undercounter installation requirements Top View ➌ ➊ 1.75" (45mm) min. Access panel/ door on counter 24.5" min. (623mm) 21" min. (534mm No Lip ➋ DOCKING STATION • Position and screw louvered docking assembly to the bottom of counter inside of access panel/ ➊...
- Page 14 Transport tube Install the transport tube. Transport tube installation. ➋ Hot Water ➍ 160 F (71 C) ➎ ➏ ➐ ➑ ➒ ➓ ➊ ➌ 1/4" Ice transport tube tips ➊ • Insulate entire length of ice transport tube ➋ •...
-
Page 15: External Connections
External connections Connect utilities to louvered docking assembly. Water and drain Refrigerant ➋ ➊ ➊ • Braze supplied expandable refrigerant • Remove access panel if necessary. ➊ lines in place ➊ • Install drain line The rigid drain line from the ice machine must have at least 1/4"... -
Page 16: Internal Connections
Internal connections Connect louvered docking assembly to ice machine. Ice transport tube installation Water and drain lines ➊ ➋ ➋ ➊ ➋ ➊ • Slide ice machine into louvered docking ➊ • Insert potable water line into valve ➊ assembly •... - Page 17 Power cord • Position plate into opening and secure with supplied screw HARMONY • RIDE Technology remote condensing...
-
Page 18: Front Cover
Front cover Install front cover to ice machine. Install condensing unit Install ice machine front cover ➋ ➊ • Complete installation of condensing unit • Slide ice machine cover over machine or connection to rack system. ensuring that tabs on back of cover slip under louvers on back of louvered ➊... - Page 19 Long tube run recommendations ➊ max. 2 ft (.6m) ➋ 1/4" ➊ • Pitch ice transport tube to allow melt water to drain towards ice machine ➋ • Secure insulated ice transport tube at least every 2 ft (.6m) to prevent dips or traps HARMONY •...
- Page 20 Horizon, Maestro, Harmony, Ice Manager, SafeCLEAN, Sani-Sponge, RIDE and Vision are trademarks of Follett Corporation. Chewblet is a registered trademark of Follett Corporation, registered in the US. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • +1 (610) 252-7301 00159954R06 www.follettice.com...
