HCD1010R/N, HCD1410R/N,
HMD1010R/N, HMD1410R/N,
HCF1010R/N, HCF1410R/N,
HMF1010R/N, HMF1410R/N
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide
carefully before you begin your installation.
Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301

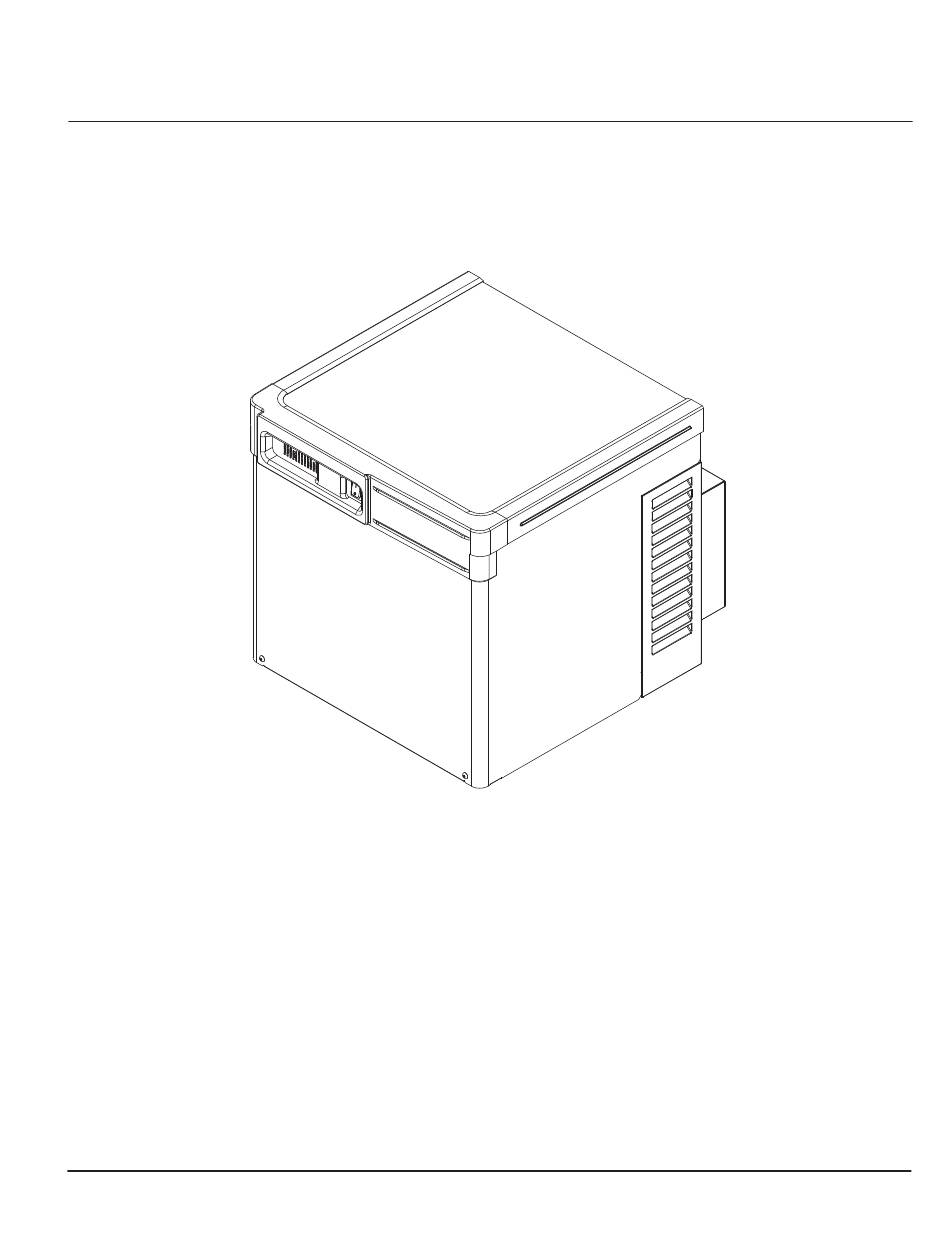

Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
www.follettice.com
Horizon Elite™ 1010/1410 Ice Machines
Please visit www.follettice.com/technicaldocuments
for the Operation and Service manual for your unit.
(Remote Condensing)
User Guide
Installation and Service Videos:
www.follettice.com/servicevideolibrary
1
01252592R00
Advertisement
Table of Contents
Related Manuals for Follett Horizon Elite HCD1010R
Summary of Contents for Follett Horizon Elite HCD1010R
-
Page 1: Welcome To Follett
If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process. - Page 2 CAUTION • Warranty does not cover exterior or outside installations. • Moving parts. Do not operate with front cover removed. • Hot parts. Do not operate with cover removed. • To reduce risk of shock, disconnect power before servicing. • Drain line must not be vented. •...
-
Page 3: Specifications
§ 3/8" OD push-in water inlet (connection inside machine) - 3/8" OD tubing required. § Water shut-off recommended within 10 feet (3 m). § Follett recommends installation of Follett water filter system (part# 00130286) in ice machine inlet water line. Flush drain plumbing §... -
Page 4: Ice Production
Ambient Evaporator unit Air temperature 100 F/38 C max. 50 F/10 C min. Water temperature 90 F/32 C max. 45 F/7 C min. Water pressure 70 psi max. (483 kPa) 10 psi min. (69 kPa) Condenser unit Air temperature 120 F/49 C max. –20F/–29C min. - Page 5 1410 ONLY 1410 ONLY D (1410 ONLY) C (1410 ONLY) NEMA 5-15 RIGHT ANGLE A 21.26" (54.0 cm) B 21.11" (53.6 cm) C 23.77" (60.4 cm) D 2.66" (6.8 cm) E 19.59" (49.8 cm) F 16.00" (40.6 cm) G 2.73" (6.9 cm) H 2.28"...
-
Page 6: Operation
Do not use bleach to sanitize or clean the icemaker. Preventive maintenance Periodic cleaning of Follett’s icemaker system is required to ensure peak performance and delivery of clean, sanitary ice. The recommended cleaning procedures that follow should be performed at least as frequently as recommended, and more often if environmental conditions dictate. - Page 7 Fig. 2 2. Follow the directions on the SafeCLEAN Plus packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN Plus solution. Use 100 F (38 C) water. 3. Using a 1 quart (1L) container, slowly fill cleaning cup until CLEANER FULL light comes on. Do not overfill.
- Page 8 Fig. 5 7. Disconnect coupling as shown. Fig. 6 8. Using disposable foodservice grade gloves, insert dry SaniSponge cleaning sponge. 9. Insert SaniSponge cleaning sponge soaked in SafeClean Plus (from Step 4). 10. Push both SaniSponge cleaning sponges down ice transport tube with supplied pusher tube.
- Page 9 Fig. 8 12. Reconnect coupling. Press power switch ON. Ice pushes SaniSponge cleaning sponges through ice transport tube. Fig. 9 13. Place a sanitary (2 gal. or larger) container in bin or dispenser to collect SaniSponge cleaning sponges and ice for 10 minutes. 14.
- Page 10 Wiring diagram, evaporator unit Gearmotor data Resistance of windings 115 vac gearmotor (Bison): Gearmotor current 2.8A @ 115 V Gearmotor torque-out (high amp) trip point: 5.6A White to Black: 3Ω White to Red: –3Ω Red to Black: 6Ω Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
- Page 11 Single-phase condensing unit wiring diagram FAN 1 FAN 2 COMPRESSOR CONTACTOR COIL see note A RECEIVER TERMINAL HEATER BOARD HEATER THERMOSTAT POWER SUPPLY 230-60-1 POTENTIAL RELAY see note B COMPRESSOR CONTACTOR NC AUXILIARY SWITCH CRANK CASE HEATER COMPRESSOR CONTACTOR COMPRESSOR TERMINAL BLACK START...
- Page 12 3-phase condensing unit wiring diagram FAN 1 FAN 2 TO "Y-OUT" TO "230 VAC" AT PHASE AT PHASE MONITOR MONITOR COMPRESSOR D.T. TO "C" CONTACTOR AT PHASE COIL MONITOR see note A RECEIVER TERMINAL TERMINAL HEATER BOARD BOARD HEATER THERMOSTAT POWER SUPPLY 230-60-3 TO "L2"...
-
Page 13: Refrigeration System
Refrigeration system 1010 - Refrigerant pressure data Air-cooled condensers (air) 60 F/16 C 70 F/21 C 80 F/27 C 90 F/32 C 100 F/38 C Pressure (psig) discharge/suction 202/33 229/35 255/37 275/38 295/39 1410 - Refrigerant pressure data Air-cooled condensers (air) 60 F/16 C 70 F/21 C 80 F/27 C... -
Page 14: Refrigeration Charge
Note: Condensing unit shipped with 0.5 lb of R404A charge. Refrigerant replacement requirements 1. Non-contaminated refrigerant removed from any Follett refrigeration system can be recycled and returned to the same system after completing repairs. Recycled refrigerant must be stored in a clean, approved storage container. -
Page 15: Troubleshooting
Troubleshooting Please see “Service” section for a description of each function. Ice machine disposition Possible causes Corrective action Legend: ON or OFF FLASHING Ice machine is in running 1. Defective compressor. 1. Replace compressor. condition but not making ice. 2. Defective start relay. 2. - Page 16 Warranty Registration and Equipment Evaluation Thank you for purchasing Follett equipment. Our goal is to earn your complete satisfaction by delivering high-value products and services backed by outstanding customer and technical support. Please review the installation instructions thoroughly. It is important that the installation be performed to factory specifications so your equipment operates at its maximum efficiency.
