Dahua KTP01 Setup Instruction

Dahua Intercom Villa Kit KTP01 Setup Instruction

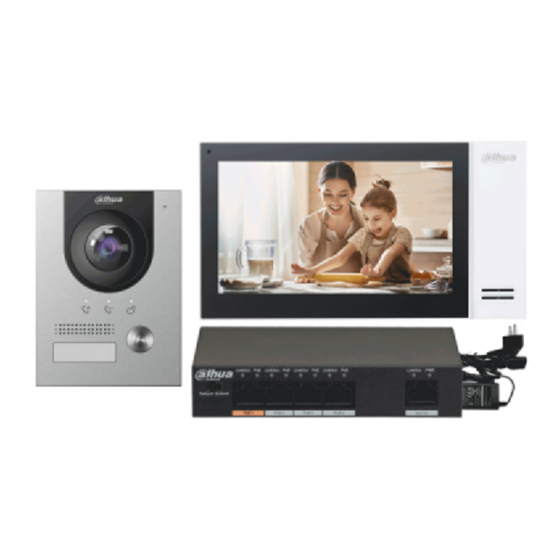

What are included in this kit:
✓ 1x Outdoor Station: DHI-VTO2202F-P
✓ 1x Indoor Monitor: DHI-VTH2421FW-P
✓ 1x POE switch: PFS3005-4ET-60
1. Wiring diagram
Step 1: Connect VTO and VTH to the switch
Step 2: Connect the switch to the router (not
included in KTP01) if customers need to use
the app to answer calls from VTO and unlock
the door.
Step 3: Connect VTO to the lock strike using
COM, NC, or NO (depends on the door lock
contact type) at the back of VTO.
