Product Specification
Model: Showtec Compact Par
Power: 240V-50Hz (CE)
Peak Power 132 Watt; Continuous Power 246 Watt
Power Supply: 100-240V AC
Peak Power 152 Watt
Continuous Power 50 Watt
Drive Current: 350mA
Refresh rate: 3.9KHz
LED System: 7 x 3-in-1 LED Technology
Full 3-in-1 RGB color-mixing
4 Digits LED Control Display
Double bracket
Lumens: 1540
Lux @2m: 2002
Max Distance: 20m
Control Mode: DMX512
DMX channels: 3,4,8
Dimmer: 0-100%
Strobe: 0-20Hz
Beam Angle: 40°
Control: Built-in Programs, Auto, Sound-controlled, Master/Slave, DMX
DMX-controlled
Music-controlled via built-in microphone
3-pin DMX In and 3-pin DMX Out (XLR 3 Pin)
IEC Power connector
Housing: Aluminum and iron
Color: Dark grey and Black
Cooling: Aluminum heat sink
Fuse 1A / 250V

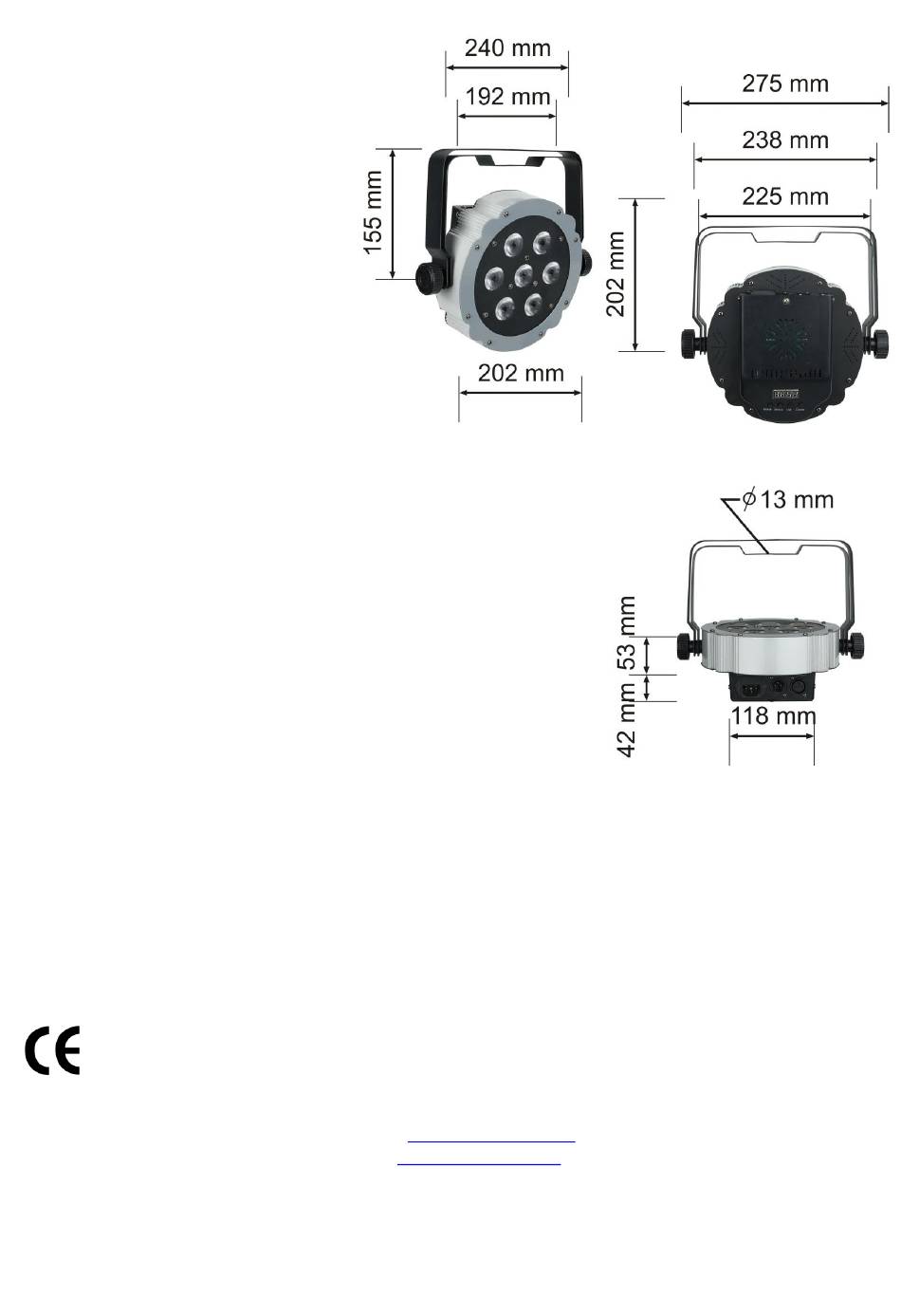

Dimensions: 202 x 202 x 95 mm (LxWxH)
Weight: 2,2 kg
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 0.8m
Design and product specifications are subject to change without prior notice.
