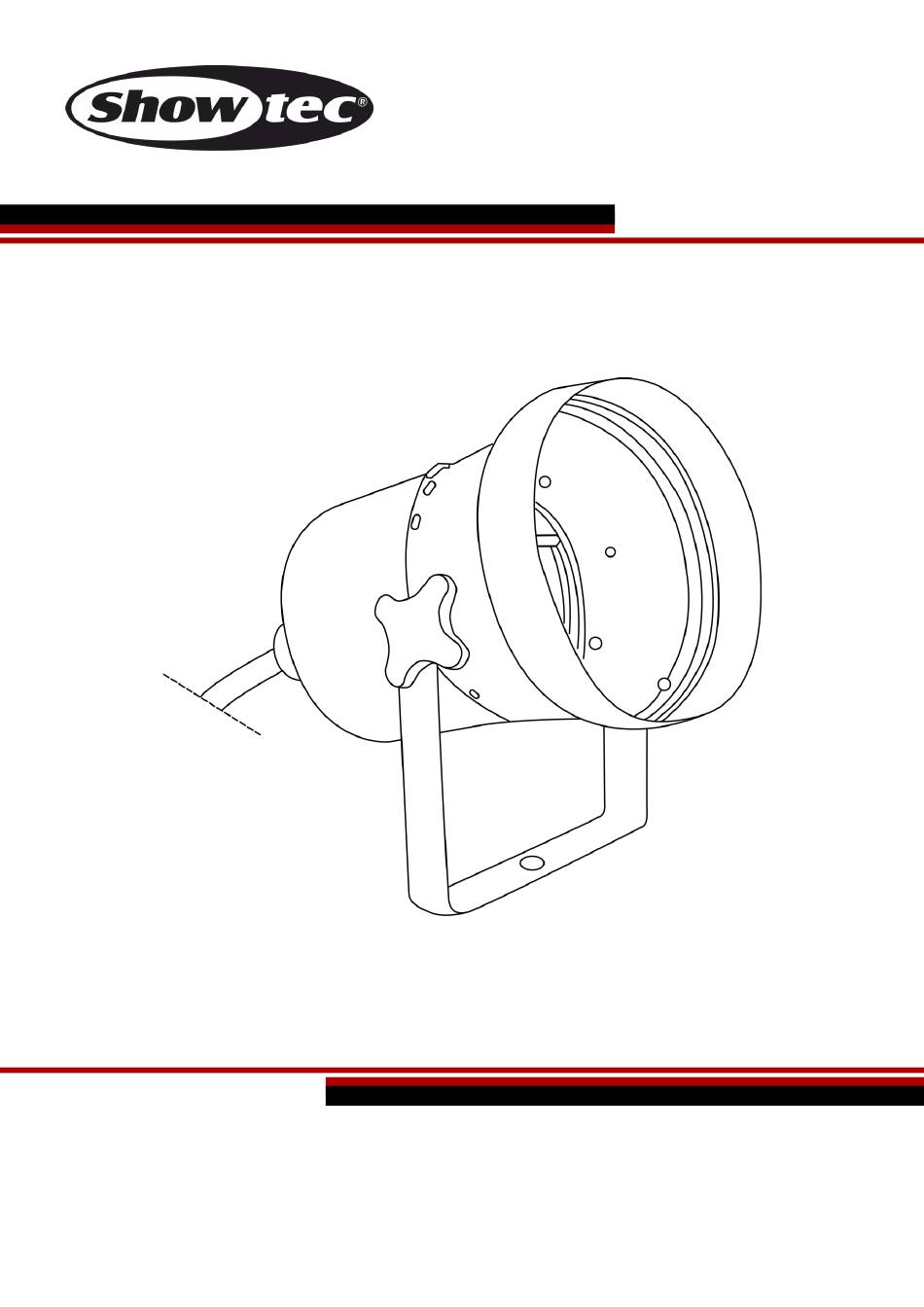

MANUAL
ENGLISH
Parcan 36 Pinspot
V1
Ordercode: 30205/30206
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parcan 36 Pinspot V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SHOWTEC Parcan 36 Pinspot V1

  • Page 1 MANUAL ENGLISH Parcan 36 Pinspot Ordercode: 30205/30206 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2: Table Of Contents

    Parcan 36 Pinspot Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains ............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Optional lamps ................................7 Overview ..................................
  • Page 3: Warning

    Your shipment includes: ● Showtec Parcan 36 Pinspot with 0,3m Schuko power cable ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●...
  • Page 4  If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 5: Operating Determinations

    Parcan 36 Pinspot Operating Determinations ● This device is not designed for permanent operation. Regular operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be bigger than 0,5 meter.
  • Page 6: Connection With The Mains

    Parcan 36 Pinspot The Parcan 36 Pinspot can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place.
  • Page 7: Return Procedure

    Parcan 36 Pinspot Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
  • Page 8: Description Of The Device

    Parcan 36 Pinspot Description of the device Features The Showtec Parcan 36 Pinspot is a parcan with high output and great effects. • Lamp: PAR 36 • Lamp socket: Screw • Capacity: 6V/max 30W • Input voltage: 230V, 50Hz • Power cable 0,3m with Schuko connector •...
  • Page 9: Lamp Housing

    Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Installing the Lamp The Showtec Parcan 36 Pinspot uses a screw socket (ordercode 80101/82160) as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit.
  • Page 10 Parcan 36 Pinspot Procedure: 01) Disconnect the Parcan 36 Pinspot from power before installing the lamp. 02) Remove the fixation ring by pressing it together (Fig.03). 03) Insert a flat-headed screwdriver into the screws and turn left to loosen the screws a little bit(Fig.04). 04) Remove the lamp from the box and hold it by the base.
  • Page 11: Set Up And Operation

    04) If you are unable to determine the cause of the problem, do not modify the Parcan 36 Pinspot, as this may damage the unit and the warranty will become void. 05) Return the device to your Showtec dealer. Ordercode: 30205/30206...
  • Page 12: Product Specifications

    155 x 145 x 160 mm (LxWxH) Weight: 1,04 kg Lamp 80101 Par 36 G53 Screw VNSP GE (100hr; 30W)* 82160 Par 36 G53 Screw VNSP Showtec(100hr; 30W)* Max. ambient temperature t 40°C Max. housing temperature t 80°C Minimum distance: Minimum distance from flammable surfaces:...
  • Page 13: Dimensions

    Parcan 36 Pinspot Dimensions Ordercode: 30205/30206...
  • Page 14: Notes

    Parcan 36 Pinspot Notes Ordercode: 30205/30206...
  • Page 15 Parcan 36 Pinspot Ordercode: 30205/30206...
  • Page 16 ©2016 Showtec...
