Product Specification
Model: Showtec Compact Par
Great product for every DJ or in venues with limited space
Very lightweight
Compact flat Par Housing
Stylish design
Power Supply: 100-240V AC
Easy Link Up to 15 units
Convection cooling, 100% silent
Flicker Free (Suitable for TV Studio)
Peak Power 75 Watt; Continuous Power 30 Watt
Drive Current: 350mA
Refresh rate: 7,8 KHz
Equipped with 108 10mm LEDs
LED Quantity: 36x Red, 36x Green, 36x Blue LEDs
4 Digits LED Control Display
Double bracket
Lux @2m: 1000+
Max Distance: 10m
Colour range: 16,7 million additive colors
Control Mode: DMX512
DMX channels: 1, 3, 4, 6
Dimmer: 0-100%
Strobe: 0-20Hz
Beam Angle: 30°
Control: Built-in Programs, Auto, Sound-controlled, Master/Slave, DMX
DMX-controlled
Music-controlled via built-in microphone
3-pin DMX In and 3-pin DMX Out (XLR 3 Pin)
IEC In and IEC Out
Housing: Flame Retardant Plastic (V0)
Available product colors: Black (42593)or Clear (42594)
IP Rating: IP-20

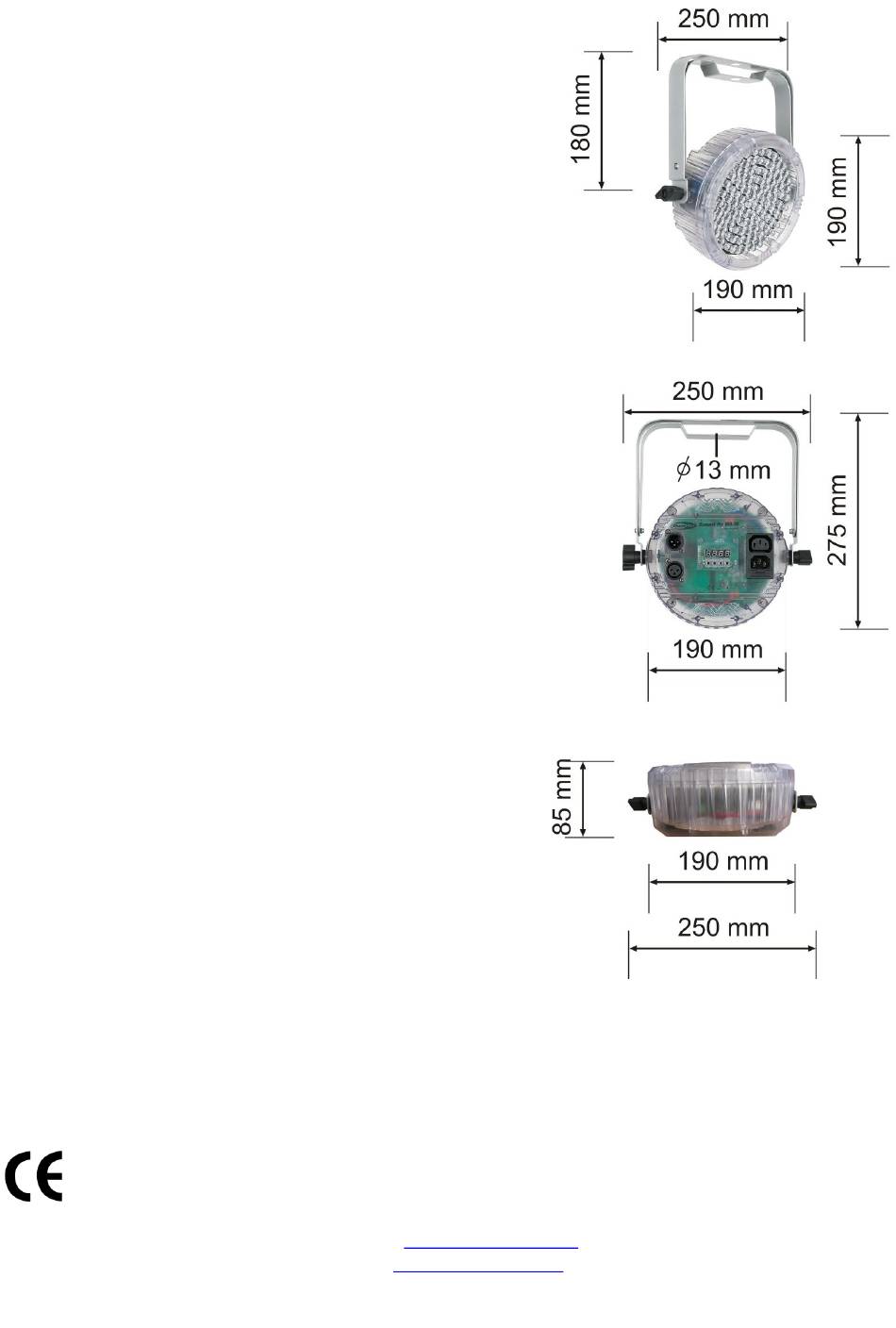

Dimensions: 275 x 250 x 85 mm (LxWxH)
Weight: 1,12 kg
Fuse 2A / 250V
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 0.8m
Design and product specifications are subject to change without prior notice.
Website:
www.Showtec.info
Email:
service@highlite.nl
