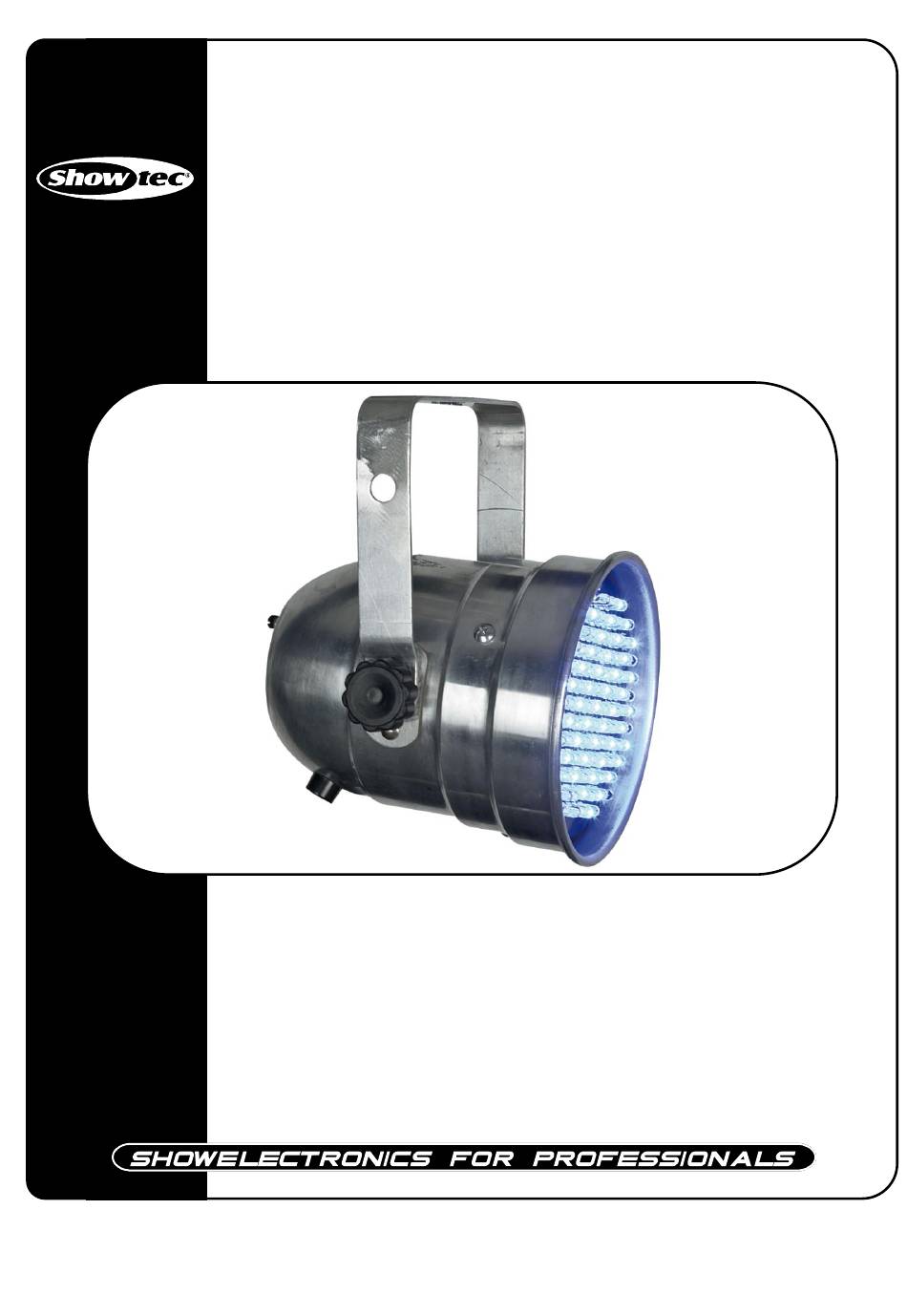

- Page 1 LED Par 38 ORDERCODE 42420...
- Page 2 You have bought a great, innovative product from Showtec. The Showtec LED Par 38 Ultra Bright RGB brings excitement to any venue. Whether you want simple plug- &-play action or a sophisticated DMX show, this product provides the effect you need.
- Page 3 Showtec Showtec LED Par 38 Ultra Bright RGB Product Guide ™ Warning.................…...……………..…………………………….………..….. Safety-instructions…………………………………………………………………………………………………………. Operating Determinations.……………………………………………………………………………………………… Rigging …………………………………………………….……………………………………………………………….. Description................…...………………………………………….………..…. Features and Overview ………………………………...….……………….………….……….……….……………… Set Up and Operation..............……..……………………………………………… Control Modes…………………………………………………………………………………………………………….. DMX Channels.................……………………………………………..………… Maintenance...................………..………….…….………………………….. Troubleshooting................………………….………………….………………... No Light..………………………………………..........………………….………………………..Product Specifications..............……………….…….………………………………...
-
Page 4: Safety Instructions
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
This device can be installed on a flat surface or onto truss systems via the mounting bracket. The user is responsible for correct positioning and operating of the LED Par 38. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. - Page 6 Always let the installation be carried out by an authorized dealer ! Procedure: If the LED Par 38 is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the LED Par 38, with the mounting-bracket, to the trussing system.
-
Page 7: Description Of The Device
Description of the device Features The Showtec LED Par 38 is a LED parcan with high output and great effects. • Never change lamps again! • 123 LEDs (41 Red, 41 Green, 41 Blue) • Stand-alone mode • Music mode •... - Page 8 DMX dipswitches. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec LED Par 36, which has 6 channels is as follow: Example...
-
Page 9: Dmx Channels
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED Par 38, as this may damage the unit and the warranty will become void. -
Page 10: Product Specification
Product Specification Model: Showtec LED Par 38 Voltage: 240V-50Hz (CE) Fuse : F1A 250V Dimensions (LxWxH): 160x155x170mm Weight: 0,84 kg Minimum distance: Minimum distance from flammable surfaces: 0.5m Minimum distance to lighted object: 1.3m Design and product specifications are subject to change without prior notice.
