AUTOMATE
INSTRUCTIONS
ELECTRONIC
SELECTABLE
LIMIT
SPEED
USE THIS DOCUMENT WITH THE FOLLOWING MOTORS:
PART NUMBER
MT01-4001-xxx002
MT01-4001-069003
AUTOMATE_TILT_PRGM_OCT_2023

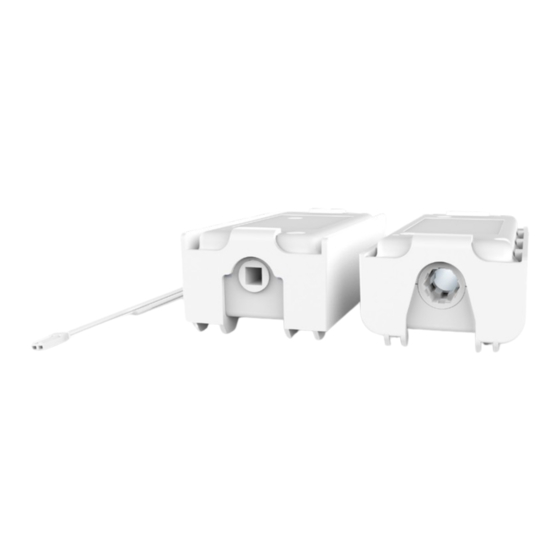

CORE AND TILT MOTOR
433 MHZ
BI-DIRECTIONAL
DESCRIPTION
Passthrough Tilt Motor Kit
AUTOMATE | VT TILT [12V/0.6Nm/11rpm]
FAVORITE
SOLAR OPTION
POSITION
LEVEL CONTROL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTOMATE and is the answer not in the manual?

Questions and answers

Summary of Contents for rollease acmeda AUTOMATE

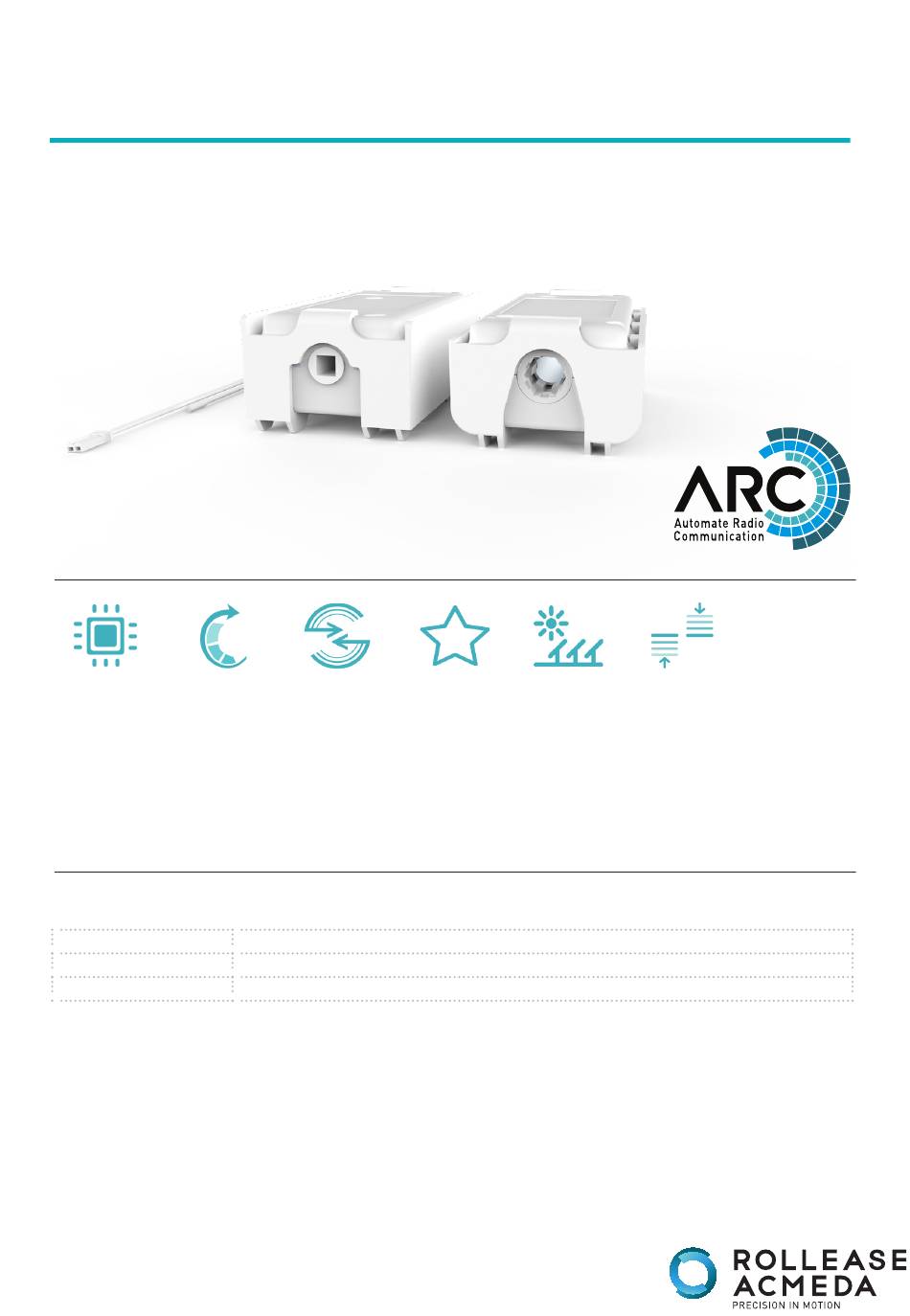

  • Page 1 CORE AND TILT MOTOR INSTRUCTIONS ELECTRONIC SELECTABLE 433 MHZ FAVORITE SOLAR OPTION LEVEL CONTROL LIMIT SPEED BI-DIRECTIONAL POSITION • USE THIS DOCUMENT WITH THE FOLLOWING MOTORS: PART NUMBER DESCRIPTION MT01-4001-xxx002 Passthrough Tilt Motor Kit MT01-4001-069003 AUTOMATE | VT TILT [12V/0.6Nm/11rpm] AUTOMATE_TILT_PRGM_OCT_2023...
  • Page 2 Keep antenna straight and clear from metal objects • Do not cut the antenna. • Use only Rollease Acmeda hardware. • Before installation, remove any unnecessary cords and disable any equipment not needed for powered operation. • Ensure torque and operating time is compatible with end application.
  • Page 3 20 cm. Installer les antennes de facon à ce que le personnel ne puisse approcher à 20 cm ou moins de la position centrale de l’ antenne. La FCC des éltats-unis stipule que cet appareil doit être en tout temps éloigné d’au moins 20 cm des personnes pendant son functionnement. ROLLEASE ACMEDA Programming Instructions | Tilt Motors | 3 Automate ™...
  • Page 4: Table Of Contents

    TILT & ROLLER MODE 10.1 Toggle motor to Tilt Mode 10.2 Toggle Motor to Roller Mode ADJUSTING SPEED 11.1 Increase Motor Speed 11.2 Decrease Motor Speed SLEEP MODE TROUBLE SHOOTING NOTES 4 | Automate ROLLEASE ACMEDA Programming Instructions | Tilt Motors ™...
  • Page 5: Core Tilt Motor Assembly

    • Insert motor assembly into existing venetian head rail assembly • Re-insert tilt rod through the motor assembly & spools • Attach switch control cover Battery Charging ROLLEASE ACMEDA Programming Instructions | Tilt Motors | 5 Automate ™...
  • Page 6: Core Tilt Motor Wand Operation

    CORE TILT MOTOR WAND OPERATION • Optional Control Wand 6 | Automate Programming Instructions | Tilt Motors ROLLEASE ACMEDA ™...
  • Page 7: Tilt Motor Assembly

    • Ensure tilt rod is engaged with the motor • Minimum tilt rod insertion with motor is 1/2” • Maximum tilt rod insertion with motor is 3/4” Battery Charging ROLLEASE ACMEDA Programming Instructions | Tilt Motors | 7 Automate ™...
  • Page 8: Wiring

    WIRING Power Options Automate DC TILT Motor is powered from a 12V DC power source. AA Battery wands, re-chargeable battery packs with a variety of quick connect extension cords. For centralized installations, power supply range can be extended with 18/2 wire (not available through Rollease Acmeda).
  • Page 9: P1 Button Functions

    EMITS A BEEPING NOISE. Reverse Direction IGNORE THIS ICON WHEN PROGRAMMING MT01-4001-069003. ALL OTHER PROMPTS ARE THE SAME Approx. Approx. Approx. FOR BOTH MOTORS. Reset To Factory Settings Approx. Approx. Approx. Approx. ROLLEASE ACMEDA Programming Instructions | Tilt Motors | 9 Automate ™...
  • Page 10: Initial Set Up

    Reversing motor direction using this method is only possible Damage to shade may occur when operating motor prior to during initial set-up setting limits. Attention should be given. NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS 10 | Automate ROLLEASE ACMEDA Programming Instructions | Tilt Motors ™...
  • Page 11: Set Limits

    To save lower limit, hold DOWN and STOP. on controller. Motor Response* Approx. IMPORTANT After setting limits, motor will automatically exit from initial set-up mode. NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS ROLLEASE ACMEDA Programming Instructions | Tilt Motors | 11 Automate ™...
  • Page 12: Adjusting Limits

    The bottom limit should be set ~ 1.38 in. (35mm) below the Ultra-Lock to disengage the auto lock mechanism when the shade is raised. NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS 12 | Automate ROLLEASE ACMEDA Programming Instructions | Tilt Motors...
  • Page 13: Controllers And Channels

    B to remove controller A. controller A. Motor Response* Motor Response* Motor Response* IMPORTANT Consult user manual for your controller or sensor NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS ROLLEASE ACMEDA Programming Instructions | Tilt Motors | 13 Automate ™...
  • Page 14: Favorite Positioning

    Approx. Delete favorite position Press P2 on controller. Press STOP on controller. Press STOP on controller. Motor Response* Motor Response* Motor Response* NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS 14 | Automate ROLLEASE ACMEDA Programming Instructions | Tilt Motors ™...
  • Page 15: Tilt & Roller Mode

    If motor is in Tilt Mode, use following steps to change to Roller Mode. Hold UP & DOWN on controller. Press STOP on controller. Motor Response* Motor Response* Approx. NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS ROLLEASE ACMEDA Programming Instructions | Tilt Motors | 15 Automate ™...
  • Page 16: Adjusting Speed

    NOTE: Repeating this step when at the slowest speed EXITS Soft Stop Mode in MT01-4001-069001. Press P2 Press DOWN Press DOWN Motor Response* Motor Response* Motor Response* NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS 16 | Automate ROLLEASE ACMEDA Programming Instructions | Tilt Motors ™...
  • Page 17: Sleep Mode

    Press and release P1 button on motor setup. the motor head Hold P1 button on the motor head Motor Response* Motor Response* Approx. NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS ROLLEASE ACMEDA Programming Instructions | Tilt Motors | 17 Automate ™...
  • Page 18: Trouble Shooting

    Cannot program a single motor Multiple motors are paired to the Always reserve an individual (multiple motors respond) same channel channel for programming functions. Use Sleep Mode to program individual motors. 18 | Automate ROLLEASE ACMEDA Programming Instructions | Tilt Motors ™...
  • Page 19: Notes

    NOTES ROLLEASE ACMEDA Programming Instructions | Tilt Motors | 19 Automate ™...
  • Page 20 T +61 3 9355 0100 | F +61 3 9355 0110 T +39 02 8982 7317 | F +39 02 8982 7317 Queensland Branch Unit 2/62 Borthwick Avenue, Murarrie QLD 4172 20 | Automate Programming Instructions | Tilt Motors ™...
