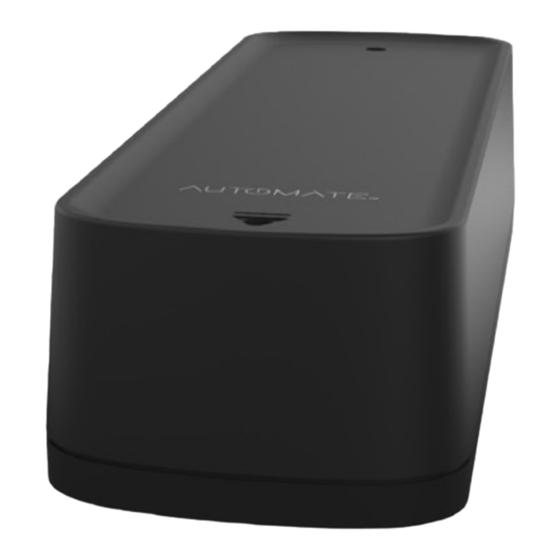

ARC Motion Sensor Instructions
The ARC Motion Sensor is used to detect motion on a shade. The result of strong vibration
can trigger a paired awning motor to move the shade to its home position for protection. The
motion sensor can only be programmed to operate External Motors (15Nm and upwards).
Features:
•
Compatible with AUTOMATE awning motors and controllers
•
Suitable for fitting to awning terminal bars
•
Provides protection from excessive wind gusts
•
9 x levels of sensitivity
•
Low battery warning
•
Loss of communication SAFEGUARD TECHNOLOGY
MT02-0301-xxx002_PRGM_v3.4_OCTOBER 2021
Live Feedback
Energy e cient
433 MHZ
BI-DIRECTIONAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for rollease acmeda Automate
Summary of Contents for rollease acmeda Automate

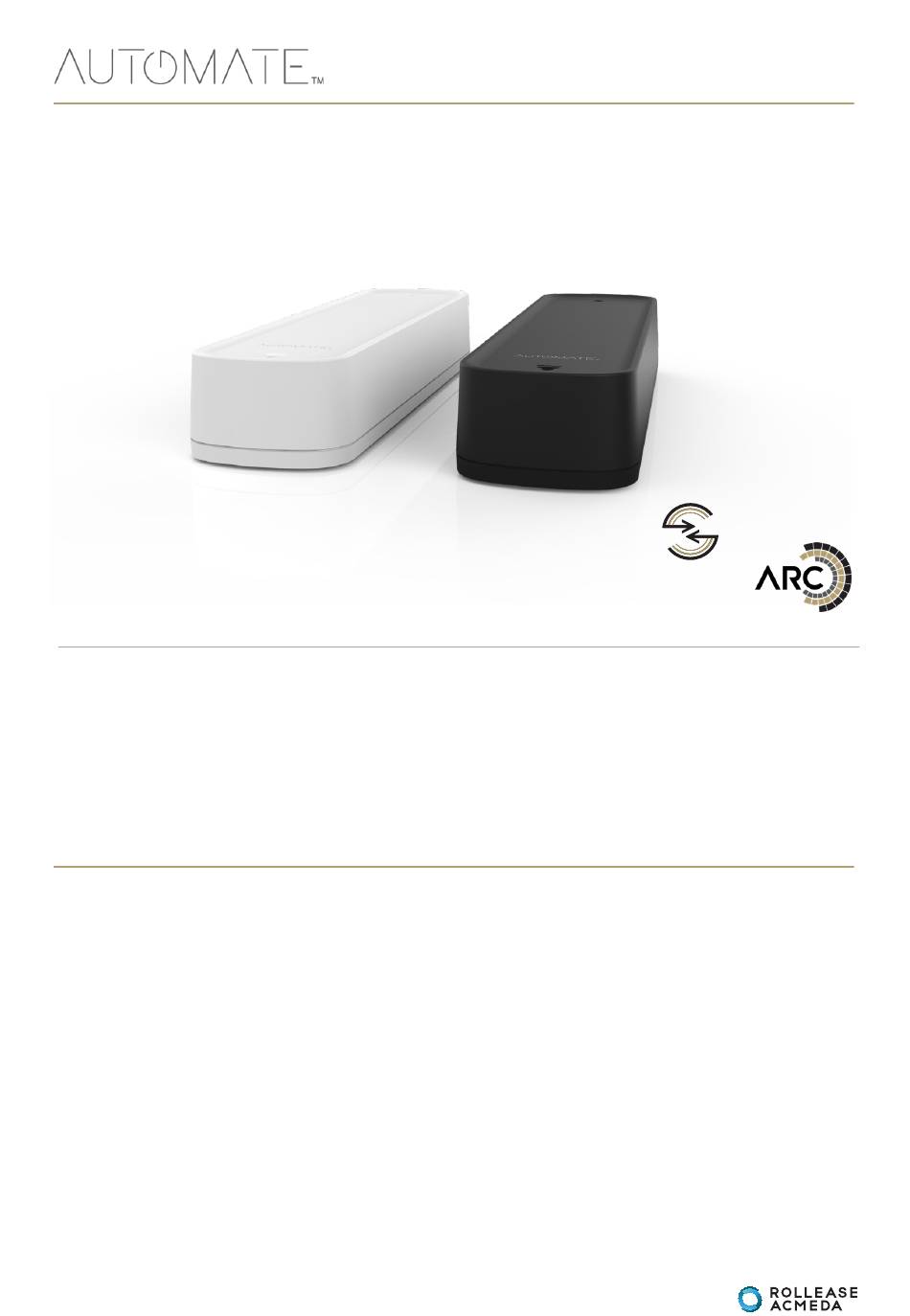

- Page 1 The motion sensor can only be programmed to operate External Motors (15Nm and upwards). Features: • Compatible with AUTOMATE awning motors and controllers • Suitable for fitting to awning terminal bars •...
-
Page 2: Table Of Contents
4.2 Use Sensor as Remote ADDITIONAL FUNCTIONS 5.1 Inactive Mode 5.2 Active Mode ADDITIONAL INFORMATION 6.1 Warning / Caution 6.2 Unpair Motion Sensor 6.3 Re-Pair Motion Sensor TROUBLE SHOOTING NOTE 2 | Automate ROLLEASE ACMEDA Programming Instructions | Motion Sensor ™... - Page 3 PRODUCT SPECIFICATION SHEET Motion Sensor Cover Screw x2 Motion Sensor Bracket Wall Mount x2 ARC Motion Sensor ITEM DESCRIPTION: Motion Sensor Cradle Disc Magnet MT02-0301-072002 ITEM CODE: AAA Battery x2 Instructions 3 | Automate ROLLEASE ACMEDA Programming Instructions | Motion Sensor ™...
-
Page 4: Safety Instructions
Keep clear when in operation. • Replace battery with correctly specified type. Rollease Acmeda declares this equipment is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. Statement Regarding FCC / IC Compliance This device complies with Part 15 of the FCC Rules / Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1. -
Page 5: Overview
PROPRIETARY & CONFIDENTIAL DIMENSIONS www.rolleaseacmeda.com THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF IN "MM" ROLLEASE ACMEDA. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE REV. WRITTEN PERMISSION OF ROLLEASE ACMEDA IS PROHIBITED. 5 | Automate ROLLEASE ACMEDA Programming Instructions | Motion Sensor ™... -
Page 6: Cover Removal
COVER REMOVAL P2 BUTTON & SENSITIVITY DIAL Sensitivity dial Motion Sensor Cradle 6 | Automate Programming Instructions | Motion Sensor ROLLEASE ACMEDA ™... -
Page 7: Sensitivity Dial Adjustment
• Dial set to 5: Move motor to upper limit/Motion Sensor in Active mode. • Dial set to 9: Move motor to bottom limit/ Motion Sensor in Inactive mode. 7 | Automate Programming Instructions | Motion Sensor ROLLEASE ACMEDA ™... -
Page 8: Safeguard Technology
SAFEGUARD TECHNOLOGY Once the sensor is paired to an Automate external motor, the sensor will check in with the motor every 30mins. If the motor does not receive the signal at the checkpoint, the motor will close the awning as a protective measure. -
Page 9: Setup
To move shade to bottom limit, set dial to 9 and press P2. Once confirmed Sensor and Motor are talking together, set sensitivity. Dial set to 1-9: Sensitivity, Highest - Lowest. 9 | Automate ROLLEASE ACMEDA Programming Instructions | Motion Sensor ™... -
Page 10: Additional Functions
To re-pair motion sensor move the dial to 5 and press and hold p2 on motion sensor until 2 beeps. Hold P2 Dial Setting Response Alternatively, you can factory reset the motor to clear all paired sensors. 10 | Automate ROLLEASE ACMEDA Programming Instructions | Motion Sensor ™... -
Page 11: Trouble Shooting
Motor and sensor need to have at Safeguard feature is not Motor and sensor checking least 1 check in before this feature is triggering timing enabled, this occurs every 30mins. 11 | Automate ROLLEASE ACMEDA Programming Instructions | Motion Sensor ™... -
Page 12: Note
NOTE ROLLEASE ACMEDA | USA ROLLEASE ACMEDA | AUSTRALIA ROLLEASE ACMEDA | EUROPE Level 7 / 750 East Main Street 110 Northcorp Boulevard, Via Conca Del Naviglio 18, Stamford, CT 06902, USA Broadmeadows VIC 3047, AUS Milan (Lombardia) Italy T +1 800 552 5100 | F +1 203 964 0513...
