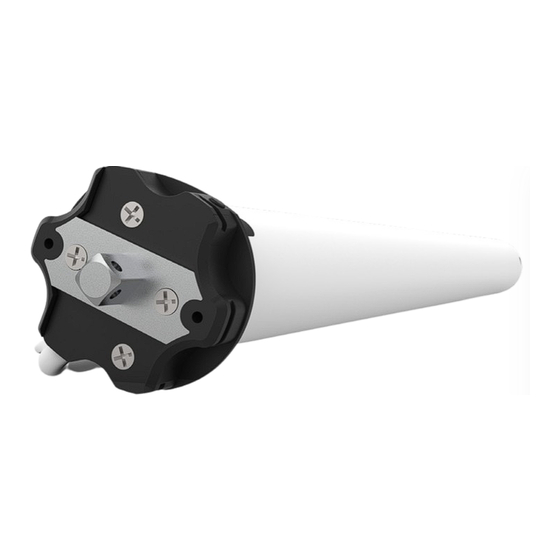

- Page 1 AUTOMATE ™ X50 VERTICAL DROP AWNING MOTOR 433 MHZ ELECTRONIC FAVORITE BI-DIRECTIONAL LIMIT POSITION AUTOMATE | X50 Vertical Drop Awning Motor combine the simple, intuitive features of ARC “Automate Radio Communication” with the higher lifting capacity of an AC motor for larger shade applications.
-
Page 2: Table Of Contents
7.2 Send shade to favorite position 7.3 Delete favorite position SLEEP MODE WIND SENSOR FUNCTION 9.1 Wind Sensor Prioritize Function 9.2 Off line Wind Sensor Function TROUBLE SHOOTING 2 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... - Page 3 Keep antenna straight and clear from metal objects • Do not cut the antenna. • Use only Rollease Acmeda hardware. • Before installation, remove any unnecessary cords and disable any equipment not needed for powered operation. • Ensure torque and operating time is compatible with end application.
-
Page 4: Assembly
ASSEMBLY Please refer to Rollease Acmeda System Assembly Manual for full assembly instructions relevant to the hardware system being used. Step 1. Cut roller tube to required length. Step 2. Ensure roller tube is clean and free from burrs. For impact dectection to be functional, a 2 piece drive set must be used. -
Page 5: Wiring
Failure to do so could compromise Failure to do so could compromise personal safety. personal safety. MOTOR POWER NEUTRAL LIVE EARTH MT01-1145-069011 220-240V AC 50Hz Blue Brown Yellow/Green 5 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... -
Page 6: P1 Button Functions
Motor Response Sleep Mode Approx. Motor Response Reverse Direction Approx. Motor Response Reset To Factory Settings Approx. Motor Response Factory settings include E-type mode and disable impact detection. 6 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... -
Page 7: Initial Set Up
Damage to shade may occur when operating motor prior to IMPORTANT setting limits. Attention should be given. Reversing motor direction using this method is only possible during initial set-up 7 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... -
Page 8: Set Limits
Cycle shade up and down prior to setting limits to settle fabric Approx. SECS IMPORTANT After setting limits, motor will automatically exit from initial set-up mode. Initial set-up is not complete 8 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... -
Page 9: Adjusting Limits
Move shade to the desired To save lower limit, hold on controller. lowest position by pressing DOWN and STOP. the DOWN button. Motor Response Motor Response Approx. Approx. 9 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... -
Page 10: Adding Or Removing Controllers And Channels
Press P2 on on existing controller / channel to existing controller. controller. add or remove Motor Response Motor Response Motor Response IMPORTANT Consult user manual for your controller or sensor 10 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... -
Page 11: Favorite Positioning
Motor Response Send shade to favorite position Approx. Delete favorite position Press P2 on controller. Press STOP on controller. Press STOP on controller. Motor Response Motor Response Motor Response 11 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... -
Page 12: Sleep Mode
Press and release P1 button on the motor head Hold P1 button on the motor head Motor Response Motor Response Approx. 12 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... -
Page 13: Wind Sensor Function
This function can be disabled and enabled as follows: To Disable Press UP+STOP+DOWN on controller. Motor Response Approx. SECS To Re-Enable Press UP+STOP+DOWN on controller. Motor Response Approx. SEC S 13 | Automate ROLLEASE ACMEDA Programming Instructions | ARC VDA Motor ™... -
Page 14: Trouble Shooting
Place all other motors into sleep mode (refer to P1 button function overview - Section 3) ROLLEASE ACMEDA | USA ROLLEASE ACMEDA | AUSTRALIA ROLLEASE ACMEDA | EUROPE 200 Harvard Avenue 110 Northcorp Boulevard,...
