AUTOMATE
INSTRUCTIONS
ELECTRONIC
SELECTABLE
LIMIT
SPEED
•
USE THIS DOCUMENT WITH THE FOLLOWING MOTORS:
PART NUMBER
MT01-4001-xxx002
MTDCRF-TILT-1
AUTOMATE_TILT_PRGM_JULY_2019
™
CORE TILT MOTOR
433 MHZ
BI-DIRECTIONAL
DESCRIPTION
Passthrough Tilt Motor Kit
Automate VT Motor
FAVORITE
SOLAR OPTION
POSITION
LEVEL CONTROL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for rollease acmeda AUTOMATE MT01-4001-002 Series
Summary of Contents for rollease acmeda AUTOMATE MT01-4001-002 Series

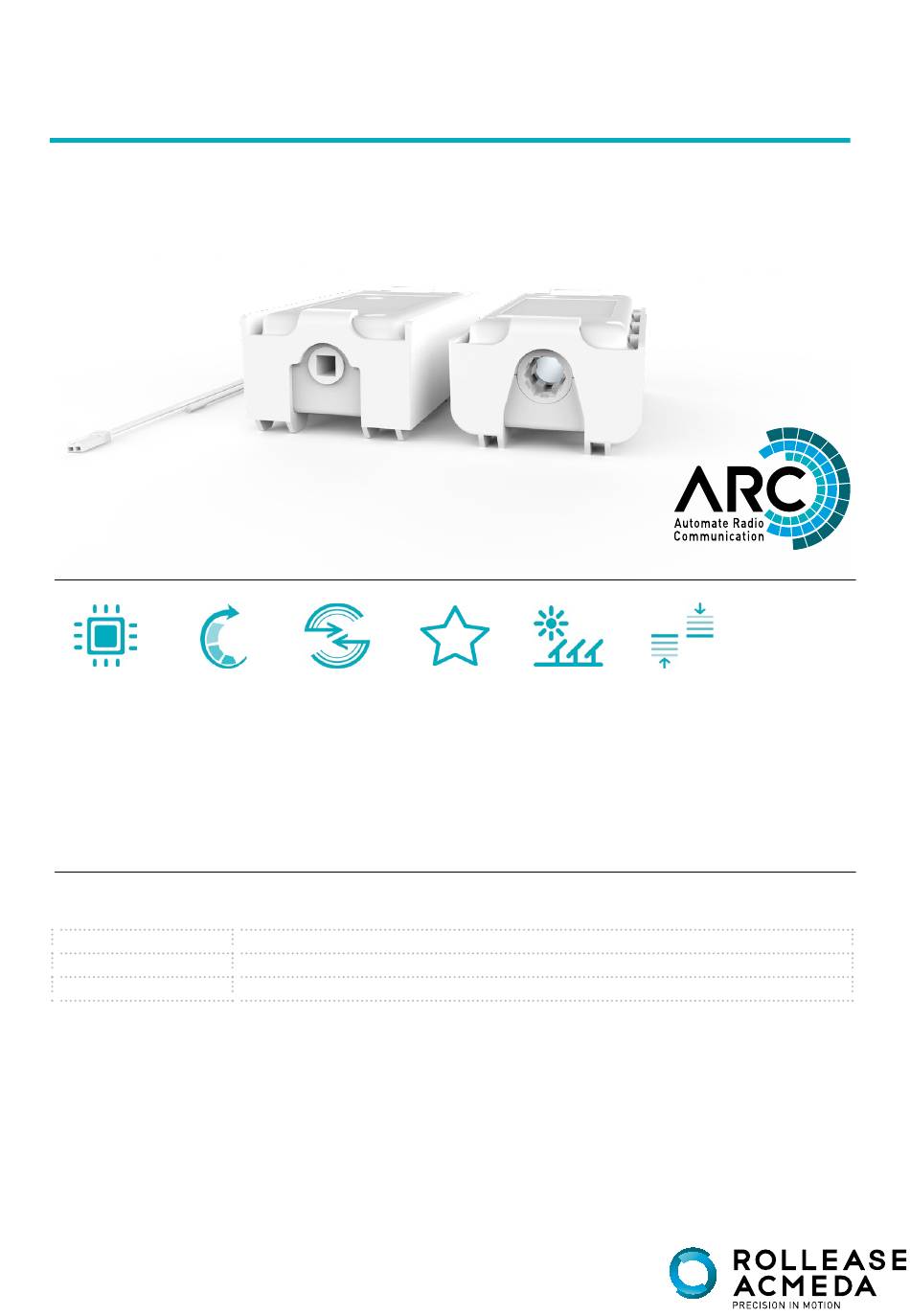

- Page 1 AUTOMATE ™ CORE TILT MOTOR INSTRUCTIONS ELECTRONIC SELECTABLE 433 MHZ FAVORITE SOLAR OPTION LEVEL CONTROL LIMIT SPEED BI-DIRECTIONAL POSITION • USE THIS DOCUMENT WITH THE FOLLOWING MOTORS: PART NUMBER DESCRIPTION MT01-4001-xxx002 Passthrough Tilt Motor Kit MTDCRF-TILT-1 Automate VT Motor AUTOMATE_TILT_PRGM_JULY_2019...
- Page 2 Keep clear when in operation. • Replace battery with correctly specified type. Rollease Acmeda declares this equipment is in compliance with the essential requirements and other relevant provisions of R&TT EC Directive 1999/5/EC Statement Regarding FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
TILT & ROLLER MODE 10.1 Toggle motor to Tilt Mode 10.2 Toggle motor to Roller Mode ADJUST SPEED 11.1 Increase motor speed 11.2 Decrease motor speed SLEEP MODE TROUBLE SHOOTING ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors | 3 Automate ™... -
Page 4: Core Tilt Motor Assembly
• Insert motor assembly into existing venetian head rail assembly • Re-insert tilt rod through the motor assembly & spools • Attach switch control cover Battery Charging 4 | Automate ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors ™... -
Page 5: Core Tilt Motor Wand Operation
CORE TILT MOTOR WAND OPERATION • Optional Control Wand ROLLEASE ACMEDA Automate Programming Instructions | Venetian Tilt Motors | 5 ™... -
Page 6: Core Tilt Motor Assembly
Ensure tilt rod is engaged with the motor • Minimum tilt rod insertion with motor is 1/2” • Maximum tilt rod insertion with motor is 3/4” Battery Charging 6 | Automate ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors ™... -
Page 7: Wiring
A/C power supplies are available, with a variety of quick connect extension cords. For centralized installations, power supply range can be extended with 18/2 wire (not available through Rollease Acmeda). • During operation, if voltage drops to less than 10V, the motor will beep 10 times to indicate a power supply issue. -
Page 8: P1 Button Functions
Reverse Direction IGNORE THIS ICON WHEN PROGRAMMING MTDCRF-TILT-1. ALL OTHER PROMPTS ARE THE SAME Approx. Approx. Approx. FOR BOTH MOTORS. Reset To Factory Settings Approx. Approx. Approx. Approx. 8 | Automate ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors ™... -
Page 9: Initial Set-Up
Reversing motor direction using this method is only possible Damage to shade may occur when operating motor prior to during initial set-up setting limits. Attention should be given. NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors | 9 Automate ™... -
Page 10: Set Limits
To save lower limit, hold DOWN and STOP. on controller. Motor Response* Approx. IMPORTANT After setting limits, motor will automatically exit from initial set-up mode. NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS 10 | Automate ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors ™... -
Page 11: Adjusting Limits
The bottom limit should be set ~ 1.38 in. (35mm) below the Ultra-Lock to disengage the auto lock mechanism when the shade is raised. NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors | 11 Automate ™... -
Page 12: Controllers And Channels
B to remove controller A. controller A. Motor Response* Motor Response* Motor Response* IMPORTANT Consult user manual for your controller or sensor NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS 12 | Automate ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors ™... -
Page 13: Set A Favorite Position
Delete favorite position Press P2 on controller. Press STOP on controller. Press STOP on controller. Motor Response* Motor Response* Motor Response* NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors | 13 Automate ™... -
Page 14: Tilt & Roller Mode
If motor is in Tilt Mode, use following steps to change to Roller Mode. Hold UP & DOWN on controller. Press STOP on controller. Motor Response* Motor Response* Approx. NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS 14 | Automate ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors ™... -
Page 15: Adjust Speed
NOTE: Repeating this step when at the slowest speed EXITS Soft Stop Mode in MT01-4001-069001. Press P2 Press DOWN Press DOWN Motor Response* Motor Response* Motor Response* NOTE: * ONLY THE PASSTHROUGH MOTOR BEEPS ROLLEASE ACMEDA Programming Instructions | Venetian Tilt Motors | 15 Automate ™... -
Page 16: Sleep Mode
(multiple motors respond) same channel channel for programming functions. Use Sleep Mode to program individual motors. ROLLEASE ACMEDA | USA ROLLEASE ACMEDA | AUSTRALIA ROLLEASE ACMEDA | EUROPE Level 7 / 750 East Main Street 110 Northcorp Boulevard, Via Conca Del Naviglio 18,...
