SOLAR POWERED WIND & LIGHT SENSOR

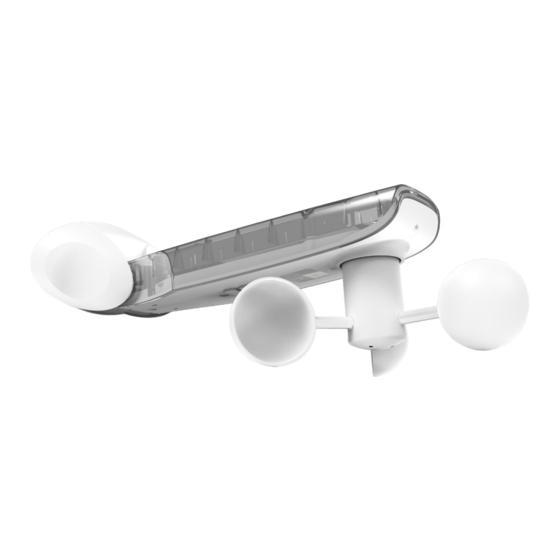

AUTOMATE™ | Wind-Light sensor is a device for measuring wind speed and light intensity.
The information is transmitted to ARC outdoor motorized shades that will move to their top
or bottom limits.
FEATURES:
•
Measure wind speed with an anemometer
•
Measure light intensity with a Lux meter
•
LCD display
•
ARC compatibility
•
USB-C Charging Port
•
Solar Charging Panel
•
Loss of communication Safeguard Technology
MT02-0301-072001_PRGM_v2.3_MAR 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTOMATE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for rollease acmeda AUTOMATE

Summary of Contents for rollease acmeda AUTOMATE

  • Page 1 SOLAR POWERED WIND & LIGHT SENSOR AUTOMATE™ | Wind-Light sensor is a device for measuring wind speed and light intensity. The information is transmitted to ARC outdoor motorized shades that will move to their top or bottom limits. FEATURES: •...
  • Page 2 Use or modification outside the scope of this • Replace battery with correctly specified type. instruction manual will void warranty. Rollease Acmeda declares this equipment is in compliance • Installation and programming to be performed by a with the essential requirements and other relevant suitably qualified installer.

  • Page 3: Table Of Contents

    4.1 Display measured wind speed & light intensity 4.2 Display the pre-set threshold value 4.3 Wind Sensor Function 4.4 Light Sensor Function 4.5 Activate/Deactivate Sun & Wind sensor functionality on the motor TROUBLESHOOTING NOTES ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 | 3 Automate ™...

  • Page 4: Installation

    Fix the sensor to a suitable surface Re-attach the base covers Ensure the three rotating cups are in an approximately horizontal position Transmission Distance: 35 meters indoors 200 meters open space 4 | Automate ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 ™...

  • Page 5: Overview

    OVERVIEW COMPONENTS Anemometer cup Luminosity Sensor Display Menu Adjust Solar Panel Factory Reset Button USB-C Charging Port ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 | 5 Automate ™...

  • Page 6: Lcd Display

    RF signal icon: displayed when transmitting a signal. SAFEGUARD TECHNOLOGY Once the sensor is paired to an Automate external motor, the sensor will check in with the motor every 30mins. If the motor does not receive the signal at the checkpoint, the motor will close as a protective measure.

  • Page 7: Setup

    DOWN on the remote OPENS the Awning (awning moves in an outward/downward direction). E.g. And UP on the remote CLOSES the Awning (awning moves in an inward/upward direction). E.g. Note: Follow motor programming instructions to reverse motor direction if necessary. ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 | 7 Automate ™...

  • Page 8: Pair Or Unapir The Sensor To A Motor Using A Pre-Paired Remote

    UP P2 Wait 10 seconds to NOTE: The wind speed control function can be disabled by setting its Approx. set the threshold threshold to ZERO. Other threshold values enable this function. 8 | Automate ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 ™...

  • Page 9: Setup Light Control

    NOTE: The light intensity function can be disabled by setting its threshold to ZERO. Other threshold values enable this function. Condition klux (approximate) Direct Sunlight Daylight Overcast ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 | 9 Automate ™...

  • Page 10: Additional Functions

    The sequence is: display the light intensity threshold value > display the wind speed threshold value > return to normal mode. Press M button Press M button UP P2 UP P2 UP P2 UP P2 10 | Automate ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 ™...

  • Page 11: Wind Sensor Function

    15 minutes MINS MINS NOTE : Wind sensor trigger overrides light sensor, and moves motor up to top limit, despite motor having moved down due to strong light. ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 | 11 Automate ™...

  • Page 12: Activate/Deactivate Sun & Wind Sensor Functionality On The Motor

    ACTIVATE/DEACTIVATE SUN & WIND SENSOR FUNCTIONALITY ON THE MOTOR Note: Functionality activated by default. Press P2 on controller Press UP on controller Press STOP on controller Motor Response Motor Response Motor Response (Activated) Motor Response (Deactivated) 12 | Automate ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 ™...

  • Page 13: Troubleshooting

    Motor and Wind sensor need to Motor and Wind sensor checking have at least 1 check in before Safeguard feature is not triggering timing this feature is enabled, this occurs every 30mins. ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 | 13 Automate ™...

  • Page 14: Notes

    NOTES STATIC TITLE 14 | Automate ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 ™...
  • Page 15 NOTES STATIC TITLE ROLLEASE ACMEDA Programming Instructions | MT02-0301-072001 | 15 Automate ™...
