AUTOMATE
Solar Powered Wind, Light & Rain Sensor
AUTOMATE

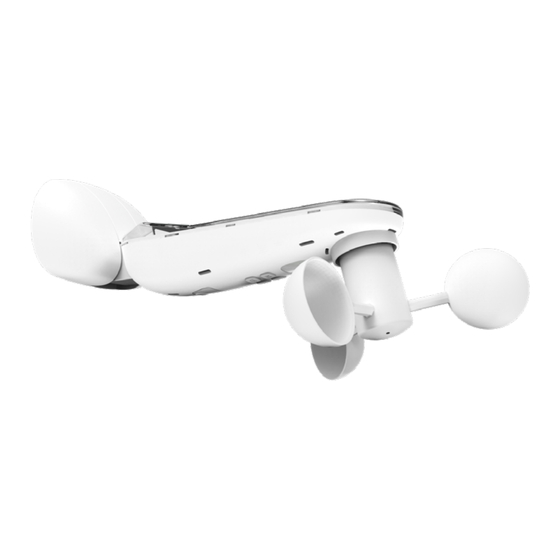

| Wind-Light-Rain sensor is a device for measuring wind speed, light
™
intensity and the existence of rain. The information is transmitted to ARC outdoor
motorized shades that will move to their top or bottom limits.
FEATURES:
•
Measure wind speed as an anemometer
•
Measure light intensity as a Lux meter
•
Capacitive rain sensor
•
LCD display
•
ARC compatibility
•
Micro-B USB data output/charging port
•
Solar charge panels
•
Built-in Lithium Ion battery
•
Water proof
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for rollease acmeda Automate
Summary of Contents for rollease acmeda Automate
- Page 1 AUTOMATE ™ Solar Powered Wind, Light & Rain Sensor AUTOMATE | Wind-Light-Rain sensor is a device for measuring wind speed, light ™ intensity and the existence of rain. The information is transmitted to ARC outdoor motorized shades that will move to their top or bottom limits.
- Page 2 Keep clear when in operation. • Replace battery with correctly specified type. Rollease Acmeda declares this equipment is in compliance with the essential requirements and other relevant provisions of R&TT EC Directive 1999/5/EC Statement Regarding FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 3 MT01-1145-069002 - AUTOMATE | ARC FT SLIM Motor Quiet [US] MT01-1145-069003 - AUTOMATE | ARC FT SLIM Motor [US] MT01-1145-069004 - AUTOMATE | ARC FT SLIM Motor Quiet - 20’ Cord [US] ROLLEASE ACMEDA Programming Instructions | MT02-0301-078001 | 3 Automate ™...
-
Page 4: Table Of Contents
2.6 Pair or unpair the sensor to a motor using a pre-paired remote WIND, RAIN & LIGHT CONTROL 3.1 Disable or enable the detection of wind, rain or light 3.2 Wind speed control 3.3 Rainfall control 3.4 Light Control TROUBLE SHOOTING 4 | Automate ROLLEASE ACMEDA Programming Instructions | MT03-0101-078001 ™... -
Page 5: Installation
The solar panel must be face up and in direct sunlight Fix the sensor to a suitable surface Re-attach the base covers Ensure the three rotating cups are in an approximately horizontal position ROLLEASE ACMEDA Programming Instructions | MT02-0301-078001 | 5 Automate ™... -
Page 6: Functional Overview
FUNCTIONAL OVERVIEW STATIC TITLE Components Display Menu Adjust Micro-B USB port USB Port Cover Factory Setting Button Luminosity Sensor Anemometer cup Solar Panel Capacitive Rain Sensor 6 | Automate ROLLEASE ACMEDA Programming Instructions | MT03-0101-078001 ™... - Page 7 Pressing the Factory Setting Button and releasing again returns the sensor to the normal status. • Default Factory Settings: rainfall sensitivity = middle, light alarm value is 10kLux, wind speed value is 10km/h [6mph]. • Display all symbols on the LCD display. ROLLEASE ACMEDA Programming Instructions | MT02-0301-078001 | 7 Automate ™...
- Page 8 • Can be used to charge the internal battery. • The Micro-B port should always be covered during the outdoor usage to maintain a waterproof seal. OPTIONAL: USB Cable: MTPS-USBCABLE-6 8 | Automate Programming Instructions | MT03-0101-078001 ROLLEASE ACMEDA ™...
-
Page 9: Lcd Display
Battery icon: The voltage of the internal battery is checked by its inner program once every day. The appearance of this battery icon indicates that its voltage is below 3.0V. RF signal icon: displayed when transmitting a signal. ROLLEASE ACMEDA Programming Instructions | MT02-0301-078001 | 9 Automate... -
Page 10: Measure Wind Speed, Light Intensity Or Detect Rain Presence
The sequence is: display the set rainfall detection sensitivity > display the light intensity threshold value > display the wind speed threshold value > return to normal mode. Press MENU button Press MENU button Press MENU button Press MENU button 10 | Automate ROLLEASE ACMEDA Programming Instructions | MT03-0101-078001 ™... -
Page 11: Change The Threshold Value
The sensor can only work well when the motor was configured with the upper and bottom limits. • The pair relationship is kept even if the motor power is reset or the sensor is reset to its default setting. ROLLEASE ACMEDA Programming Instructions | MT02-0301-078001 | 11 Automate... - Page 12 If the pair is successfully done, the motor can be triggered to move upward by pressing the UP button on • the sensor. • After the sensor is paired to a motor, it can independently drive the motor without the remote. 12 | Automate ROLLEASE ACMEDA Programming Instructions | MT03-0101-078001 ™...
-
Page 13: Wind, Rain & Light Control
“UP” action. After that, the sensor suspends the rain and light detection for the next 15 minutes to prohibit the motorized shades from oscillation between open and closed states. ROLLEASE ACMEDA Programming Instructions | MT02-0301-078001 | 13 Automate... -
Page 14: Light Control
If the sensor detects strong light and wind during raining, it transmits one command at least 5 times. Before its environment changes, the sensor suspends the signal transmission but still operates its normal functions such as the detection of rain, light, wind and LCD functions. 14 | Automate ROLLEASE ACMEDA Programming Instructions | MT03-0101-078001... -
Page 15: Trouble Shooting
3 minutes light setting Time interval of light and rain The light & rain triggering time status change is less than 15 length must be over 15 minutes minutes ROLLEASE ACMEDA Programming Instructions | MT02-0301-078001 | 15 Automate ™... - Page 16 ROLLEASE ACMEDA | AUSTRALIA 110 Northcorp Boulevard, Broadmeadows VIC 3047 T +61 3 9355 0100 | F +61 3 9355 0110 ROLLEASE ACMEDA | USA 750 East Main Street, 7th Floor Stamford, CT 06902 T +1 00 552 5100 | F +1 203 64 0513...
