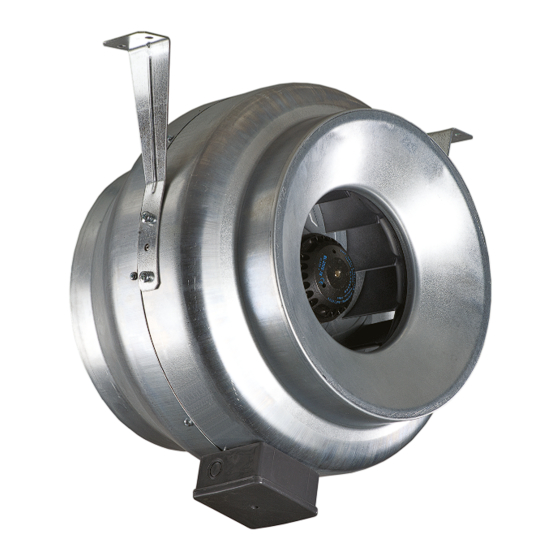

- Page 1 Centrifugal inline fan Centro-MZ 100 Centro-MZ 200 l Centro-MZ 100 l Centro-MZ 200 Centro-MZ 125 Centro-MZ 200 max Centro-MZ 150 Centro-MZ 250 l Centro-MZ 150 max Centro-MZ 250 Centro-MZ 160 Centro-MZ 315 Centro-MZ 160 max Centro-MZ 315 max USER’S MANUAL...
-
Page 2: Table Of Contents
Centro-MZ www.blaubergventilatoren.de CONTENTS Contents ......................................2 Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up .................................. 6 Connection to power mains ..............................7 Technical maintenance ................................ -
Page 3: Safety Requirements
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it. - Page 4 Centro-MZ www.blaubergventilatoren.de This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Purpose
Centro-MZ www.blaubergventilatoren.de PURPOSE The Centro-MZ centrifugal fans are designed for ventilation of domestic, public and manufacturing premises heated during winter. The transported air temperature must be within the limits stated in the «Technical data» section. The fan is designed for horizontal or vertical mounting in an air duct and is used both for supply and exhaust ventilation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs). -
Page 6: Technical Data
OVERALL AND CONNECTING DIMENSIONS Dimensions [mm] Model Weight, kg В В1 Centro-MZ 100 Centro-MZ 100 L Centro-MZ 125 Centro-MZ 150 Centro-MZ 150 max Centro-MZ 160 Centro-MZ 160 max Centro-MZ 200 L Centro-MZ 200 Centro-MZ 200 max... -
Page 7: Design And Operating Principle
Centro-MZ www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE The fan consists of the casing 1, the electric motor attached to the inner fixing bracket 4, the cover 2 that is fixed to the casing with screws 3 (the casing spigot diameter and the cover diameter are equal to the connected air duct diameter), the terminal box 5 that incorporates a terminal block and a capacitor and enables connection of the fan to single-phase power mains. -
Page 8: Connection To Power Mains
Centro-MZ www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL. -
Page 9: Technical Maintenance
Centro-MZ www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION The technical maintenance includes periodic cleaning of the surfaces from accumulated dust and dirt. Use a soft dry brush or a vacuum cleaner to remove dust. -
Page 10: Manufacturer's Warranty
Centro-MZ www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 11: Certificate Of Acceptance
Centro-MZ www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal inline fan Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 12 www.blaubergventilatoren.de B05-1EN-12...
