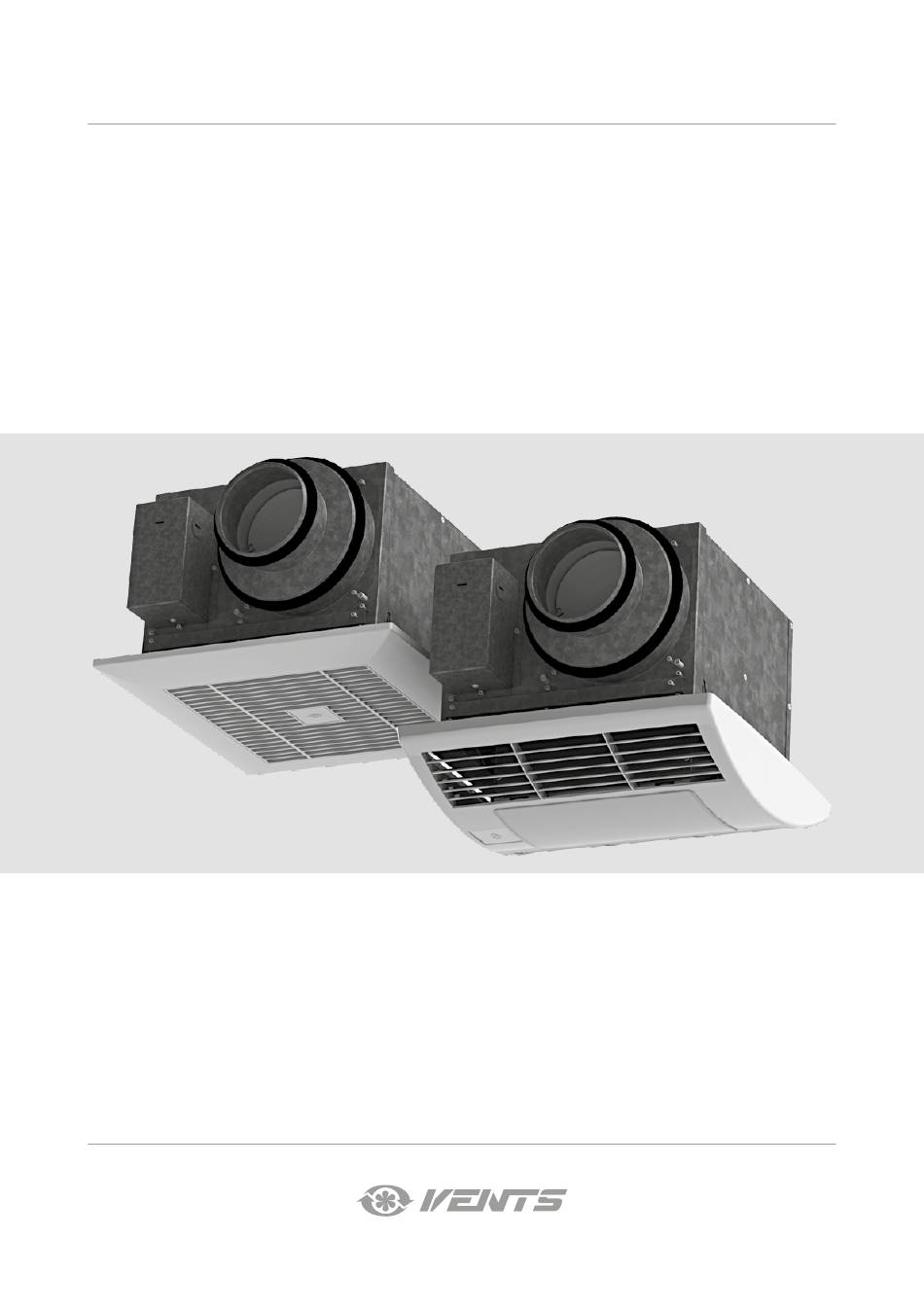

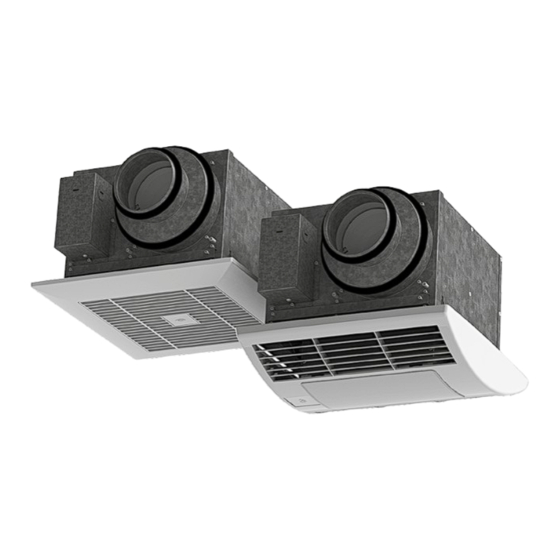

- Page 1 USER’S MANUAL CBF 200/250/300 CBF 200/250/300 T/TH/TP CBF 200/250/300 LIGHT CBF 200/250/300 LIGHT T/TH/TP Centrifugal ceiling fan...
-
Page 2: Table Of Contents
CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery Set ....................................... 4 Designation key .................................... 4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up ................................7 Connection to power mains ..............................10 Control ......................................... 11 Maintenance .................................... - Page 3 • Do not change the power cable length at your own discretion. Do not bend the power cable. Avoid damaging the power • Unpack the unit with care. cable. Do not put any foreign objects on the power cable. • Do not operate the unit outside the •...
-
Page 4: Purpose
PURPOSE The centrifugal ceiling extract fan CBF is designed for extract ventilation of small to medium-sized premises. THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED PERSONNEL AFTER THE APPROPRIATE BRIEFING. -
Page 5: Technical Data
OVERALL AND CONNECTION DIMENSIONS OF THE FANS CBF 200/250 CBF 300 CBF 200/250 T/TH/TP CBF 300 T/TH/TP CBF 200/250 Light CBF 300 Light CBF 200/250 Light T/TH/TP CBF 300 Light T/TH/TP DIMENSIONS [mm] MODEL CBF 200/250 CBF 200/250 T/TH/TP CBF 200/250 Light... -
Page 6: Design And Operating Principle
CBF 200 T/TH/TP CBF 250 T/TH/TP CBF 300 T/TH/TP PARAMETER CBF 200 LIGHT CBF 250 LIGHT CBF 300 LIGHT CBF 200 LIGHT T/TH/TP CBF 250 LIGHT T/TH/TP CBF 300 LIGHT T/TH/TP Frequency [Hz] Speed Voltage [V] 1 ~ 220-240 Fan power [W]... -
Page 7: Mounting And Set-Up
The fan casing is made of galvanized steel. The fan casing includes an exhaust spigot with a back draft damper to prevent back air flow. The terminal box comprises the terminals for wiring of the fan and is attached to the fan casing. The decorative grille is fixed to the casing via the springs inserted to the holders. - Page 8 MOUNTING STEPS 1. Attach the fan to the interjoist using the screws. 2. Connect the air duct of a required diameter. 3. Connect the LED lamps (included in the delivery set) for the Light models. Option: connect the humidity sensor or the motion sensor (specially ordered accessory). For the Light models: connect the power socket of the LED lamp and the respective sockets in the terminal box.
- Page 9 BASIC FAN INSTALLATION OPTIONS Installation Side fixation Fixation between between the ceiling joists to one of the ceiling joists the ceiling joists using the mounting brackets Additional fastening holes in the fan casing may be used for mounting purposes www.ventilation-system.com...
-
Page 10: Connection To Power Mains
CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE SHOWN ON THE RATING PLATE. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. -
Page 11: Control
CONTROL CONTROL UNIT WITH A SPEED SWITCH HIGH Three-position switch The fan with AC motor is controlled by a three-position switch. The switch has three positions: — the fan is turned off. — the fan operates at reduced performance (speed 1). HIGH —... -
Page 12: Maintenance
INDICATOR SYMBOLS OF THE MICROPROCESSOR CONTROL UNIT — turn-off delay timer adjustable from 1 to 90 minutes (default setting 15 minutes). — turn-on delay timer adjustable from 0 to 180 seconds with the increment of 10 seconds (default setting 0). —... - Page 13 LAMP REPLACEMENT DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! 1. Remove the decorative grille: • Pull the grille to release the springs from the holders on the casing. • Take out the lamp power socket from the respective socket on the casing. •...
-
Page 14: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’ s original packaging box in a dry closed ventilated premise with temperature range from +5 °C (+41 °F) to +40 °C (+104 °F). • Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 15: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance of the transportation, storage, installation, and operation regulations. -
Page 16: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal ceiling extract fan Model CBF _______________________ Serial Number Manufacture Date Quality Inspector’s Stamp The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the protection requirements of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE- marking Directive 93/68/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. - Page 17 www.ventilation-system.com...
- Page 18 www.ventilation-system.com...
- Page 19 www.ventilation-system.com...
- Page 20 V166-1EN-01...
