USER'S MANUAL
Breezy 160-E
Breezy 160-E L055
Breezy 160-E L07
Breezy 160-E L1
Breezy 160-E Smart
Breezy 160-E Smart L055
Breezy 160-E Smart L07
Breezy 160-E Smart L1
Single Room Heat Recovery Ventilation Unit
Breezy 200-E
Breezy 200-E L055
Breezy 200-E L07
Breezy 200-E L1
Breezy 200-E Smart
Breezy 200-E Smart L055
Breezy 200-E Smart L07
Breezy 200-E Smart L1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Breezy 160-E and is the answer not in the manual?

Questions and answers

Related Manuals for Vents Breezy 160-E

Summary of Contents for Vents Breezy 160-E

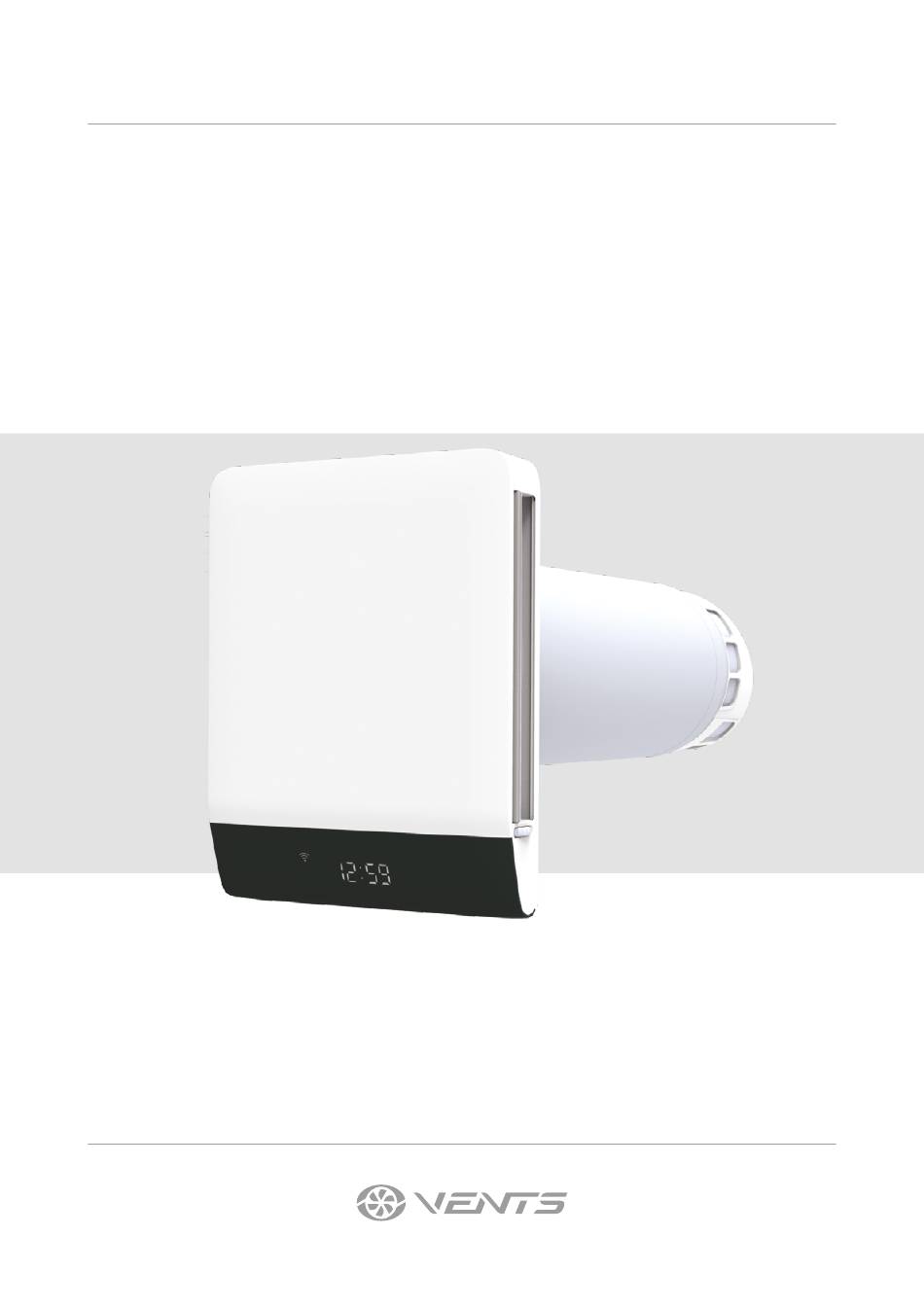

  • Page 1 Breezy 160-E L07 Breezy 200-E L07 Breezy 160-E L1 Breezy 200-E L1 Breezy 160-E Smart Breezy 200-E Smart Breezy 160-E Smart L055 Breezy 200-E Smart L055 Breezy 160-E Smart L07 Breezy 200-E Smart L07 Breezy 160-E Smart L1 Breezy 200-E Smart L1...

  • Page 2: Table Of Contents

    Breezy 160/200-E (Smart) (L055/07/1) CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up .................................. 7 Connection to power mains ..............................12 Unit control .......................................
  • Page 3 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.

  • Page 4: Purpose

    Breezy 160/200-E (Smart) (L055/07/1) PURPOSE The ventilator is designed to ensure continuous mechanical air exchange in flats, cottages, hotels, cafés and other domestic and public premises. The ventilator is equipped with a heat exchanger that enables supply of fresh filtered air heated by means of reusing the heat contained in extract air.

  • Page 5: Technical Data

    Breezy 160/200-E (Smart) (L055/07/1) TECHNICAL DATA The temperature in the room where the indoor unit of the ventilator is installed must be in the range from +5 ˚C to +40 ˚C and relative humidity up to 70% (without humidity condensation). Provide fresh air through the windows. The temperature of the transported air should be in the range from -30 ˚C to +40 ˚C.

  • Page 6: Design And Operating Principle

    Breezy 160/200-E (Smart) (L055/07/1) DESIGN AND OPERATING PRINCIPLE The product consists of an operating module with the indoor unit and external housing. The operating module contains fans, the heat exchanger, heaters, supply and extract air ducts. Heat exchanger is used to transfer heat energy between the air flows.

  • Page 7: Mounting And Set-Up

    Breezy 160/200-E (Smart) (L055/07/1) MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT WHEN THE PRODUCT IS INSTALLED IN BUILDINGS, WHERE WIND OVERLOAD IS POSSIBLE, IN PREMISES WITH PASSIVE VENTILATION, FIREPLACES OR PRE-INSTALLED VENTILATION UNITS (EXTRACT FANS, KITCHEN HOOD ETC.) SUPPLY AND EXTRACT AIR IMBALANCE IS POSSIBLE IT MAY CAUSE DRAFTS AND DESTABILIZE TEMPERATURE IN WINTER SEASON.
  • Page 8 Breezy 160/200-E (Smart) (L055/07/1) When choosing the location of the product in resting and sleeping areas, keep in mind that the product will act as an additional source of noise. Keep in mind that during the cold season, the supply air temperature from the product will be lower than the ambient temperature.
  • Page 9 Breezy 160/200-E (Smart) (L055/07/1) Matching the length of the product to the thickness of the external wall. For the product to function properly, the ventilation hood must be positioned as shown in the figure. The distance from the wall to the edge of the ventilation hood must be greater than 40 mm and the condensate drainage hole must point straight down only.
  • Page 10 Breezy 160/200-E (Smart) (L055/07/1) Sequence of operations to trim Breezy 160/200-E (Smart) (L055/07/1) products If the wall thickness is equal to the L dimension of your product, you can proceed to step 1 of the product installation instructions. If the dimension L of your product is greater than the wall thickness, you can trim it before installation. To do so, follow these steps: Determine the exact thickness of the wall where the product is to be installed.
  • Page 11 Breezy 160/200-E (Smart) (L055/07/1) To insulate the heater and make the cut airtight, use the heat-shrink tubing with an adhesive layer (included in the delivery set). Put on a 30-mm long section of it. Fit it using an industrial dryer. Press the overlapping part with pliers.
  • Page 12 Breezy 160/200-E (Smart) (L055/07/1) Unit mounting 1. Prepare a round core hole in the outer wall 172 mm in diameter for Freshpoint 160-Е models and 212 mm in diameter for Freshpoint 200-Е models. 2. Detach the external housing from the operation module. Warning! Do not connect it to the power mains when detached! 3.
  • Page 13 Breezy 160/200-E (Smart) (L055/07/1) 5. Put the mounting template on the wall. Align it using the level. Afterward, mark the openings to insert dowels from the mounting kit and drill the holes of required depth. When connecting it to fixed wiring, mark the cable outlet site (item 1). Pull the power cord through to the marked site. 6.

  • Page 14: Connection To Power Mains

    Breezy 160/200-E (Smart) (L055/07/1) CONNECTION TO POWER MAINS The unit is rated for connection to power mains with the parameters specified in the “Technical data” section. The unit must be connected using the power cord with a plug pre-installed at the factory, or fixed wiring. To connect to fixed wiring, do the following: remove the cable with the plug;...

  • Page 15: Unit Control

    Breezy 160/200-E (Smart) (L055/07/1) UNIT CONTROL The product can be controlled using the remote control and a mobile app via Wi-Fi. Before turning on the unit, open the rotating dampers on the indoor part of the unit. After turning off the unit, the dampers may be left open to use the unit in passive ventilation mode. The dampers may also be closed do avoid drafts.
  • Page 16 Connecting your smartphone device to the product You can download the app by following the link to the App Store or Play Market, or by using QR codes. Vents Home – App Store Vents Home – Play Market Wi-Fi technical data Standard IEFE 802.11b/g/n...
  • Page 17 Breezy 160/200-E (Smart) (L055/07/1) The main modes, functions, settings available in the smartphone application are as follows: On/Off. Turning the product on or off. Speed switch: 1, 2, 3 Selecting the corresponding fans speed. It is controlled using the buttons on the remote control or in the smartphone app. Ventilation direction: supply, exhaust, recovery.
  • Page 18 Breezy 160/200-E (Smart) (L055/07/1) Heat exchanger frost protection The unit has an algorithm to protect the heat exchanger from frost in winter season. According to the algorithm, if heat exchanger frost danger is detected, gradual supply fan speed decrease (until it stops), gradual extract fan speed increase, or automatic heater power-on may be initiated.

  • Page 19: Technical Maintenance

    Breezy 160/200-E (Smart) (L055/07/1) TECHNICAL MAINTENANCE DISCONNECT THE PRODUCT FROM THE POWER SUPPLY BEFORE PERFORMING ANY MAINTENANCE WORK Maintenance of the ventilator means regular dusting of the ventilator surfaces and cleaning and replacing the filters. To access the filters, remove the decorative panels from the operating module. Remove the filters.

  • Page 20: Possible Faults And Troubleshooting

    Breezy 160/200-E (Smart) (L055/07/1) If necessary, the remote control battery may be replaced. No response of the unit for pressing the remote control buttons indicates the need to replace the battery. The battery type is CR2025. Remove the holder with the battery from the bottom part of the remote control.

  • Page 21: Manufacturer's Warranty

    Breezy 160/200-E (Smart) (L055/07/1) MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 22 Breezy 160/200-E (Smart) (L055/07/1) www.ventilation-system.com...

  • Page 23: Certificate Of Acceptance

    Breezy 160/200-E (Smart) (L055/07/1) CERTIFICATE OF ACCEPTANCE Unit Type Single Room Heat Recovery Ventilation Unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 24 V259EN-06...
