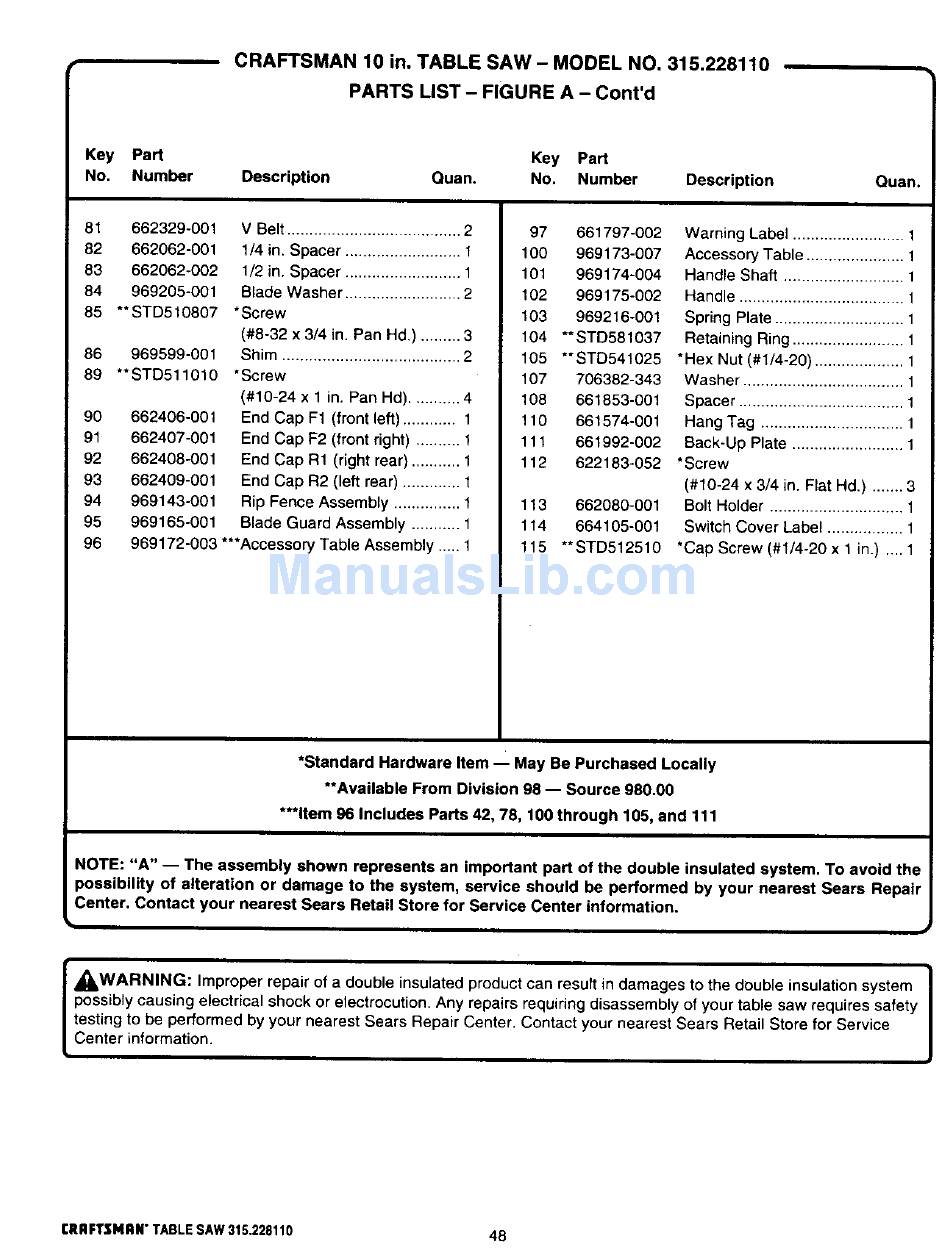

CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.228110
PARTS LIST - FIGURE A - Cont'd
Key Part Key Part
No. Number Description Quan. No. Number Description
Quan.
81 662329-001 V Belt ....................................... 2
82 662062-001 1/4 in. Spacer .......................... 1
83 662062-002 1/2 in. Spacer .......................... 1
84 969205-001 Blade Washer .......................... 2
85 **STD510807 *Screw
(#8-32 x 3/4 in. Pan Hd) ......... 3
86 969599-001 Shim ........................................ 2
89 **STD511010 *Screw
(#10-24 x 1 in. Pan Hd) ........... 4
90 662406-001
91 662407-001
92 662408-001
93 662409-001
94 969143-001
95 969165-001
96
End Cap F1 (front left) ............ 1
End Cap F2 (front right) .......... 1
End Cap R1 (right rear) ........... 1
End Cap R2 (left rear) ............. 1
Rip Fence Assembly ............... 1
Blade Guard Assembly ........... 1
969172-003 ***Accessory Table Assembly ..... 1
97 661797-002
100 969173-007
101 969174-004
102 969175-002
103 969216-001
104 **STD581037
105 **STD541025
107 706382-343
108 661853-001
110 661574-001
111 661992-002
112 622183-052
113 662080-001
114 664105-001
115 **STD512510
Warning Label ......................... 1
Accessory Table ...................... 1
Handle Shaft ........................... 1
Handle ..................................... 1
Spring Plate ............................. 1
Retaining Ring ......................... 1
*Hex Nut (#1/4-20) .................... 1
Washer .................................... 1
Spacer ..................................... 1
Hang Tag ................................ 1
Back-Up Plate ......................... 1
* Screw
(#10-24 x 3/4 in. Flat Hd,) ....... 3
Bolt Holder .............................. 1
Switch Cover Label ................. 1
*Cap Screw (#I/4-20 x 1 in.) .... 1
*Standard Hardware Item -- May Be Purchased Locally
**Available From Division 98 -- Source 980.00
***Item 96 Includes Parts 42, 78, 100 through 105, and 111
NOTE: "A" -- The assembly shown represents an important part of the double insulated system. To avoid the
}ossibility of alteration or damage to the system, service should be performed by your nearest Sears Repair
Center. Contact your nearest Sears Retail Store for Service Center information.
{ ,_WARNING: Improper repair of a double insulated product can result in damages to the double insulation system |
possibly causing electrical shock or electrocution. Any repairs requiring disassembly of your table saw requires safety
I
testing to be performed by your nearest Sears Repair Center. Contact your nearest Sears Retail Store for Service
Center information.
