ASROCK Rack 1U12XL-C622 RPSU Quick Installation Manual

*15G065108000AK*
P/N: 15G065108000AK V1.0
Quick Installation Guide
1U12XL-C622 RPSU
Cable List
No. Item
A SMBus Y Cable, MB to BPB
B MINISAS HD Cables, MB to BPB (3.5" HDD)
C SATA Cables, MB to BPB (2.5" HDD)
D Power Cable, ATX 20Pin, MB to PDB
E PMBus Cable, MB to PDB
F Power Cable, 8Pin CPU1 Power, MB to PDB
G Power Cable, 8Pin CPU2 Power, MB to PDB
H Power Y-Cable for Backplane, PDB to BPB
I Display Cable, MB to FPB
J VGA Dongle Cable, MB to Server (Rear Panel)
K COM Dongle Cable, MB to Server (Rear Panel)
L USB 2.0 Cable, MB to Server (Front Panel)

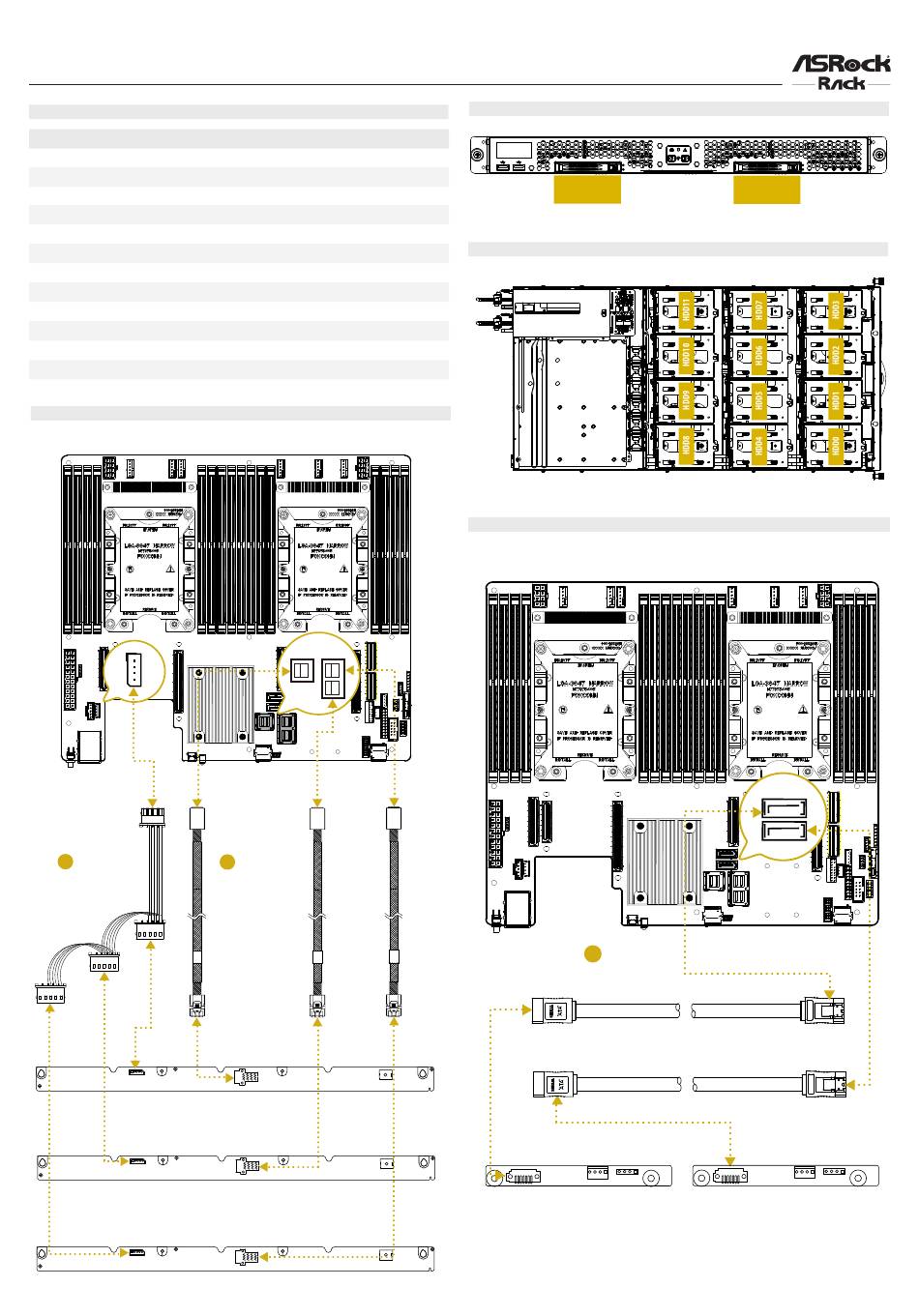

MiniSAS HD Cables / SMBus Y Cable Connection
BPB_SMB
1
A
SMBus Y Cable,
MB to BPB,
650mm
3.5" HDD Backplane (BPB) 3 (HDD8~HDD11)
3.5" HDD Backplane (BPB) 2 (HDD4~HDD7)
3.5" HDD Backplane (BPB) 1 (HDD0~HDD3)
Motherboard (MB)
SSATA_2_5 SATA_0_7
B
MINISAS HD Cables,
MB to BPB
700mm
880mm
System Front View (2 x 2.5" HDD)
2.5" HDD0

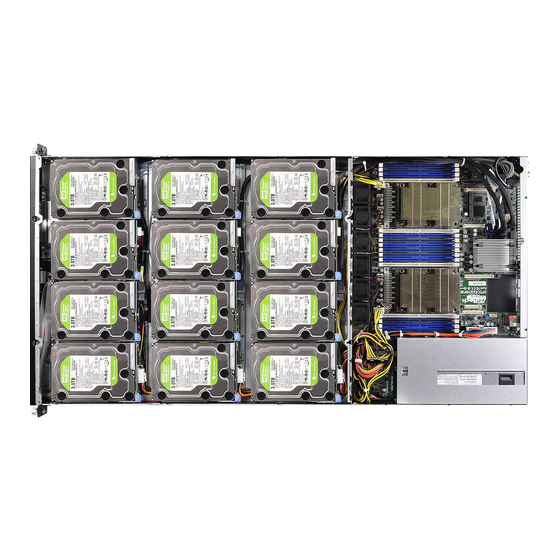

System Top View (12 x 3.5" HDD)
SATA Cables Connection
1040mm
2.5" HDD Backplane (BPB) (HDD0)
2.5" HDD1
Motherboard (MB)
C
SATA Cables,
MB to FPB,
1140mm
2.5" HDD Backplane (BPB) (HDD1)
SSATA_0
SSATA_1
