ASROCK Rack 1U4LW-ICX/2T Quick Installation Manual

*15G065226000AK*
P/N: 15G065226000AK V1.0
Quick Installation Guide
1U4LW-ICX/2T
Cable List
No. Description
1 MiniSAS HD to SATA Cable; L=550mm
2 System Fan Cable (4028 H/S FAN W/1*4P); L=150mm
3 System Fan Cable (4028 H/S FAN W/1*4P); L=150mm
4 System Fan Cable (4028 H/S FAN W/1*4P); L=150mm
5 System Fan Cable (4028 H/S FAN W/1*4P); L=150mm
6 USB 3.0 Cable; L=500mm

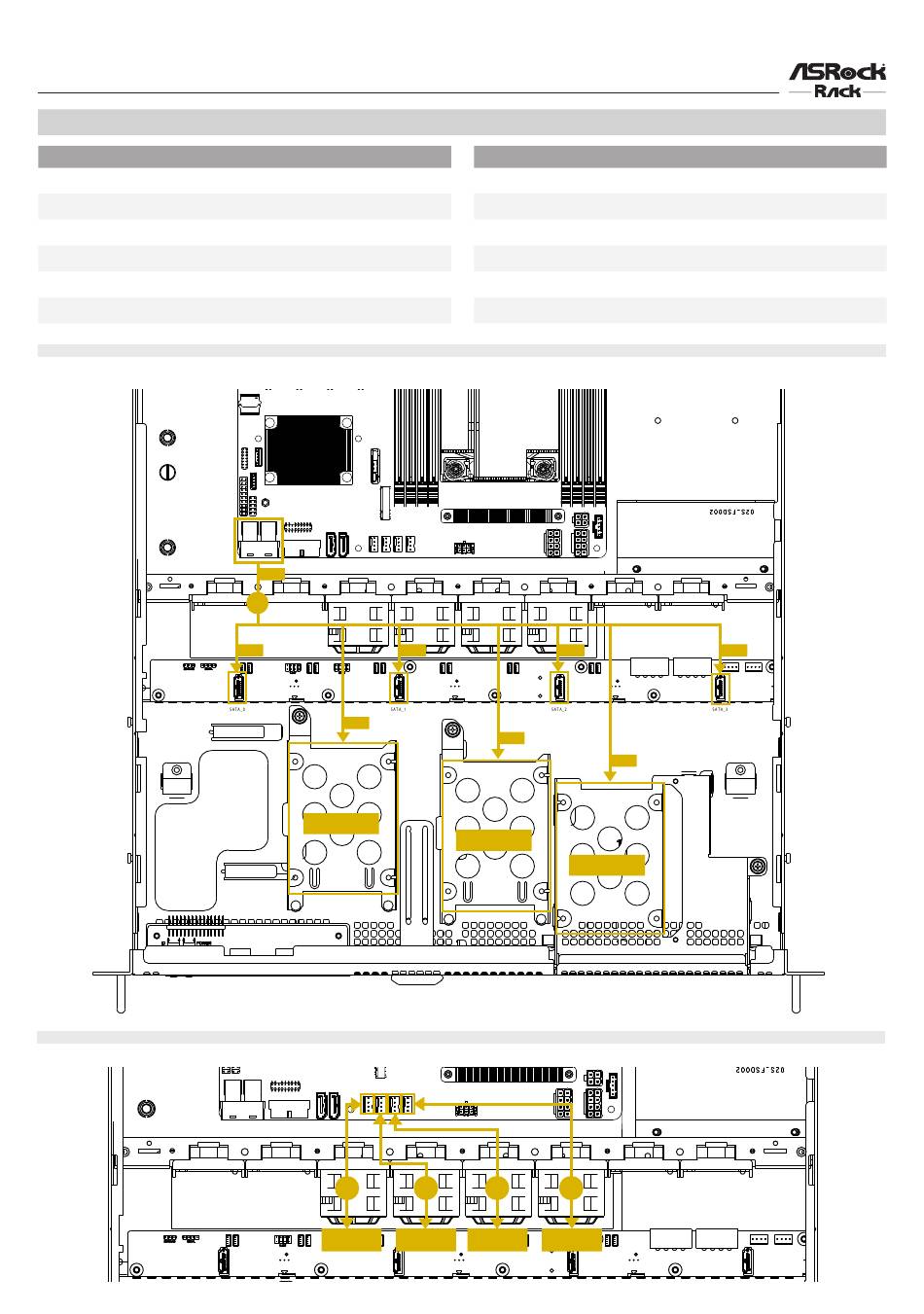

SATA Cable Connections
*The illustrations in this Quick Installation Guide are for references only. The actual product may be slightly different by SKU.
Fan Cable Connections
Serverboard
P0
1
P1 P2
P6
2.5" HDD1
2
FAN4 FAN3
No. Description
7 Front Panel Cable (PH2.54 2*13P to 4*CONN-R); L=800mm
8 4P(3.0) to 24P(4.2) Power Cable; L=200mm
9 ATX 8PIN Cable from PSU (P2)
10 ATX 8PIN Cable from PSU (P3)
11 ATX 24P Power Cable from PSU (P1)
12 Molex 4P Power Cable from PSU (P5 & P6)
P3
P7
2.5" HDD2
2.5" HDD3
3 4 5
FAN2 FAN1
P4
BPB
P8
