ComPAC Installation guide
Lifting instructions

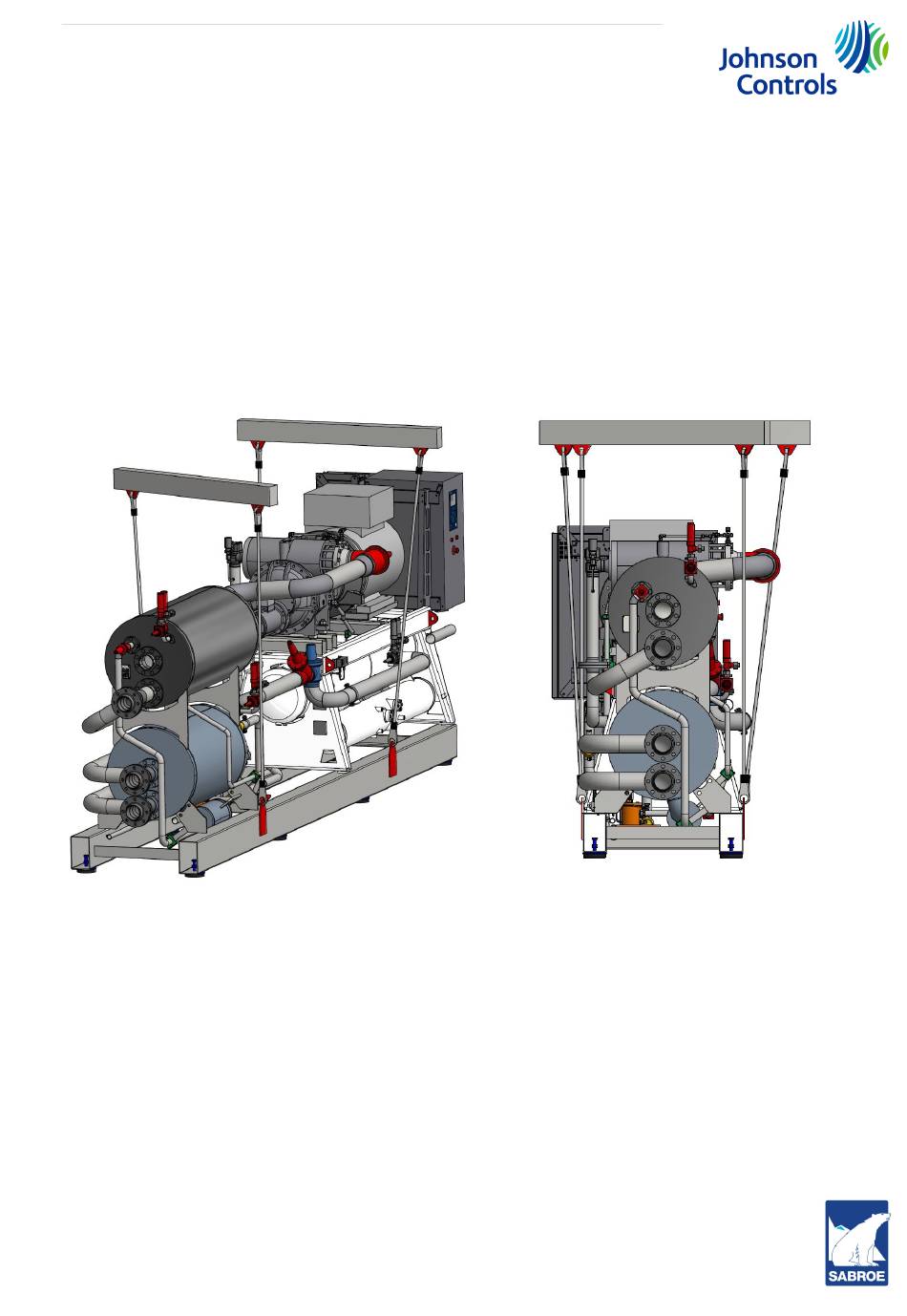

Lifting eyes are welded on the base frame of the ComPAC. They are clearly marked with red
paint. The ComPAC must be lifted in these lifting eyes only, see Fig. 1 and Fig. 2.
Note: Lifting eyes are mounted on the compressor unit but these lifting eyes must NOT be
used to lift the ComPAC chiller unit.
Always use lifting yokes when handling the chiller to avoid damaging pipes, valves, insulation
and other components. Check that the crane, lifting yokes and steel wire are approved lifting
devices and have the necessary strength to lift the ComPAC.
To avoid damaging the chiller unit, some of the steel wires must be angled while lifting the unit
as shown in Fig. 1 and Fig. 2.
The exact weight and centre of gravity of the ComPAC is shown in the GA drawing.
Fig. 2
Fig. 1
Installation guide - ComPAC
011829 en 2022.08
3/7
