Planning the machine room

When planning the machine room, it is important to make sure that there is enough space
around the plant to allow repairs and maintenance tasks to be carried out without problems.

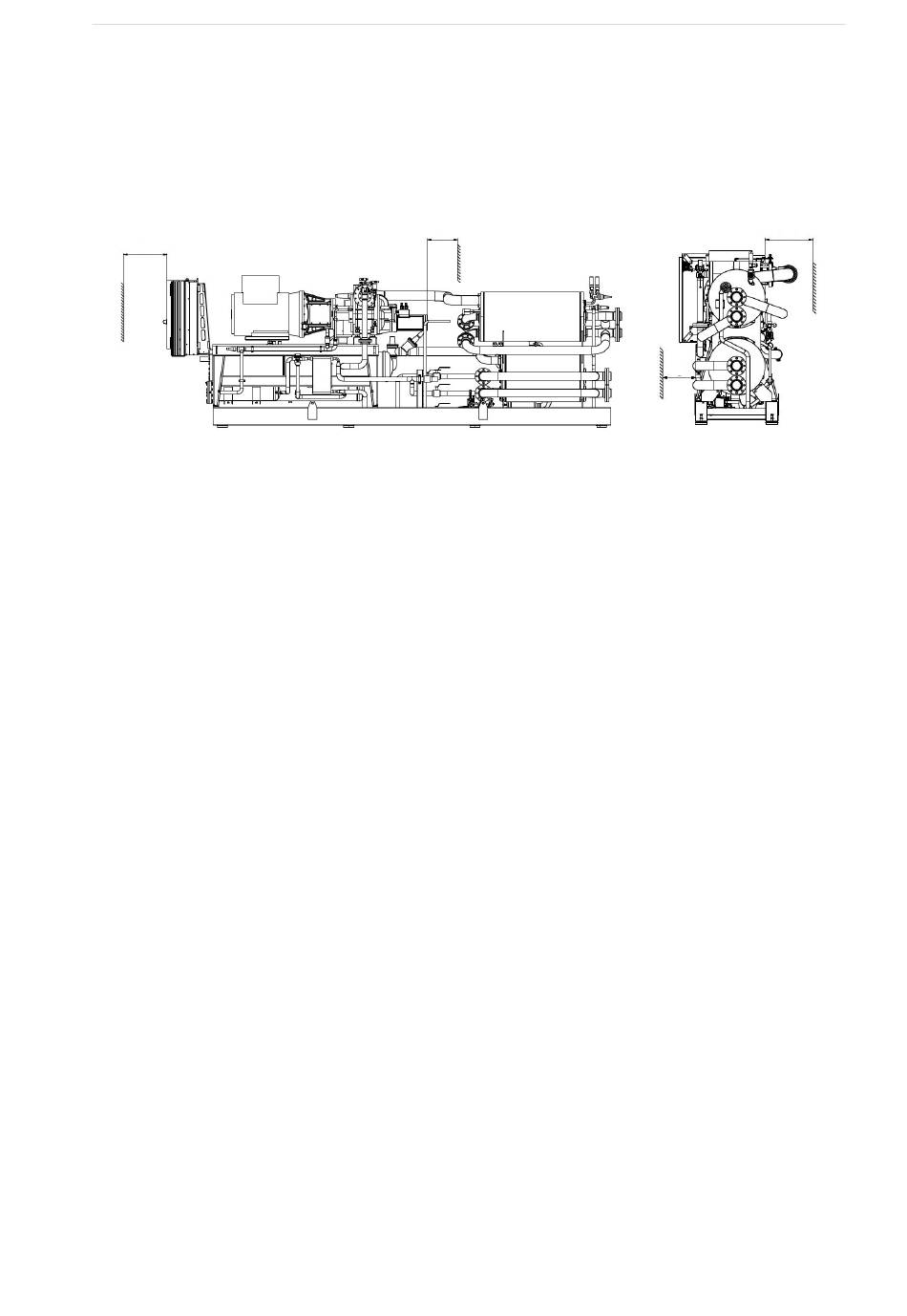

Fig. 3 shows the minimum spacing in millimetre.
A
Fig. 3
A) For operation and opening of the electrical panel
B) For removal of the Vi slide
C) For maintenance
For operating Unisab III
D)
The foundation must have the necessary bearing strength and be as plane as possible.
