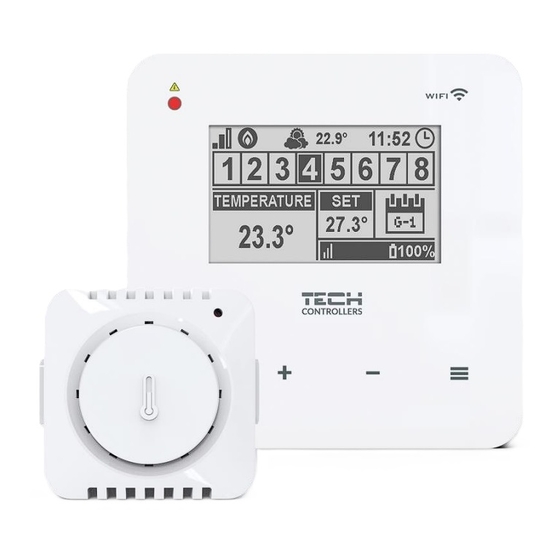

Summary of Contents for Tech Controllers EU-WiFi 8S p

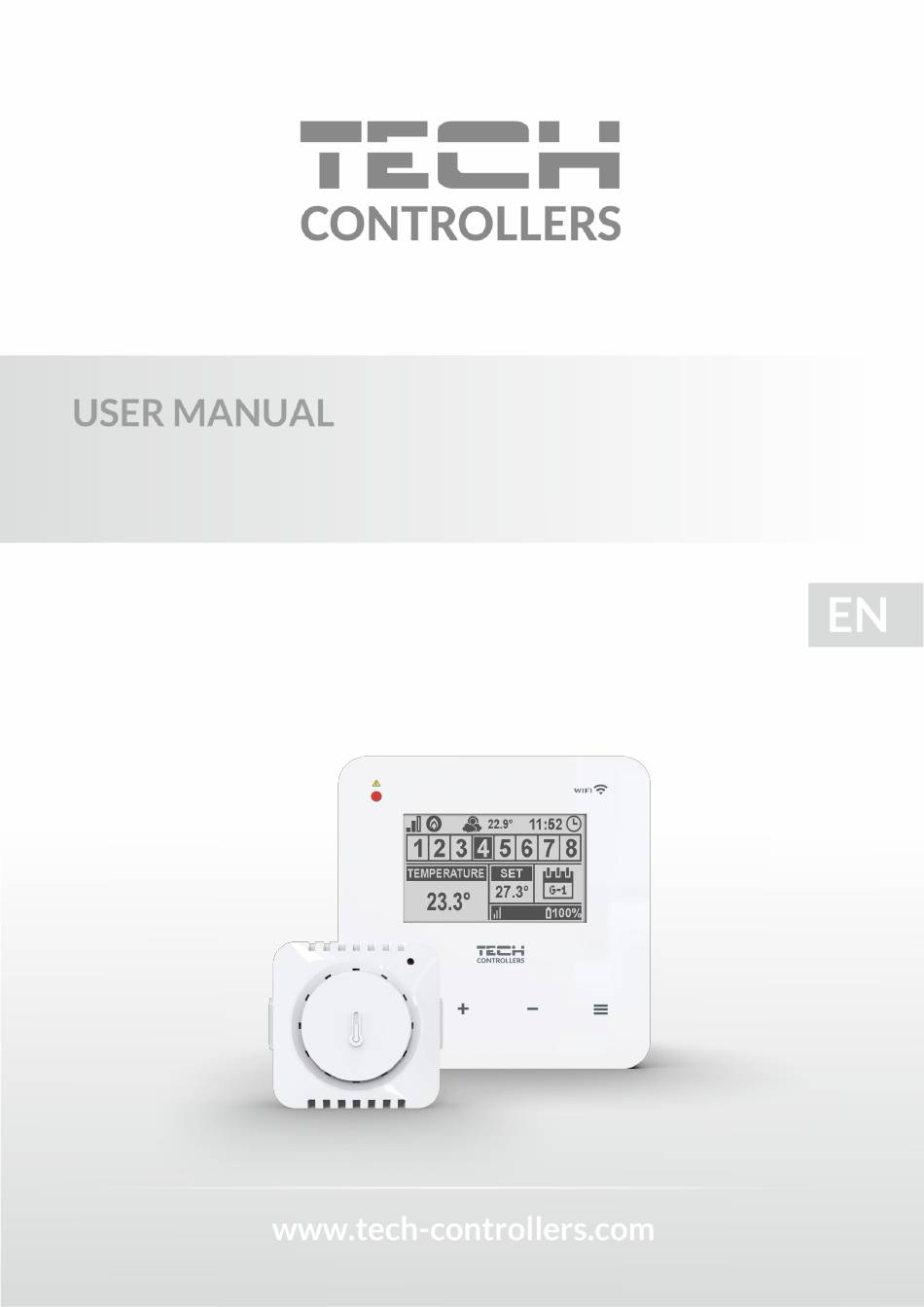

  • Page 1 EU-WiFi 8S p...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety ..................................4 Device description ..............................5 III. Principle of operation ..............................5 How to install the controller ............................. 6 First start-up ................................8 How to configure internet connection ........................9 How to configure the external sensor EU-C-8ZR ...................... 9 How to configure temperature sensors and room regulators .................
  • Page 3 Software version ..............................21 How to control the heating system online ......................21 Home tab ................................22 Zones tab ................................26 Statistics tab ................................26 Settings tab ................................27 Software update ..............................28 Technical data ................................28 XII. Protections and alarms ............................29 JG.11.08.2022...
  • Page 4: Safety

    SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference.
  • Page 5: Device Description

    III. PRINCIPLE OF OPERATION The EU-WiFi 8S p controller decides if a given zone needs to be heated on the basis of current temperature value sent by the room sensor or the room regulator, as well as the individual operation algorithm of the zone. If heating is necessary, the controller activates the voltage-free contact (or sends a signal via EU-MW-1) which may be used e.g.
  • Page 6: How To Install The Controller

    IV. HOW TO INSTALL THE CONTROLLER The controller should be installed by a qualified person. WARNING Risk of fatal electric shock from touching live connections. Before working on the controller switch off the power supply and prevent it from being accidentally switched on. Remove the back cover and connect the wires.
  • Page 7 heating device...
  • Page 8: First Start-Up

    Connection with the EU-MW-1 module: heating device V. FIRST START-UP In order for the controller to work properly, follow these steps while starting it for the first time: 1. Configure the Internet connection 2. Configure the external sensor (optional) 3. Configure the room sensors, room regulators 4.
  • Page 9: How To Configure Internet Connection

    HOW TO CONFIGURE TEMPERATURE SENSORS AND R OOM REGULATORS To enable EU-WiFi 8S p to control a given zone, it is necessary to provide it with current temperature value. The easiest way is to use the EU-C-8r temperature sensor. If the user wants to be able to change the pre-set temperature value directly from the zone, it is advisable to use EU-R-8b , EU-R-8bw or EU-R-8z room regulator.
  • Page 10: How To Configure Wireless Thermostatic Actuators Stt-868/Stt-869

    HOW TO CONFIGURE WINDOW SENSOR In order to register the sensor, go to EU-WiFi 8S p menu and select the number of the zone where the sensor is to be registered. Next, select Window sensors/Registration and press quickly the communication button on the window sensor.
  • Page 11: Wireless Communication

    VI. WIRELESS COMMUNICATION The EU-WiFi 8S p controller may communicate wirelessly with certain devices: Device Function Configuration EU-C-8r - sending current room sensor should temperature readings registered in a given zone. room temperature sensor EU-R-8b, EU-R-8bw The room regulator should be...
  • Page 12: Main Screen Description

    EU-MW-1 - offering the possibility of The module should be executive module establishing wireless registered in the controller. communication with the main controller or temperature sensor VII. MAIN SCREEN DESCRIPTION LED control light Display EXIT – in the main screen view it is used to open up the screen view selection submenu (WiFi or Zones). In the controller menu it is used to cancel the settings and exit the submenu.
  • Page 13 ➢ MAIN SCREEN DESCRIPTION - ZONES 1. WiFi signal strength 2. Additional device icon – displayed when the device is switched on. 3. External temperature 4. Current time 5. Zone information: • The displayed digit represents the room sensor sending current temperature readings from a given zone. In case of an alarm in a given zone, the screen displays an appropriate message.
  • Page 14 ➢ MAIN SCREEN DESCRIPTION - WIFI 1. Day of the week 2. Current date 3. Current time 4. Signal strength 5. WiFi network name ➢ MAIN SCREEN DESCRIPTION - ZONE 1 1. WiFi signal strength 2. Current time 3. Current date 4.
  • Page 15: Controller Funcions

    VIII. CONTROLLER FUNCIONS BLOCK DIAGRAM - MAIN MENU Registration Pre-set temperature Zones 1-8 Hysteresis Calibration Actuators Window sensors Registration External sensor Signal Battery Calibration Zones Voltage-free contact Activation delay Additional contact Alarms LED control light Voltage-free contact Fitter's menu Heating Software version...
  • Page 16: Zones 1-8

    REGISTRATION The Registration function is available for zones 1-8. Once the room sensor has been switched on and registered in a zone, it will be used by the EU-WiFi 8S p controller. It may also be disabled by deselecting ON.
  • Page 17: Window Sensors

    Example: Pre-set zone temperature: 23˚C Minimum opening: 30% Maximum opening: 90% Range: 5˚C Hysteresis: 2˚C In the above example, the thermostatic valve starts closing at the temperature of 18˚C (pre-set value minus Range: 23-5). The minimum opening is reached when the zone temperature reaches the pre-set value. After reaching the pre-set value, the temperature starts falling.
  • Page 18: External Sensor

    It is possible to connect an external temperature sensor to the controller. The device enables the user to monitor current temperature on the main screen as well as via https://emodul.eu. Once the external sensor has been installed, it must be registered in the EU-WiFi 8S p controller – the registration process is described in detail in First start-up section.
  • Page 19: Fitter's Menu

    FITTER’S MENU WiFi network selection Internet module Network configuration Registration Time lock Protections Lock time PIN code Automatic Time settings Clock settings Date settings Screen view Display contrast Screen settings Screen brightness Language Screen blanking Service menu Screen blanking time Factory settings 6.1.
  • Page 20: Protections

    DHCP, IP address, Subnet mask, Gate address, DNS address and MAC address. • REGISTRATION Select Registration in order to generate the code necessary to register the EU-WiFi 8S p controller at https://emodul.eu – see: First start-up. 6.2.
  • Page 21: Language

    6.5. LANGUAGE This function is used to select the language version of the controller menu. 6.6. SERVICE MENU The parameters available in the service menu should be configured only by qualified fitters and access to this menu is secured with a code. 6.7.
  • Page 22: Home Tab

    Once logged in, go to the Settings tab and select Register module. Next, enter the code generated by the controller (to generate the code, select Registration in the EU-WiFi 8S p controller menu). The module may be assigned a name (in the...
  • Page 23 NOTE No communication message means that the communication with the temperature sensor in a given zone has been interrupted. The most common cause is the flat battery which needs replacing. Tap on the tile corresponding to a given zone to edit its pre-set temperature: Editing the pre-set temperature The upper value is the current zone temperature whereas the bottom value is the pre-set temperature.
  • Page 24 Two types of weekly schedules are available in the EU-WiFi 8S p controller: 1. Local schedule It is a weekly schedule assigned to a particular zone. Once the EU-WiFi 8S p controller detects the room sensor, the schedule is assigned automatically to the zone. It may be edited by the user.
  • Page 25 After selecting the schedule tap on OK and move on to edit the weekly schedule settings: Editing a weekly schedule Editing enables the user to define two programs and select the days when the programs will be active (e.g. from Monday to Friday and the weekend).
  • Page 26: Zones Tab

    ZONES TAB The user may customize the home page view by changing the zone names and the corresponding icons. In order to do it, go to the Zones tab. Zones tab STATISTICS TAB The Statistics tab enables the user to view the temperature charts for different time periods e.g. 24h, a week or a month. It is also possible to view the statistics for the previous months: An example chart...
  • Page 27: Settings Tab

    SETTINGS TAB The Settings tab enables the user to register a new module and change the e-mail address or the password: WiFi-8s Tech: WiFi-8s WiFi-8s WiFi-8s Settings/Module tab Settings/Account tab...
  • Page 28: Software Update

    SOFTWARE UPDATE NOTE Software update shall be conducted only by a qualified fitter. After the software has been updated, it is not possible to restore previous settings. In order to install new software, the controller must be unplugged from the power supply. Next, insert the flash drive with the new software into the USB port.
  • Page 29: Protections And Alarms

    XII. PROTECTIONS AND ALARMS The device supports the following cases within a zone: Alarm Possible cause How to fix it - Place the sensor/regulator in a - No range different place No communication with the - No batteries - Insert batteries to the sensor/regulator sensor/wireless regulator - The batteries are flat The alarm is deactivated automatically...
  • Page 30 - The valve stroke is too big or the - Calibrate actuator again by holding the valve dimensions are not typical communication button until the third - Actuator current sensor is flash of green light damaged - Call the service staff Error #3 - Calibration error 3 - The - The valve stroke is too small or the screw has not been pulled out...
  • Page 31 EU declaration of conformity Hereby, we declare under our sole responsibility that EU-WiFi 8S p manufactured by TECH STEROWNIKI, head-quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market...
