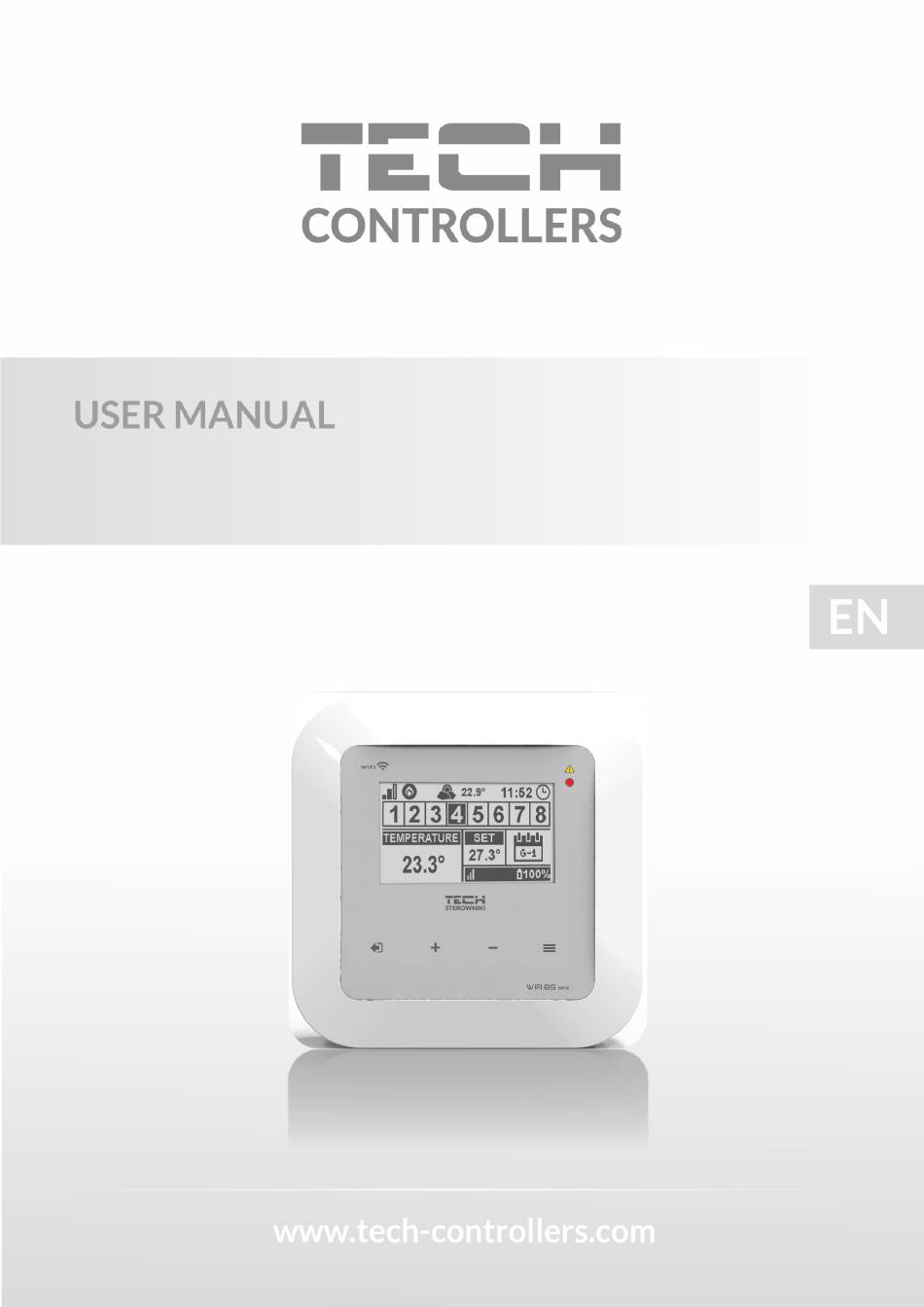

  • Page 1 EU-WiFi 8s mini...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety ..................................4 Device description ..............................5 III. Principle of operation ..............................5 How to install the controller ............................. 6 First start-up ................................8 How to configure internet connection ........................8 How to configure the external sensor C-8ZR......................8 How to configure temperature sensor and room regulators ...................
  • Page 3 Software version ..............................20 How to control the heating system online ......................20 HOME tab ................................21 Zones tab ................................25 Statistics tab ................................25 Settings tab ................................26 Software update ..............................27 Technical data ................................27 XII. Protections and alarms ............................28 KN.11.08.2022...

  • Page 4: Safety

    SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference.

  • Page 5: Device Description

    III. PRINCIPLE OF OPERATION The EU-WiFi 8s mini controller decides if a given zone needs to be heated on the basis of current temperature value sent by the room sensor or the room regulator, as well as the individual operation algorithm of the zone. If heating is necessary, the controller activates the voltage-free contact (or sends a signal via MW-1) which may be used e.g.

  • Page 6: How To Install The Controller

    IV. HOW TO INSTALL THE CONTROLLER The controller should be installed by a qualified person. WARNING Risk of fatal electric shock from touching live connections. Before working on the controller switch off the power supply and prevent it from being accidentally switched on. Remove the controller cover and connect the wires following the diagrams below and the connector labels.
  • Page 7 Connection with the MW-1 module: VER-CT VER-RP VER-RP230 heating device VER-CTZ VER-COO...

  • Page 8: First Start-Up

    HOW TO CONFIGURE TEMPERATURE SENSOR AND R OOM REGULATORS To enable EU-WiFi 8s mini to control a given zone, it is necessary to provide it with current temperature value. The easiest way is to use C-8r temperature sensor. If the user wants to be able to change the pre-set temperature value directly from the zone, it is advisable to use R-8B or R-8bw or R-8z room regulator.

  • Page 9: How To Configure Wireless Thermostatic Actuators Stt-868/Stt-869

    HOW TO CONFIGURE WINDOW SENSOR In order to register the sensor, go to EU-WiFi 8s mini menu and select the number of zone where the sensor is to be registered. Next, select Window sensors/Registration and press quickly the communication button on the window sensor.

  • Page 10: Wireless Communication

    VI. WIRELESS COMMUNICATION The EU-WiFi 8s mini controller may communicate wirelessly with certain devices: Device Function Configuration C-8r - sending current room sensor should room temperature temperature readings registered in a given zone. sensor R-8b, R-8bw sending current zone The room regulator should be registered in a given zone.

  • Page 11: Main Screen Description

    MW-1 - offers the possibility of The module should be executive module establishing wireless registered in the controller. communication with the main controller or temperature sensor. VII. MAIN SCREEN DESCRIPTION Display EXIT – in the main screen view it is used to open up the screen view selection submenu (WiFi or Zones). In the controller menu it is used to cancel the settings and exit the submenu.
  • Page 12  MAIN SCREEN DESCRIPTION – ZONES 1. WiFi signal strength 2. Additional device icon – displayed when the device is switched on. 3. External temperature 4. Current time 5. Zone information:  The displayed digit represents the room sensor sending current temperature readings from a given zone. In case of an alarm in a given zone, the screen displays an appropriate message.
  • Page 13  MAIN SCREEN DESCRIPTION – WIFI 1. Day of the week 2. Current date 3. Current time 4. Signal strength 5. WiFi network name  MAIN SCREEN DESCRIPTION - ZONE 1 1. WiFi signal strength 2. Current time 3. Current date 4.

  • Page 14: Controller Functions

    VIII. CONTROLLER FUNCTIONS BLOCK DIAGRAM - MAIN MENU Registration Pre-set temparature Zones 1-8 Hysteresis Calibration Actuators Window sensors Registration External sensor Signal Battery Calibration Zones Voltage-free contact Activation delay Additional contact Alarms Voltage-free contact Fitter's menu Hreating Software version...

  • Page 15: Zones 1-8

    The Registration function is available for zones 1-8. 2.2. Once the room sensor has been switched on and registered in a given zone, its readings are used by the EU-WiFi 8s mini controller. The sensor may be disabled by deselecting ON.

  • Page 16: Window Sensors

    Example: Pre-set zone temperature: 23˚C Minimum opening: 30% Maximum opening: 90% Range: 5˚C Hysteresis: 2˚C In the above example, the thermostatic valve starts closing at the temperature of 18˚C (pre-set value minus Range: 23-5). The minimum opening is reached when the zone temperature reaches the pre-set value. After reaching the pre-set value, the temperature starts falling.

  • Page 17: External Sensor

    It is possible to connect an external temperature sensor to the controller. The device enables the user to monitor current temperature on the main screen as well as via https://emodul.eu. Once the external sensor has been installed, it must be registered in the EU-WiFi 8s mini controller – the registration process is described in detail in First start-up section.

  • Page 18: Fitter's Menu

    FITTER’S MENU WiFi network selections Internet module Network configuration Registration Time lock Protections Blocking time PIN code Automatic Time settings Time settings Date settings Screen view Display contrast Screen settings Screen brightness Language Screen blanking Service menu Screen blanking time Factory settings 6.1.

  • Page 19: Protections

    DHCP, IP address, Subnet mask, Gate address, DNS address and MAC address.  REGISTRATION Select Registration in order to generate the code necessary to register the EU-WiFi 8s mini controller at https://emodul.eu – see: First start-up. 6.2.

  • Page 20: Language

    The user may also adjust the display contrast as well as the screen brightness. The screen blanking function enables the user to adjust the brightness of a blank screen. Screen blanking time defines the idle time after which the screen goes blank.

  • Page 21: Home Tab

    Once logged in, go to Settings tab and select Register module. Next, enter the code generated by the controller (to generate the code, select Registration in the EU-WiFi 8s mini controller menu). The module may be assigned a name (in the field labelled Module description).
  • Page 22 NOTE ‘No communication’ message means that the communication with the temperature sensor in a given zone has been interrupted. The most common cause is the flat battery which needs replacing. Editing the pre-set temperature Tap on the tile corresponding to a given zone to edit its pre-set temperature The upper value is the current zone temperature whereas the bottom value is the pre-set temperature.
  • Page 23 Pre-set temperature with time limits Tap on Schedule icon to open up the schedule selection screen: Selecting a weekly schedule...
  • Page 24 Two types of weekly schedules are available in the EU-WiFi 8s mini controller: 1. Local schedule It is a weekly schedule assigned to a particular zone. Once the EU-WiFi 8s mini controller detects the room sensor, the schedule is assigned automatically to the zone. It may be edited by the user.

  • Page 25: Zones Tab

    ZONES TAB The user may customize the home page view by changing the zone names and the corresponding icons. In order to do it, go to Zones tab. Zones tab STATISTICS TAB The Statistics tab enables the user to view the temperature charts for different time periods e.g. 24h, a week or a month. It is also possible to view the statistics for the previous months: An example chart...

  • Page 26: Settings Tab

    SETTINGS TAB The Settings tab enables the user to register a new module and change the e-mail address or the password: WiFi-8s mini Tech: WiFi-8s mini (v.2.1.227) WiFi-8s mini WiFi-8s mini Settings/Module tab Settings/Account tab...

  • Page 27: Software Update

    X. SOFTWARE UPDATE NOTE Software update shall be conducted only by a qualified fitter. After the software has been updated, it is not possible to restore previous settings. In order to install new software, the controller must be unplugged from the power supply. Next, insert the flash drive with the new software into the USB port.

  • Page 28: Protections And Alarms

    XII. PROTECTIONS AND ALARMS The device supports the following cases within a zone: Alarm Possible cause How to fix it - Place the sensor/regulator in a different place - No range - Insert batteries to the No communication with the - No batteries sensor/regulator sensor/wireless regulator...
  • Page 29 Error #3 - Calibration error 3 - The - The valve stroke is too small or the screw has not been pulled out valve dimensions are not typical - Replace the batteries enough - the screw meets resistance - Actuator current sensor is damaged - Call the service staff too early - Low battery level...
  • Page 30 EU DECLARATION OF CONFORMITY Hereby, we declare under our sole responsibility that EU-WiFi 8s mini manufactured by TECH STEROWNIKI, head- quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available...
