- Page 1 Horizon Electric Dirt Bike A guide for your ride. IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE. MODELS: JKDB24-BB | JKDB24-BLK...
- Page 3 Jetson's top two riding rules: Be safe. Have fun!
-
Page 4: Table Of Contents
Contents Safety Warnings ................................ 4 Warranty Coverage ..............................6 1. About Your Horizon Product Overview ..............................8 Specs & Features ..............................10 Rider Suitability ..............................10 Online Resources ............................... 11 2. Getting Started Starting Notes ..............................13 Attaching the Handlebar ............................ - Page 5 4. Making Moves Riding ................................... 23 Changing Speed Modes ............................. 24 Using the Brake ..............................25 Maximizing Speed & Run Time ........................... 26 5. Safe Journeying Pre-Ride Safety Checks ............................27 Helmet Positioning ............................. 28 Care & Maintenance ............................29...
-
Page 6: Safety Warnings
Safety Warnings • Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use. • Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition;... - Page 7 • Applying brakes too hard or too suddenly can lock up a wheel, which could cause you to lose control and fall. Sudden or excessive application of the brake may result in injury or death. • If the brake loosens, please adjust with the hexagon wrench, or please contact the Jetson Care Team. • Replace worn or broken parts immediately.
-
Page 8: Warranty Coverage
Your new Jetson product is warranted against defects in materials and workmanship as indicated on ridejetson.com/warranty for a period of time from the date of original retail purchase when used in accordance with Jetson's user manuals (refer to ridejetson.com/support). Under this warranty, you will be able to direct your claims to Jetson even in situations where you purchased the Jetson Product from one of our authorized retailers. -
Page 10: About Your Horizon
1. About your Horizon Product Overview WHEEL (X2; FRONT AND REAR) LIGHTING BUTTON FRAME LIGHTS TIRE VALVE WITH DUST CAP ACCELERATION THROTTLE SEAT (X2; FRONT AND REAR) HANDBRAKE CHARGING PORT WITH COVER FRONT PLATE BATTERY CHARGE DISPLAY SPEED MODE SWITCH... - Page 11 NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT.
-
Page 12: Specs & Features
Specs & Features • PRODUCT DIMENSIONS: 43.3″ (L) X 23.6″ (W) X 27.5″ (H) • MAX SPEED: 15.5 MPH • HANDLEBAR HEIGHT: 31.5″ • MAX RUN TIME: 30 MINS. • SEAT HEIGHT: 21″ • CHARGING TIME: ABOUT 4 HOURS • PRODUCT WEIGHT: 39.4 LBS •... -
Page 13: Online Resources
Online Resources Scan for our most updated Horizon onboarding materials and support resources. -
Page 15: Getting Started
THE DIRECTIONS GIVEN IN THIS MANUAL—RIGHT, LEFT, FRONT/FORWARD, AND REAR/BACK—ARE ORIENTED AS THE RIDER WOULD SEE THEM WHEN SEATED ON THE HORIZON. THE "RIGHT SIDE" OF THE HORIZON, FOR EXAMPLE, IS THE SIDE WHERE THE RIDER’S RIGHT HAND AND FOOT WILL BE. -
Page 16: Attaching The Handlebar
Attaching the Handlebar 1. SEPARATE THE CLAMP BASES (ON WHICH THE LONG SIDE IS FLAT) FROM THE CLAMP TOPS (ON WHICH THE LONG SIDE IS SLIGHTLY ROUNDED.) 2. POSITION THE 2 CLAMP BASES ON THE HANDLEBAR PLATFORM SUCH THAT THE FLAT SIDE IS RESTING ON THE PLATFORM AND THE 2 HOLES IN EACH CLAMP BASE ARE ALIGNED WITH THE 2 HOLES ON EACH SIDE OF THE HANDLEBAR PLATFORM. - Page 17 CONDITIONS ARE MET: • THE BATTERY CHARGE DISPLAY IS ON THE RIGHT SIDE OF THE HORIZON AND THE HANDBRAKE IS ON THE LEFT. • THE TWO GROOVED AREAS AT THE BOTTOM OF THE HANDLEBAR ARE RESTING IN THE CLAMP BASES.
- Page 18 7. ROTATE THE HANDLEBAR WITHIN THE CLAMP BASES UNTIL IT SITS IN A "U" SHAPE WITH THE HAND GRIPS HIGHER THAN THE CENTER AND IS IDEALLY POSITIONED FOR THE RIDER. IMPORTANT: THE HANDLEBAR SHOULD BE POSITIONED SUCH THAT THE HANDBRAKE IS EASY FOR THE RIDER TO REACH AND COMPRESS.
-
Page 19: Charging The Battery
HOURS, EVEN IF THE CHARGING INDICATOR LIGHT IS ILLUMINATED GREEN. AFTER THAT, AND FOR REGULAR CHARGING SESSIONS, CHARGE THE HORIZON UNTIL IT REACHES FULL CHARGE. FOR A FULLY DEPLETED BATTERY, THAT TAKES ABOUT 4 HOURS. 1. PULL OPEN THE CHARGING PORT COVER ON YOUR HORIZON. - Page 20 IMPORTANT CHARGING NOTES: · ONLY USE THE INCLUDED CHARGER. · ALWAYS KEEP THE CHARGING PORT CLOSED WHEN NOT ACTIVELY CHARGING YOUR HORIZON. · NEVER TURN ON YOUR HORIZON WHILE IT IS CHARGING. · FOR BEST BATTERY HEALTH, CHARGE THE BATTERY FULLY DURING EACH CHARGING SESSION—ABOUT 4 HOURS.
-
Page 21: Tire Pressure & Inflation
THE DUST CAP BY TWISTING IT CLOCKWISE ONTO THE VALVE. 4. REPEAT WITH THE OTHER TIRE. DUST CAP IMPORTANT: ONLY USE A MANUAL AIR PUMP TO INFLATE THE TIRES ON YOUR HORIZON. NEVER USE AN AIR COMPRESSOR; DOING SO MAY CAUSE THE TIRE TUBES TO POP. -
Page 22: Features & Functions
Powering On & Off PRESS AND HOLD THE POWER BUTTON FOR 3 SECONDS TO TURN YOUR HORIZON ON OR OFF. TO PRESERVE BATTERY POWER, ALWAYS REMEMBER TO POWER YOUR HORIZON OFF WHEN MAKING A PIT STOP OR PUTTING IT AWAY FOR THE NIGHT. -
Page 23: Checking Battery Charge Level
YOU CAN KEEP TABS ON YOUR BATTERY’S CHARGE LEVEL BY LOOKING TO THE INDICATOR LIGHTS ON THE HANDLEBAR. NUMBER OF LIGHTS ILLUMINATED LESS THAN 25 % CHARGE PERCENTAGE 76 - 100% 51 - 75% 26 - 50% (CHARGE YOUR HORIZON NOW!) Activating the Lights QUICK-PRESS THE LIGHTING BUTTON TO TURN THE LIGHTS ON OR OFF. -
Page 24: Using The Kickstand
KICKSTAND Using the Kickstand TO PROP THE HORIZON UPRIGHT ON THE KICKSTAND, PIVOT THE KICKSTAND DOWN AND GENTLY TILT YOUR HORIZON ONTO IT. TO RAISE THE KICKSTAND, PIVOT IT BACK UP. IMPORTANT: ALWAYS RAISE THE KICKSTAND BEFORE RIDING. -
Page 25: Making Moves
ALWAYS RIDE WITH YOUR FEET RESTING ON THE FOOT PEGS. NEVER RIDE WITH THEM DANGLING OFF THE SIDE OF THE HORIZON. · THE HORIZON SHOULD NOT BE RIDDEN IN AREAS DENSE WITH PEDESTRIANS OR ON ROADWAYS WITH CARS AND VEHICLE TRAFFIC. TO START AND ACCELERATE: SLOWLY ROTATE THE TWIST THROTTLE TOWARDS YOU. -
Page 26: Changing Speed Modes
Changing Speed Modes THERE ARE 3 SPEED MODES, EACH OF WHICH HAS A MAXIMUM SPEED AT WHICH THE HORIZON CAN TRAVEL. TO CHANGE SPEED MODES, FLIP THE SPEED MODE SWITCH. MODE 1 MODE 2 MODE 3 UP TO 5 MPH UP TO 7.5 MPH... -
Page 27: Using The Brake
Using the Brake SQUEEZE THE HANDBRAKE GENTLY TO SLOW DOWN; SQUEEZE MORE FORCEFULLY TO COME TO A COMPLETE STOP. TO AVOID ABRUPT MOVEMENTS, ALWAYS SQUEEZE THE HANDBRAKE GRADUALLY. -
Page 28: Maximizing Speed & Run Time
· RIDING STYLE – FREQUENT STARTING AND STOPPING WILL REDUCE RUN TIME. · AIR TEMPERATURE – THE IDEAL TEMPERATURE FOR RIDING AND STORING THE HORIZON IS BETWEEN 50 - 75°F (10 - 23.9°C). · INCLINE – THE MOTOR HAS TO WORK HARDER WHEN YOU RIDE UPHILL, AND GOING AGAINST GRAVITY MAKES IT HARD TO HIT THE MAXIMUM ACHIEVABLE SPEED. -
Page 29: Safe Journeying
5. Safe Journeying Pre-Ride Safety Checks CONDUCT THESE IMPORTANT SAFETY CHECKS BEFORE EVERY JOURNEY: BRAKE MAKE SURE THE BRAKE WORKS PROPERLY SUCH THAT: · THE HANDBRAKE LEVER IS SECURED TO THE HANDLEBAR AND LUBRICATED SO IT CAN COMPRESS EASILY. · THE BRAKE SMOOTHLY AND SAFELY BRINGS THE WHEEL TO A STOP WHEN THE HANDBRAKE IS COMPRESSED. -
Page 30: Helmet Positioning
Helmet Safety A HELMET SHOULD BE WORN BY THE RIDER AT ALL TIMES. PROPER POSITIONING: IMPROPER POSITIONING: THE FOREHEAD IS COVERED THE FOREHEAD IS EXPOSED. BY THE HELMET. A FALL COULD RESULT IN SERIOUS INJURY. * WEAR A HELMET, APPROPRIATE CLOTHING, SHOES, AND SAFETY GEAR. AVOID CLOTHING THAT CAN GET CAUGHT INTO OR UNDER THE WHEELS. -

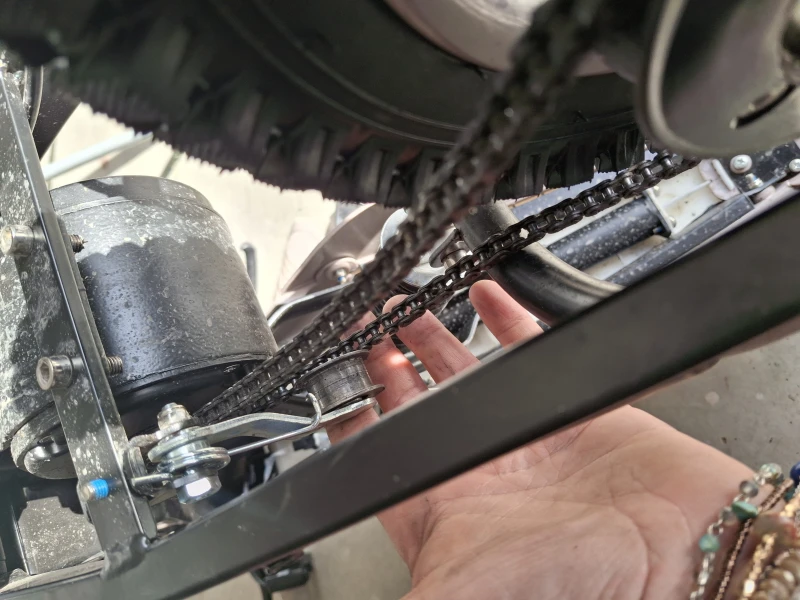

Page 31: Care & Maintenance
AT A TEMPERATURE BETWEEN 50 AND 75°F. CLEANING YOUR HORIZON DO NOT SPRAY OR APPLY WATER DIRECTLY ONTO TO THE HORIZON. WATER CAN CAUSE DAMAGE TO THE WIRING, BATTERY COMPARTMENT, AND LIGHTS, AS WELL AS DETERIORATION OF THE FRAME—ALL OF WHICH COULD CAUSE A MALFUNCTION THAT PUTS RIDER SAFETY AT RISK. - Page 33 Stay connected. Be sure to follow @ridejetson on social media to learn about fantastic offers, giveaways, and all the latest Jetson news. Loving your ride? Then be sure to leave a review at ridejetson.com/reviews. We can’t wait to hear from you!
- Page 34 Date Code: 07/2023 Document Edition: v1.1 © 2023, JETSON. ALL RIGHTS RESERVED. Manufactured by JETSON ELECTRIC BIKES LLC. No portion of this document, including shape, copy, graphics, and design, may be reproduced or transmitted in any form or by any means.
