Summary of Contents for Jetson JBEAM

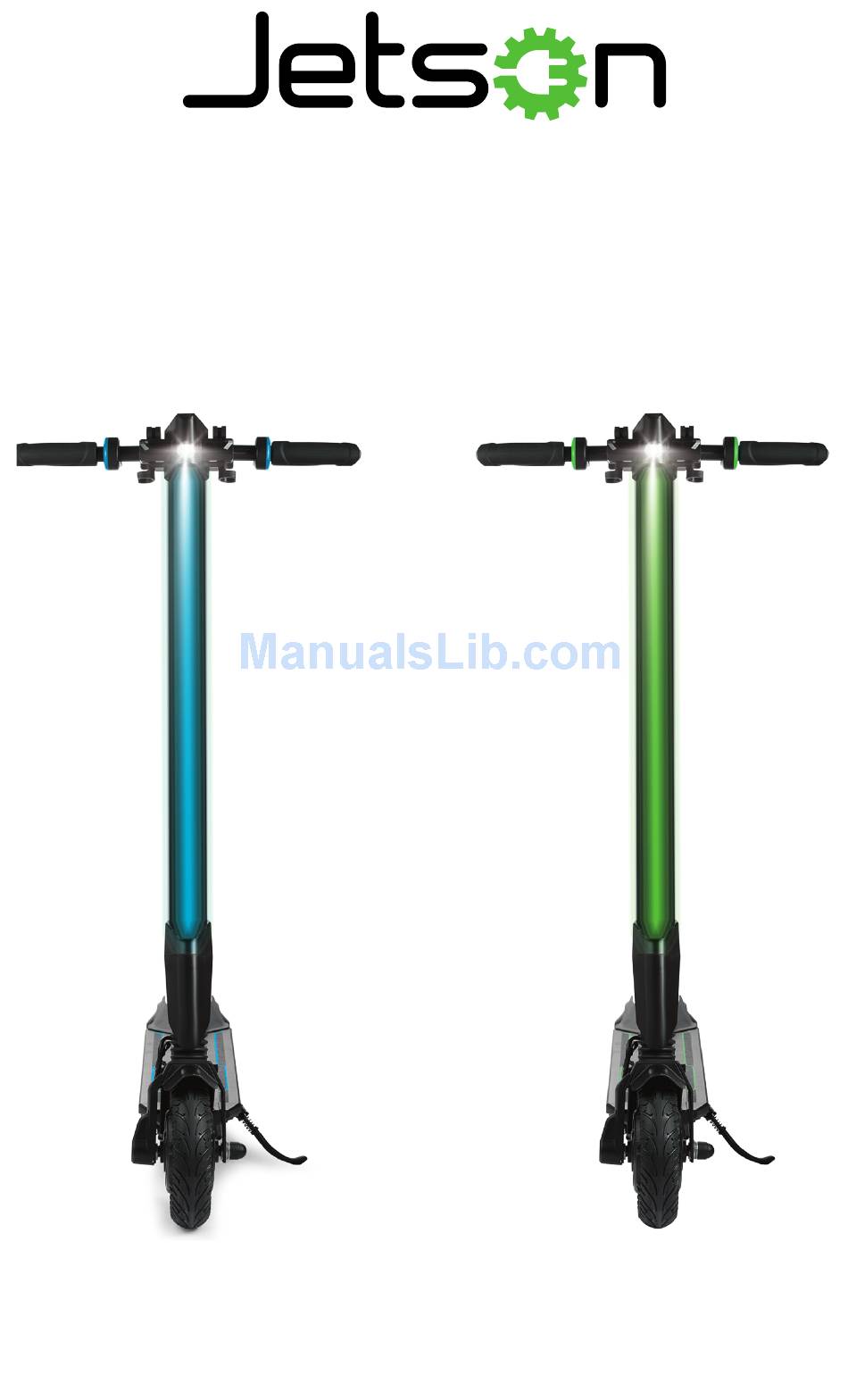

- Page 1 BEAM ELECTRIC FOLDING SCOOTER -MANUAL- MODEL#: JBEAM | VERSION: 082017...
-
Page 2: Table Of Contents
G. Turning Headlight On/Off H. LCD Display I. Bluetooth Function Connecting to Bluetooth Connecting to the Ride Jetson App Mode Setting in the Ride Jetson App J. Pulsing Beam Light K. Rear Wheel Light L. How to Use M. Folding N. -
Page 3: Introduction
Beam. In order to avoid danger caused by collisions, falls, and loss of control, please use caution and learn how to ride the Jetson Beam safely. Jetson and authorized dealers cannot be held liable for injury or damage caused from riding the Jetson Beam. -
Page 4: Features And Specs
FEATURES & SPECS MOTOR: 250W MOTOR TYPE: BATTERY: 24v, 4.3Ah (LG BATTERY) CHARGING TIME: UP TO 3 HOURS MAX RANGE: 14 MILES MAX SPEED: 12 MPH BLUE TOOTH: VERSION 4.0 WEIGHT LIMIT: 250 LBS PRODUCT WEIGHT: 25.15 LBS BRAKE: FRONT: ELECTRIC BRAKE. REAR: FOOT BRAKE WHEEL SIZE: FRONT: 8”... -
Page 5: Safety Warnings
• Do not wear headphones or use a cell phone while operating the Jetson Beam. • Do not operate the Jetson Beam in wet or icy weather, and never immerse the product in water. The components can be damaged by water and create other unsafe conditions. -
Page 6: Included In The Box
INCLUDED IN THE BOX With its stylish and futuristic appearance, and powerful lithium battery, the Jetson Beam is created to give you a wonderful riding experience. NOTE: Actual product may differ from images shown in manual. Easy Grip Handles... -
Page 7: Opening And Unfolding
OPENING AND UNFOLDING YOUR JETSON BEAM Step 1 Open the Folding Lock Lever, then press the Release Button while gently lifting the handlebar away from the deck. Once you hear a “click” sound, lock the Folding Lock Lever. The handlebar stem should now be secure. - Page 8 Step 2 Open Folding T-bar Latch by lifting upwards, and unfold one handlebar at a time. Once unfolded, push handlebars in, and bring Folding T-bar Latch back to its original position by pushing down. Make sure handlebars and Fold- ing T-bar Latch are secure before continuing. Open Folding T-bar Latch Bring Folding T-bar Latch Back to Original Position...
-
Page 9: Turning The Jetson Beam On/Off
OVERVIEW TURNING YOUR JETSON BEAM SCOOTER ON AND OFF To turn your Jetson Beam Scooter on, place one foot on scooter and kick off with your other foot to put it in motion, while simultaneously holding down the thumb throttle (on right side of handlebar) for 5 seconds. -
Page 10: Bluetooth Function
Battery life indicator Bluetooth 4.0 onnects to Ride Jetson App Your Jetson Beam is Bluetooth 4.0 enabled, so you can pair it with Jetson’s Ride Jetson app on your personal Bluetooth enabled device. It can be paired with Androids and iPhones. -
Page 11: Pulsing Beam Light
To pair your Jetson Beam with your Bluetooth enabled device, follow these steps: 1. Turn on the Jetson Beam so that it will become discoverable on your device. 2. Make sure the Bluetooth function in your handheld device and in the Jetson Beam is turned on. - Page 12 Once properly attached, you can use the auxiliary wheels to roll your Jetson Beam when it’s not in use. Simply fold up the Beam and lift it up by the handlebar (in a position where the wheels are on the bottom and the handlebar is on top), with the auxiliary wheels being the only wheels that should be touching the ground.
-
Page 13: How To Use
NOTICE: Riding, like most sports, involves risk of injury and damage. By choosing to ride the Jetson Beam the responsibility and all inherent risk is on you. It is crucial that you know, understand and act according to safety rules. -
Page 14: Folding
SAFE DRIVING 1. Get to know the Jetson Beam before driving it. Test your control over it. Make your turns slowly and cautiously, and give yourself stopping distance. 2. Your driving capability - to gain control over your scooter, practice your first ride on the Jetson Beam in an open space with no obstacles to disturb you. -
Page 15: Operation
(full/empty) only, and does not give a precise indication to the battery status. • If storing the Jetson Beam for long periods of time, make sure you store it with a fully charged battery, and make sure to charge it once a month. - Page 16 It is dangerous to use the Jetson Beam when plugged into an AC outlet. Electrical shock can cause seri- ous injury and damage the scooter. Do not attempt to open the battery. Do not...
-
Page 17: Care And Maintenance
(above 50 degrees Farenheit) for charging. • To prevent dust, cover the Jetson Beam when storing. • Store the Jetson Beam indoors, in a dry and suitable temperature. • Do not leave the Jetson Beam plugged into the charger for long periods of time. MAINTENANCE The Jetson Beam was assembled by professional technicians. -
Page 18: Warranty
• Jetson makes no warranty with respect to products or trade accessories ® not made by Jetson , including, but not limited to, motors, tires, wheels and ® batteries, such products or trade accessories, such items being subject to the original manufacturer’s warranty, if any. -
Page 19: Product Registration
Email: ______________________________________________________________________________ Home Phone: ___________________________ Gender: _____________________________ Purchase Date: _________________________ Purchased From: __________________________ Serial Number: ______________________________________________________________________ Is this your first Jetson product? ______________________________________________________ Other similar product owned before: _________________________________________________ Why did you buy this product?: For myself For my child...
