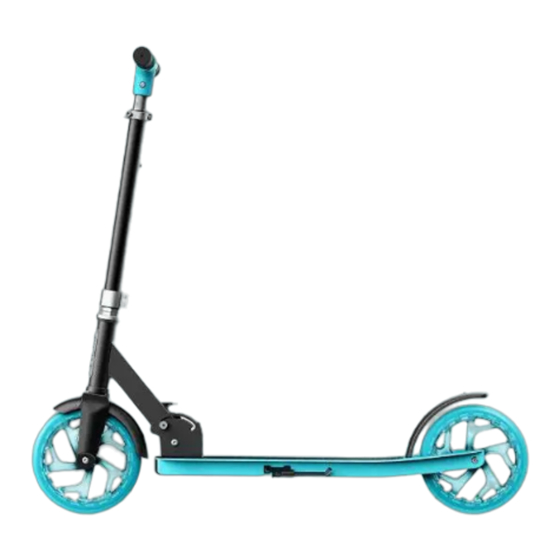

- Page 1 Big Wheel Kick Scooter. A guide for your ride. IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE. MODEL SKUS: JHEX-BLU | JHEX-PNK | JHEX-RED | JHEX-GRN | JHEX-ABL | JHEX-RGD | JHEX-SGR...
- Page 3 Jetson's top two riding rules: Be safe. Have fun!
-
Page 5: Table Of Contents
Contents Safety Warnings ........................4 Warranty Coverage . -
Page 6: Safety Warnings
Safety Warnings • Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use. • Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition;... -
Page 7: Warranty Coverage
• Prolonged exposure to UV rays, rain and the elements may damage the enclosure materials, store indoors when not in use. MODIFICATIONS Do not attempt to disassemble, modify, repair, or replace the unit or any components of the unit without instruction from Jetson Customer Care. This will void any warranty, and can lead to malfunctions which may cause injury. -
Page 8: Product Overview
Product Overview 1. HANDLEBAR* 2. STEM CLAMP (SOME VERSIONS) 3. FRONT WHEEL 4. FOLDING LEVER 5. KNOB 6. LOCKING CLAMP 7. KICKSTAND 8. DECK 9. REAR FOOT BRAKE 10. REAR WHEEL * NOT PRE-ATTACHED; REQUIRES SET-UP TOOL INCLUDED (DEPENDENT ON MODEL): 4MM ALLEN KEY 2-BIT PHILLIPS-HEAD SCREWDRIVER (A) AND... - Page 9 5 6 (OPPOSITE SIDE; NOT SHOWN) NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT.
-
Page 10: Product Specs
Product Specs · WEIGHT LIMIT: 220 LB · PRODUCT WEIGHT: 9.2 LB · WHEEL SIZE: 8” · FOLDED DIMS(LxWxH): 31.7” × 15.6” × 12.4” · UNFOLDED DIMS (LxWxH): 35.6” × 15.6” × 35.6” · DECK DIMS (LxW): 23.2” × 6” ·... -
Page 11: Online Resources
Online Resources Scan for our most updated Hex onboarding materials and support resources. -
Page 12: Getting Started
1. Getting Started Starting Notes · REMOVE ALL PROTECTIVE PACKAGING PIECES PRIOR TO BEGINNING ASSEMBLY, INCLUDING THAT AT THE TOP OF THE STEM. · THE DIRECTIONS GIVEN IN THIS MANUAL—RIGHT, LEFT, FRONT/FORWARD, AND REAR/BACK—ARE ORIENTED AS THE RIDER WOULD SEE THEM WHEN STANDING ON THE SCOOTER. THE "RIGHT SIDE" OF THE SCOOTER, FOR EXAMPLE, IS THE SIDE WHERE THE RIDER’S RIGHT HAND WILL BE. -
Page 13: Unfolding & Folding The Scooter
Unfolding & Folding the Scooter WHEN TO UNFOLD: FOR ASSEMBLY AND RIDING WHEN TO FOLD: FOR STORAGE AND TRANSPORT UNFOLDED FOLDED... - Page 14 1. HOLDING THE LOCKING LATCH STEADY WITH ONE HAND, USE THE OTHER HAND TO LOOSEN THE KNOB BY TURNING IT COUNTERCLOCKWISE FOR 2 - 3 ROTATIONS. LOCKING LATCH *OPPOSITE SIDE OF SCOOTER KNOB...
- Page 15 2. PULL OPEN THE LOCKING LATCH. LOCKING LATCH...
- Page 16 3. PULL THE FOLDING LEVER UP TOWARDS THE TOP OF THE STEM. HOLD IT THERE WHILE YOU RAISE THE STEM UPRIGHT (TO UNFOLD THE SCOOTER) OR LOWER THE STEM TOWARDS THE DECK (TO FOLD THE SCOOTER.) 4. ENSURE THAT THE STEM "CLICKS" INTO PLACE IN THE FOLDED OR UNFOLDED POSITION. NOTE: PRIOR TO ASSEMBLY (SECTION 1.3), HANDLEBAR WILL NOT YET BE ATTACHED.
- Page 17 5. RELEASE THE FOLDING LEVER DOWN. 6. HOLD THE LOCKING LATCH STEADY WITH ONE HAND WHILE YOU TIGHTEN THE KNOB BY TURNING IT CLOCKWISE. 7. PUSH THE LOCKING LATCH CLOSED. 8. CHECK THAT THE STEM IS SECURE. FOLDING LEVER LOCKING LATCH KNOB *OPPOSITE SIDE OF SCOOTER...
-
Page 18: Assembling The Handlebar
Assembling the Handlebar DEPENDENT ON THE DATE OF PRODUCTION OF YOUR HEX, YOUR HANDLEBAR WILL NEED TO BE ASSEMBLED ONE OF TWO WAYS. MATCH YOUR HANDLEBAR TO THE ONE BELOW, THEN FOLLOW THE CORRESPONDING INSTRUCTIONS. UNFOLD THE SCOOTER SO THAT THE STEM IS UPRIGHT (SEE SECTION 1.2) AND PROP THE SCOOTER ONTO ITS KICKSTAND (SEE SECTION 2.3) PRIOR TO BEGINNING ASSEMBLY. - Page 19 HANDLEBAR ASSEMBLY 1. REMOVE THE BOLTS FROM THE TOP OF THE HANDLEBAR CLAMP BY TURNING THEM COUNTERCLOCKWISE WITH THE 4MM ALLEN KEY. 4MM ALLEN KEY BOLT HANDLEBAR CLAMP...
- Page 20 2. POSITION THE HANDLEBAR ON THE CLAMP BASE. ALIGN THE HOLES IN THE TOP OF THE HANDLEBAR CLAMP AND THE HANDLEBAR WITH THE PRE-DRILLED HOLES IN THE BOTTOM OF THE HANDLEBAR CLAMP. 3. INSERT THE BOLTS THROUGH THE TOP OF THE HANDLEBAR CLAMP, HANDLEBAR, AND THE BOTTOM OF THE HANDLEBAR CLAMP BY TURNING EACH ONE CLOCKWISE WITH THE ALLEN KEY.
- Page 21 4. FULLY TIGHTEN THE BOLTS WITH THE ALLEN KEY. CHECK THAT THE HANDLEBAR IS SECURE.
- Page 22 HANDLEBAR ASSEMBLY 1. UNSCREW THE PRE-ATTACHED BOLT FROM THE NUT IN THE STEM BY TURNING IT CLOCKWISE WITH THE SCREWDRIVER TIP OF THE 2-BIT TOOL. (YOU MAY HAVE TO HOLD THE NUT STEADY WITH A FINGER IN ORDER TO LOOSEN AND REMOVE THE BOLT.) SET THE HARDWARE ASIDE.
- Page 23 2. POSITION THE HANDLEBAR BASE OVER THE TOP OF THE STEM SUCH THAT THE RAISED LINE ON THE INSIDE OF THE HANDLEBAR BASE IS IN LINE WITH THE INDENTED CHANNEL ON THE TOP OF THE SCOOTER STEM. HANDLEBAR RAISED LINE *INSIDE OF HANDLEBAR BASE INDENTED CHANNEL STEM...
- Page 24 3. SLIDE THE HANDLEBAR ONTO THE SCOOTER STEM. 4. PUSH DOWN AND ADJUST UNTIL THE HOLES IN THE SIDES OF THE HANDLEBAR BASE ARE ALIGNED WITH THE HOLES ON THE SIDES OF THE STEM. HANDLEBAR HANDLEBAR HOLES STEM HOLES STEM *AS VIEWED FROM RIDING POSITION...
- Page 25 5. INSERT THE BOLT THROUGH THE ALIGNED HOLES ON THE RIGHT-HAND SIDE OF THE HANDLEBAR UNTIL THE END OF IT IS VISIBLE THROUGH THE LEFT-SIDE HOLES. IMPORTANT: PLACE THE BOLT ON THE RIGHT SIDE WHEN FACING THE HANDLEBAR FROM THE RIDING POSITION. 6.
-
Page 26: Adjusting The Height Of The Handlebar
4MM ALLEN KEY TIP BOLT Adjusting the Height of the Handlebar STEM CLAMP LATCH 1. OPEN THE STEM CLAMP LATCH. 2. LOOSEN THE BOLT OPPOSITE THE LATCH BY TURNING IT COUNTERCLOCKWISE WITH THE 4MM ALLEN KEY. TROUBLESHOOTING: IF YOU CANNOT OPEN OR CLOSE THE LATCH, THE BOLT ON THE CLAMP MAY BE TOO TIGHT. - Page 27 3. WHILE PRESSING IN THE STEM PIN, LIFT OR LOWER THE HANDLEBAR UNTIL THE PINK CLICKS INTO ANOTHER STEM PIN HOLE. STEM PIN HOLE STEM PIN...
- Page 28 4MM ALLEN KEY TIP BOLT 4. CLOSE THE STEM CLAMP LATCH AND TIGHTEN THE BOLT BY TURNING IT CLOCKWISE WITH THE ALLEN KEY TIP. 5. CHECK THAT THE HANDLEBAR IS SECURE. STEM CLAMP LATCH CAUTION: THE STEM PIN ALONE WILL NOT KEEP THE HANDLEBAR STEM SECURE.
-
Page 29: Making Moves
2. Making Moves Riding the Scooter 1. PACE ONE FOOT ON THE FRONT OF THE DECK FACING FORWARD. 2. USE THE BACK FOOT TO PUSH OFF THE GROUND AND PROPEL THE SCOOTER FORWARD. TO TURN: ROTATE THE HANDLEBAR TO THE LEFT OR RIGHT. TO COAST: PLACE THE KICKING FOOT ON THE DECK BEHIND THE FRONT FOOT, TURNED OUTWARD AT A SLIGHT ANGLE... -
Page 30: Using The Brake
Using the Brake PRESS DOWN GENTLY WITH THE REAR RIDING FOOT TO SLOW DOWN. APPLY MORE PRESSURE TO COME TO A COMPLETE STOP. REAR FOOT BRAKE... -
Page 31: Using The Kickstand
Using the Kickstand TO LOWER THE KICKSTAND: PIVOT IT DOWN FROM THE SIDE OF THE SCOOTER DECK. TILT THE SCOOTER TO REST IT ON THE KICKSTAND. TO RAISE THE KICKSTAND: PIVOT THE KICKSTAND UPWARDS TOWARDS THE REAR WHEEL OF THE SCOOTER DECK. IMPORTANT: ALWAYS RAISE THE KICKSTAND BEFORE RIDING. -
Page 33: Helmet Safety
Helmet Safety A HELMET SHOULD BE WORN BY THE RIDER AT ALL TIMES. PROPER POSITIONING: IMPROPER POSITIONING: THE FOREHEAD IS COVERED THE FOREHEAD IS EXPOSED. BY THE HELMET. A FALL COULD RESULT IN SERIOUS INJURY. * WEAR A HELMET, APPROPRIATE CLOTHING, SHOES, AND SAFETY GEAR. AVOID CLOTHING THAT CAN GET CAUGHT INTO OR UNDER THE WHEELS. -
Page 34: Care & Maintenance
• RIDE THE SCOOTER ON A SMOOTH, FLAT SURFACE. • PROTECT FROM WATER OR MOISTURE. • CONTACT THE JETSON CARE TEAM IF THERE ARE ANY ISSUES WITH THE SCOOTER. STORING THE SCOOTER • STORE THE SCOOTER INDOORS AND IN A DRY PLACE. - Page 35 Stay connected. Be sure to follow @ridejetson on social media to learn about fantastic offers, giveaways, and all the latest Jetson news. Loving your ride? Then be sure to leave a review at ridejetson.com/reviews. We can’t wait to hear from you!
- Page 36 Date Code: 02/2024 Document Edition: v2.0 © 2024, JETSON. ALL RIGHTS RESERVED. Manufactured by JETSON ELECTRIC BIKES LLC. No portion of this document, including shape, copy, graphics, and design, may be reproduced or transmitted in any form or by any means.
