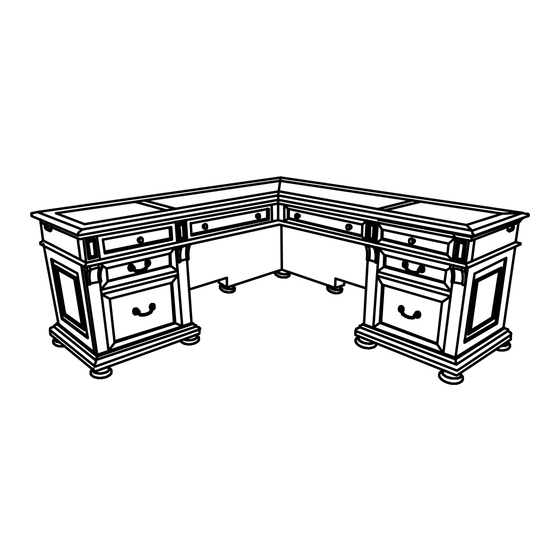

79307P PEDESTALS & MODESTY PANELS
A
ALLEN BOLT
5
" X 2" (11 PCS.)
16
E
SPRING WASHER M8
(15 PCS.)
1
TOP ASSEMBLIES (2 Pcs)
THE DESK CANNOT BE MOVED AFTER IT IS ASSEMBLED SO IT MUST BE ASSEMBLED IN THE AREA
IT WLL BE USED.
THE PEDESTAL WITH THE DOOR IS ON THE LEFT AS YOU ARE SITTING AT THE DESK
THE PEDESTAL WITH THE DRAWER IS ON THE RIGHT AS YOU ARE SITTING AT THE DESK.

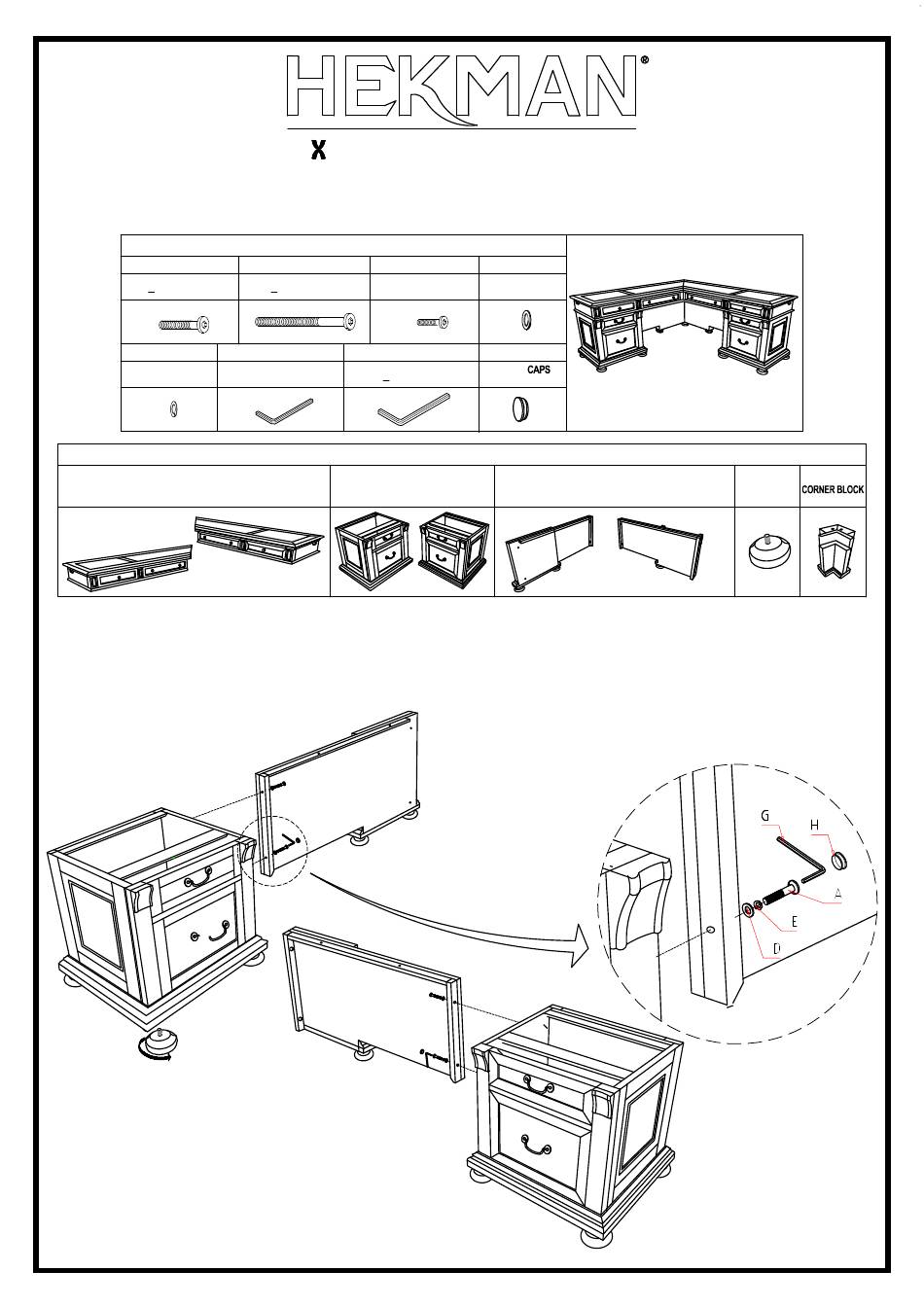

STEP 2.

ASSEMBLE THE LEFT PEDESTAL (2) AND THE LEFT
MODESTY PANEL (3) WITH ALLEN BOLTS (A),
SPRING WASHER (E), FLAT WASHER (D) USE
ALLEN KEY (G) BUT DO NOT TIGHTEN THE BOLTS
COMPLETELYAT THIS TIME.

STEP 3.

ASSEMBLE THE RIGHT PEDESTAL (2) AND THE
RIGHT MODESTY PANEL (3) SAME AS STEP 1.
A HOWARD MILLER COMPANY
79307T TOP PANELS

HARDWARE LIST

B C
ALLEN BOLT
ALLEN BOLT
5
" X 6" (2 PCS.)
M6 X 35 (2 PCS.)
16
F G
ALLEN KEY L5
ALLEN KEY L4
5
For M6 (1 PC.)
For " & M8 (1 PC.)
16
PART INSIDE
2
PEDESTALS (2 Pcs)

Assembly Instruction

Page 1 of 3
D
FLAT WASHER M8
(15 PCS.)
H
COVER
(6 PCS.)
3
MODESTY PANELS (2 Pcs)

STEP 1.

INSERT ALL THE BUNFEET (4) IN PRE-DRILLED HOLES,
SECURE BY TURNING THE BUNFOOT IN A CLOCKWISE
DIRECTION AS SHOWN.
4 5
BUNFEET
(8 Pcs)
(1 Pc)
