Howard Miller DANICA CURIO 680730 Instructions

Hardware Parts List:

2 - Knobs
2 - Screws
4 - Rubber Washers
4 - Strike Plates
4 - Foam Pads (black)
2 - Pivot Hinges
4 - Set Screws
4 - Nylon Pads
2 - Nylon Washers (white)
CAUTION: Two people are required to
assemble the Glass Door Panels to the
cabinet. Use care when handling the
Glass Door Panels. To avoid bodily injury or
harm, assemble Glass Door Panels in an
area without children or other potential
hazards present.
1. Choose a location for the curio display cabinet. Refer to your cabinet
set-up instructions. Securely fasten the wall safety strap to the cabinet
and wall and install glass shelves prior to Glass Door Panel assembly.
2. Unpack the Glass Door Panels and set aside in a safe location.
3. Install a Nylon Washer (1) and Pivot Hinge (1) to the Pivot Hinge Pin Hole as shown at the bottom left and right of the
cabinet. Install the Pivot Hinges with the Set Screws facing the inside of the cabinet. See Figure A.
Note: The Pivot Hinges on the top of the Glass Door Panels have been preinstalled at the factory.
CURIO DISPLAY CABINET INSTRUCTIONS
Strike Plate
Pivot Hinge
(Preinstalled)
Top
Left
FOR GLASS DOOR ASSEMBLY

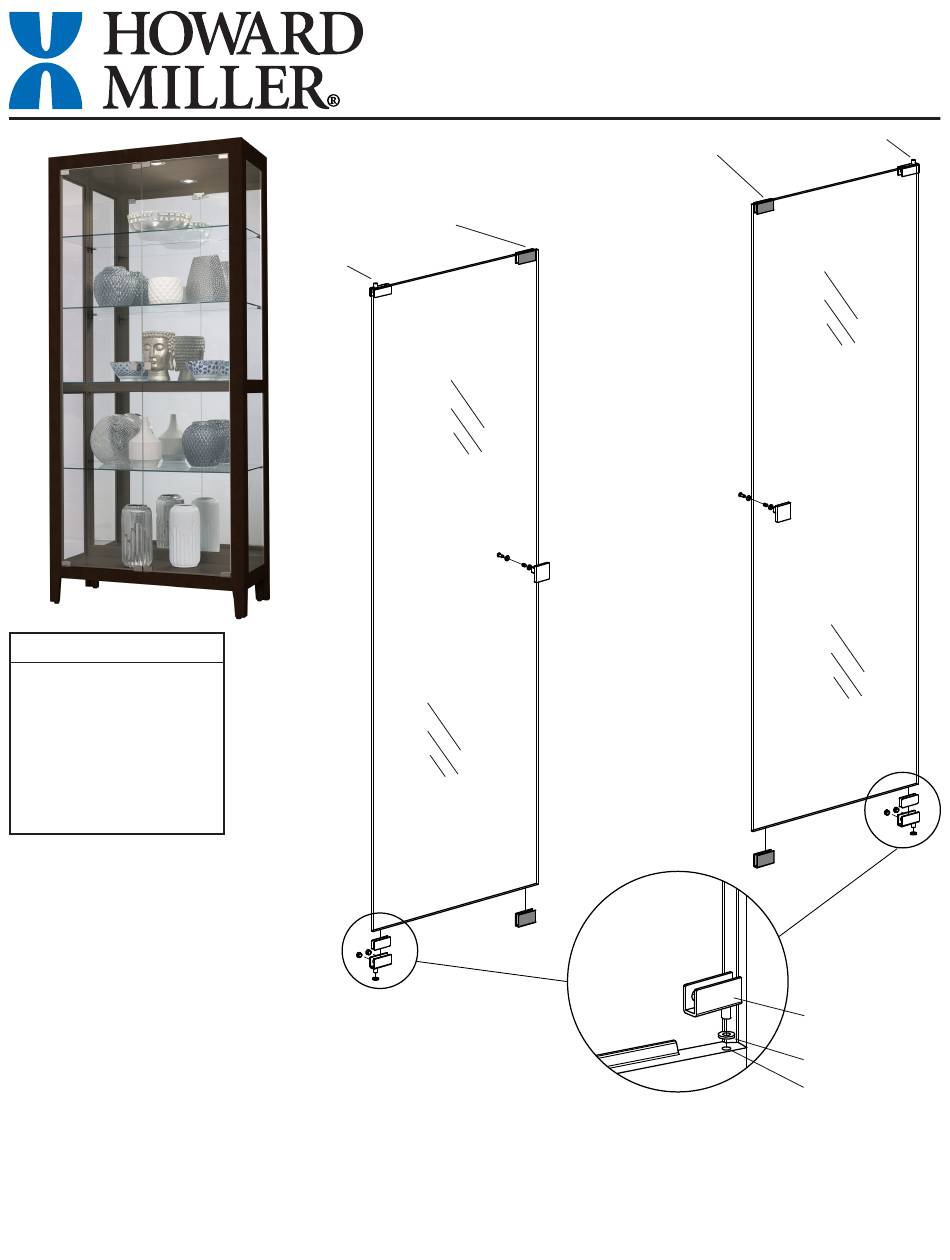

Figure A
Pivot Hinge
Strike Plate
(Preinstalled)
Right
Pivot Hinge
Nylon Washer (white)
Pivot Hinge
Pin Hole
(2 top, 2 bottom)
Top
