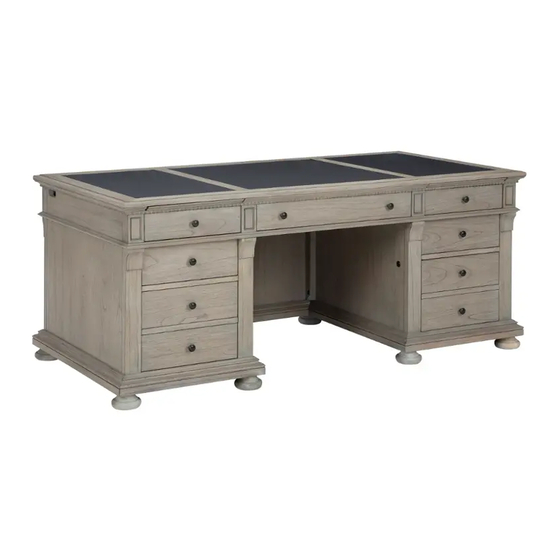

79400P / 79420P PEDS & MODESTY PANEL
A
ALLEN BOLT
5
" x 2"
(4 Pcs)
16

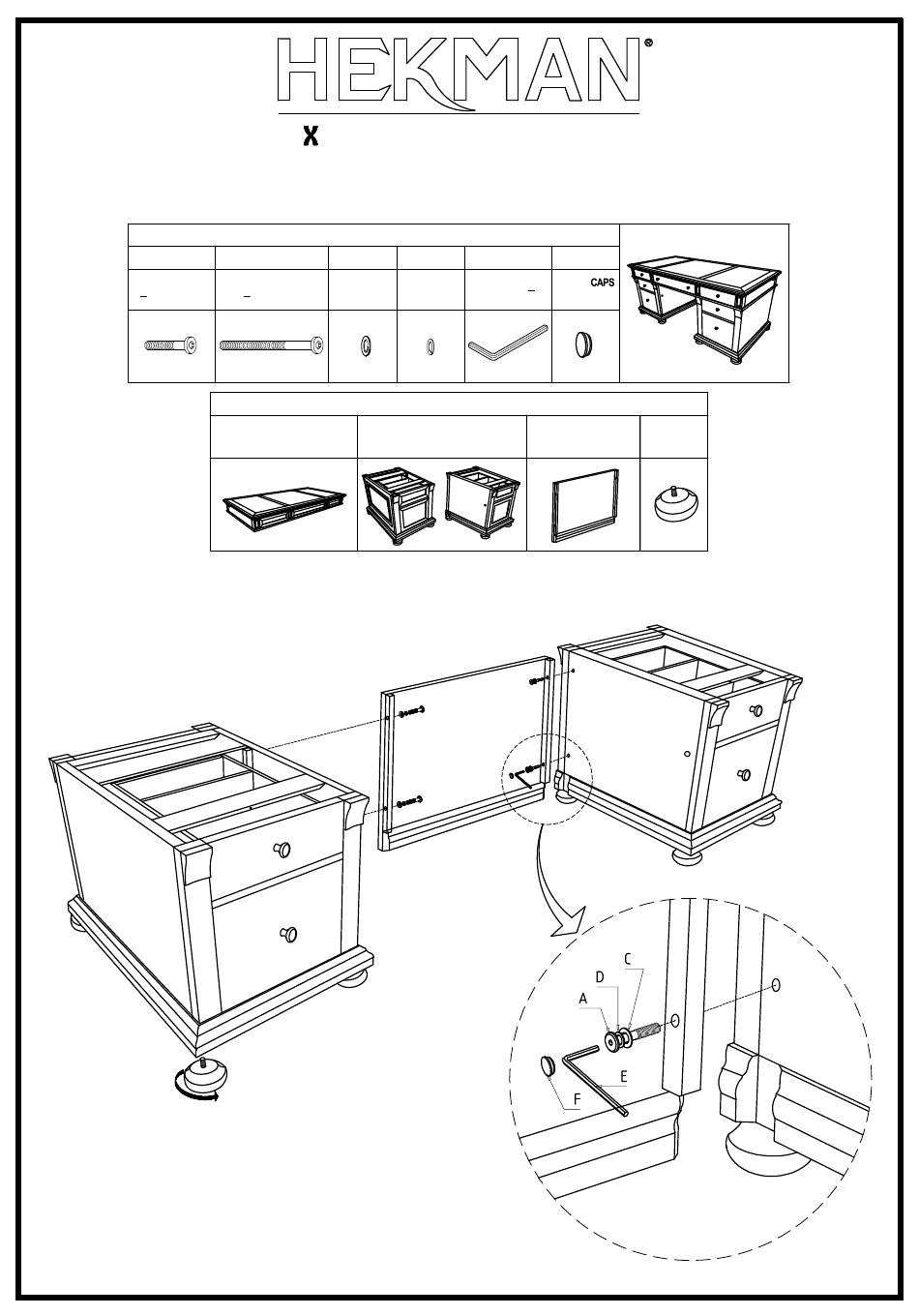

STEP 1.
INSERT ALL THE BUN FEET (4) IN PRE-DRILLED
HOLES, SECURE BY TURNING THE BUN FOOT IN A
CLOCKWISE DIRECTION AS SHOWN.
STEP 2.
ASSEMBLY LEFT & RIGHT PEDESTALS AND MODESTY
PANEL WITH ALLEN BOLT (A), LOCK WASHER (D),
FLAT WASHER (C) BY USING ALLEN KEY (E).
COVER THE BOLTS WITH COVER CAPS (F).
A HOWARD MILLER COMPANY
79 4 00T / 79420T TOP PANEL
HARDWARE LIST
B
C
FLAT W. M8
ALLEN BOLT
LOCK W. M8
(6 Pcs)
5
" x 6" (2 Pcs)
16
PART INSIDE
1
TOP ASSEMBLY (1 Pc)
PEDESTALS (2 Pcs)
Assembly Instruction
D
E
F
ALLEN KEY L5
COVER
5
(FOR BOLT
")
(6 Pcs)
(4 Pcs)
16
1 Pc
2
3
MODESTY PANEL (1 Pc)
Page 1 of 2
4
BUN FEET
(8 Pcs)
Advertisement
Table of Contents
Related Manuals for Howard Miller HEKMAN 79400P
Summary of Contents for Howard Miller HEKMAN 79400P
- Page 1 A HOWARD MILLER COMPANY 79400P / 79420P PEDS & MODESTY PANEL 79 4 00T / 79420T TOP PANEL HARDWARE LIST ALLEN KEY L5 FLAT W. M8 ALLEN BOLT ALLEN BOLT LOCK W. M8 COVER (FOR BOLT ") (6 Pcs) (6 Pcs) (4 Pcs) "...
- Page 2 STEP 3. PLACE THE TOP ASSEMBLY ON THE PEDESTALS AS SHOWN IN THE SIDE VIEW THE TOP ASSEMBLY IS SET A LITTLE FOWARD ON THE PEDESTALS THAN PUSHED BACK TO LOCK FRENCH CLEATS. OPEN THE UPPER DRAWERS IN THE PEDESTALS. SCREW THE TOP PANEL ASSEMBLY AND PEDESTALS WITH ALLEN BOLT (B), LOCK WASHER (D), FLAT WASHER (C) USING ALLEN KEY (E).
