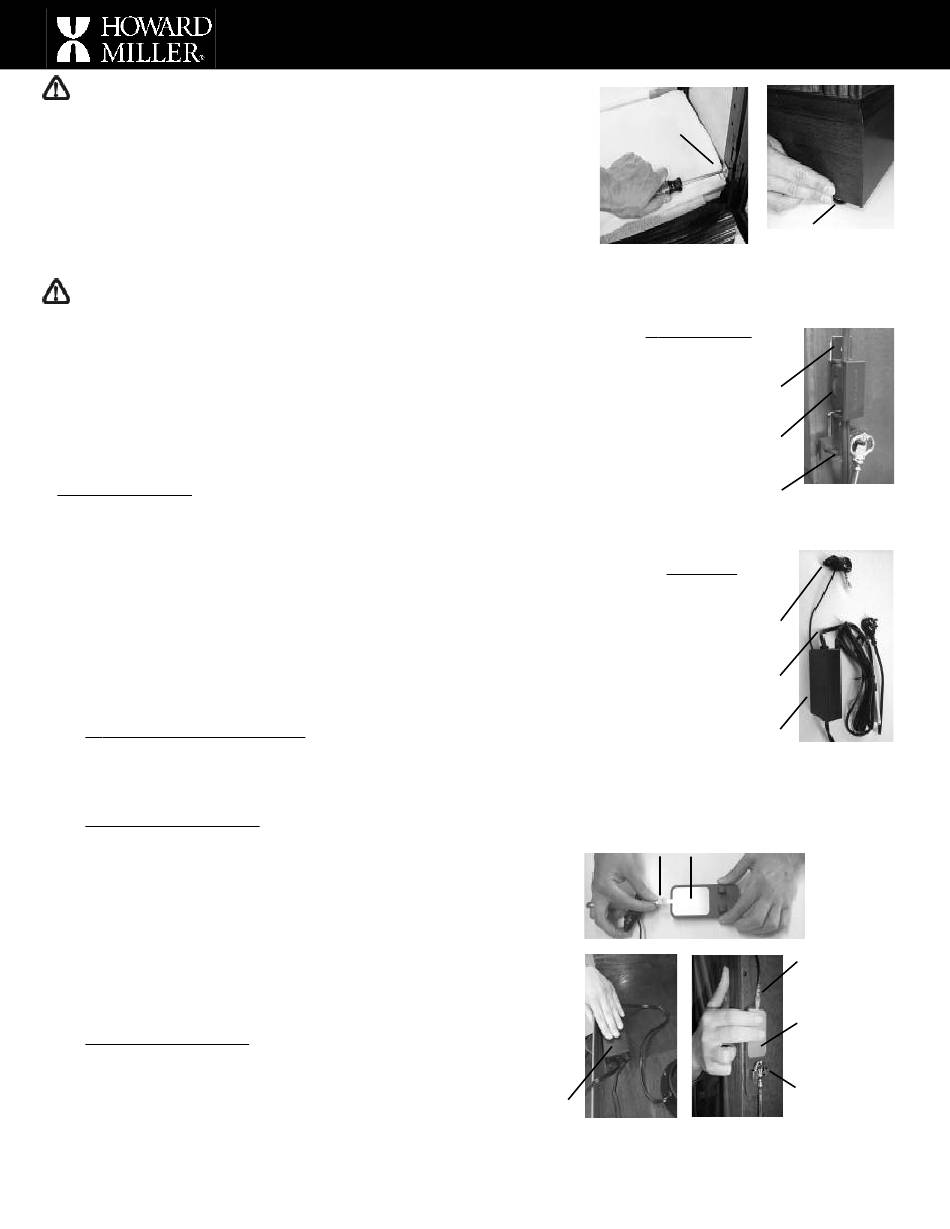

Howard Miller Curio Cabinet Instructions

Safety Tips:
•Ensure that the cabinet is positioned square and firm on the floor so that it will not fall
over. Some cabinets are equipped with adjustable floor levelers. Adjust the levelers for
maximum stability and proper alignment. (The levelers may have unscrewed unevenly
during shipment.)
•Some cabinets include a Safety Strap. Follow the instructions included with the Safety
Strap to ensure maximum stability. (See step #5)
•Keep plastic bags and small parts away from children.
•Cabinets may be lit using a halogen lamp. Halogen lamps operate at high temperatures.
Combustible materials or those adversely affected by drying or fading from the heat
should not be placed close to the lamp.
Care of Glass Shelves:
•To prevent breakage of glass shelves and collectibles, good judgement must be used
during the installation and loading of glass shelves. Heavy loads on the shelves must
be distributed and must not exceed 25 pounds.
•Glass shelves must be properly installed onto the shelf supports provided and should not
be overloaded. (Figure 8 & 9)
•Care should be taken when placing items onto each glass shelf. Sudden shock from any
size item can result in broken glass, personal injury, or damage to valuable items.
•The end use of this cabinet is beyond our control and therefore, the Howard Miller
Company cannot assume responsibility for broken glass or personal effects.
Cabinet Set Up
1. Inspect the inside of carton and packaging to make sure you have removed all separately
packed parts, including shelves, shelf supports, door lock key, No-Reach™ or Touch-
Lite™ assembly.
2. Locate the package of glass shelves. The shelves may be located:
a) Inside your cabinet and secured with shipping clips. To remove the shipping clips, you
will need a Phillips screwdriver. (Figure 1)
b) On top, underneath, or along side of your cabinet. You may need to lay the cabinet on
it's backside to remove the shelves from underneath the cabinet. Use caution when
removing these shelves.
3. If available on your cabinet, turn the adjustable floor levelers, that are on the bottom of the
cabinet, all the way in (up). (Figure 2)
4. Identify one of the following light switch options provided with your cabinet and install as directed.
No-Reach™ Light Switch: Installation
Locate the light On/Off switch. Insert the switch inside the plastic bracket by
pressing the electrical cord wires into each slot. Peel away the adhesive paper
from the backside of the bracket and press firmly to the backside of the cabinet
in the desired location. (Figure 3)
Touch-Lite™ Pad: Installation
a) Remove the Dimmer Block, Power Cord and Sensor Wire from the plastic bag,
usually located on top of the cabinet. (Figure 4)
b) The Touch Pad Key Holder Assembly is located in a plastic bag with the shelf clips.
c) Attach the Touch Pad Key Holder Assembly to the end of the Sensor Wire.
(Figure 5) Use care to avoid bending as damage may occur if this is forced on.
d) Peel away the adhesive paper from the backside of the Dimmer Block. Press
the Dimmer Block firmly to the top of the dust panel or to the backside of the
cabinet to allow convenient access to both the power source and the Touch
Pad Key Holder. (Figure 6)
e) Peel away the adhesive paper from the backside of the Touch Pad Key Holder
Assembly. Verify that the Key Holder is to the bottom and the attachment to
the Sensor Wire is at the top. Press the Touch Pad firmly to the backside of the
cabinet at the desired location. (Figure 7)
Touch-Lite™ Pad: Operation
The light begins in the off position. The operation is
sequential and will advance to the next Light Illumination
Level with each subsequent touch to the Touch Pad.
1st touch = Low Light Illumination Level
2nd touch = Medium Light Illumination Level
3rd touch = High Light Illumination Level
4th touch = turns light off
CABINET INSTRUCTIONS
Dimmer Block
Interruptor de graduación de luz
Bloc gradateur
Dimmer-Einsatz
Shipping Clip
Ajuste del sujetador
Attache de transport
Transportklemme
Patin de réglage
Nivellierfuß
FIGURE 1
FIGURA 1
FIGURE 1
ABBILDUNG 1
No-Reach™ Light Switch
Interruptor para lámpara No-Reach™
Interrupteur de lampe No-Reach
No-Reach Lichtschalter
Plastic Bracket
Soporte plástico
Patte en plastique
Kunststoffhalterung
On/Off Switch
Interruptor para apagado y encendido
Interrupteur de marche et arrêt
Ein/Aus-Schalter
Key Holder
Portalámpara de llave
Support de clé
Schlüsselhalter
Touch-Lite™ Pad
Almohadilla Touch-Lite™
Touche à effleurement
Touch-Lite Pad
Sensor Wire
Alambre sensor
Fil capteur
Sensordraht
Power Cord
Cable de alimentación eléctrica
Cordon d'alimentation
Netzkabel
Dimmer Block
Interruptor de graduación de luz
Bloc gradateur
Dimmer-Einsatz
Touch Pad Key Holder Assembly
Sensor Wire
Portalámpara de llave del controlador de tacto
Alambre sensor
Assemblage touche à effleurement/support de clé
Fil capteur
Touch-Pad/Schlüsselhalter-Bausatz
Sensordraht
FIGURE 6
FIGURE 7
FIGURA 6 FIGURA 7
FIGURE 6
FIGURE 7
ABBILDUNG 6 ABBILDUNG 7
Leveler
Nivelador
FIGURE 2
FIGURA 2
FIGURE 2
ABBILDUNG 2
FIGURE 3
FIGURA 3
FIGURE 3
ABBILDUNG 3
FIGURE 4
FIGURA 4
FIGURE 4
ABBILDUNG 4
FIGURE 5
FIGURA 5
FIGURE 5
ABBILDUNG 5
Sensor Wire
Alambre sensor
Fil capteur
Sensordraht
Touch Pad
Controlador de tacto
Touche à effleurement
Touch-Pad
Key Holder
Portalámpara de llave
Support de clé
Schlüsselhalter
