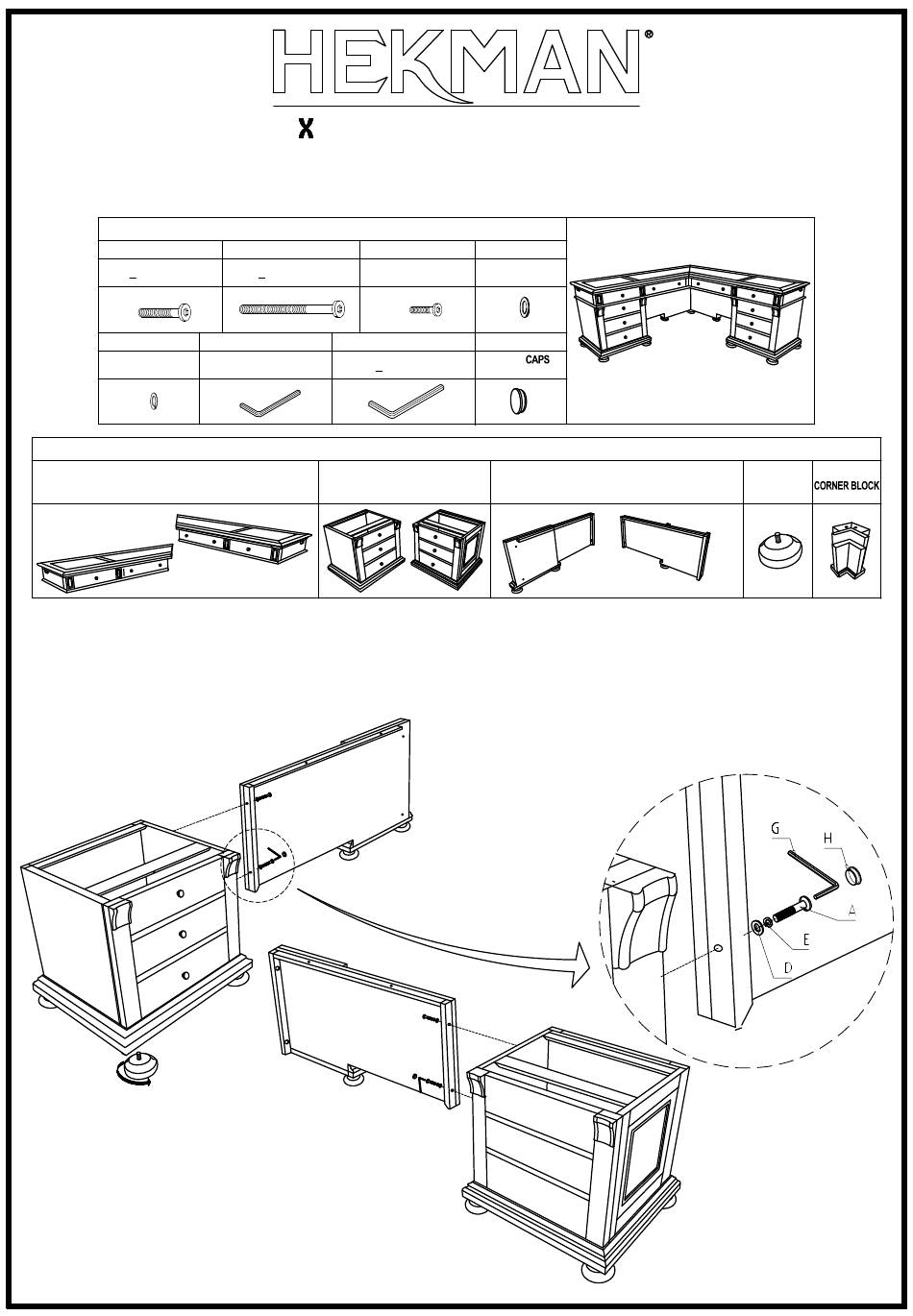

79407P / 79427P PEDESTALS & MODESTY PANELS
A
ALLEN BOLT
5
" X 2" (11 Pcs)
16
E
LOCK WASHER M8
(15 Pcs)
1
TOP ASSEMBLIES (2 Pcs)
THE DESK CANNOT BE MOVED AFTER IT IS ASSEMBLED, IT MUST BE ASSEMBLED IN THE AREA IT
WLL BE USED.
THE PEDESTAL WITH THE DOOR IS ON THE LEFT AS YOU ARE SITTING AT THE DESK
THE PEDESTAL WITH THE DRAWER IS ON THE RIGHT AS YOU ARE SITTING AT THE DESK.

STEP 2.

ASSEMBLE THE LEFT PEDESTAL (2) AND THE LEFT
MODESTY PANEL (3) WITH ALLEN BOLTS (A),
LOCK WASHER (E), FLAT WASHER (D) USE ALLEN
KEY (G) BUT DO NOT TIGHTEN THE BOLTS
COMPLETELYAT THIS TIME.

STEP 3.

ASSEMBLE THE RIGHT PEDESTAL (2) AND THE
RIGHT MODESTY PANEL (3) SAME AS STEP 1.
A HOWARD MILLER COMPANY
79407T / 79427T TOP ASSEMBLY

HARDWARE LIST

B
ALLEN BOLT
ALLEN BOLT
5
" X 6" (2 Pcs)
M6 X 35 (2 Pcs)
16
F G
ALLEN KEY L5
ALLEN KEY L4
5
For M6 (1 Pc) For " & M8 (1 Pc)
16
PART INSIDE
2
PEDESTALS (2 Pcs)

Assembly Instruction

C D
FLAT WASHER M8
(15 Pcs)
H
COVER
(6 Pcs)
MODESTY PANELS (2 Pcs)

STEP 1.

INSERT ALL THE BUN FEET (4) IN PRE-DRILLED HOLES,
SECURE BY TURNING THE BUN FOOT IN A CLOCKWISE
DIRECTION AS SHOWN.
3 4
BUN FEET
(8 Pcs)
5
(1 Pc)
