Summary of Contents for Howard Miller SmartMoves

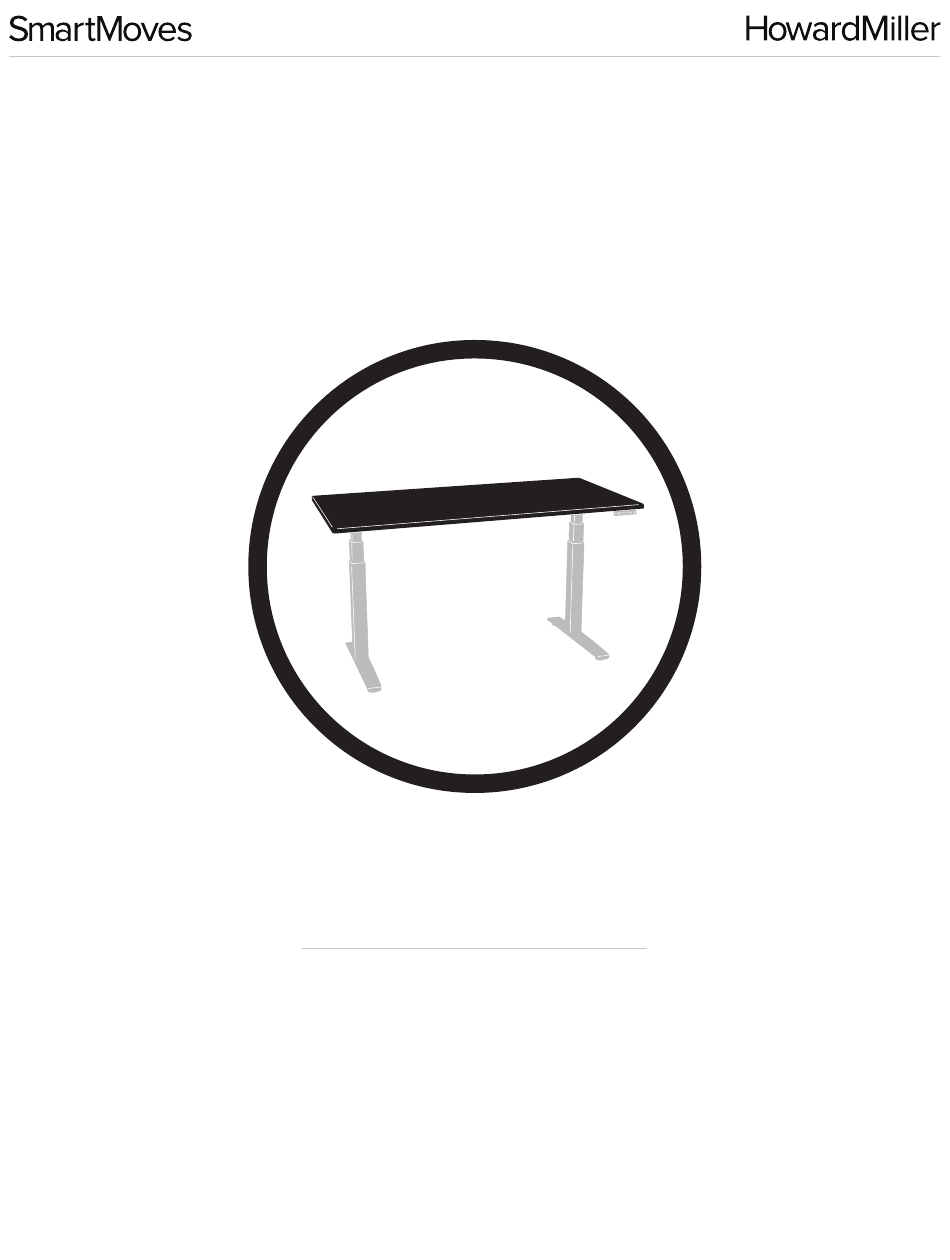

- Page 1 Easy Assembly Adjustable Desktop and Base...
- Page 2 Desk Assembly — Top, Base and Memory Height Keypad Assembly of your SmartMoves desk begins with a single step. WARNING: Keep small parts and plastic away from children. Tools Required Time Required Phillips-head Hex key Hold on tight, screwdriver (provided)
- Page 3 Locate a Foot and four M6 x 35mm Levelers (4) Front of Desktop bolts. Align the holes on the Foot with the holes on the bottom of the Leg. Make sure Front of Desktop the Foot is installed so the longer section of the Foot Leg faces the front of the Desktop.
- Page 4 Easy Assembly — Accessories Desktop Accessory Diagram Use this easy diagram to locate the correct predrilled holes for your SmartMoves Accessories. Note that a few Accessories have optional locations to best suit your needs. A1, A2 E1, E2, E3, E4...
- Page 5 Wire Management Ties - Use the Wire Management Ties to secure the wires under the Desktop. Elevated Shelf Position the fully assembled SmartMoves Desk upright. Place the Elevated CL_Shelf_60 Shelf face down on a clean, flat surface. Arrange Shelf Brackets so each set...
-
Page 6: Tools Required
SmartMoves Memory Height Keypad Smart people choose SmartMoves. They also read directions. Tools Required A steady hand Set-up Procedure Plug the Desk into an electrical source. (The Set-up Procedure must be completed after assembly and prior to normal operation.) Step 1 Step 2 Press and hold the UP ( “^”... - Page 7 Advanced Operating Instructions and Troubleshooting Congrats. You are now in advanced territory. To Set Maximum Desk Height Limit Step 1 Step 2 Step 3 Press and hold UP or DOWN arrow. Simultaneously press and hold “3” Release “3” and “S” simultaneously. Release when desk reaches desired and “S”...
- Page 8 Advanced Operating Instructions and Troubleshooting (Continued) To Synchronize Display Height and Actual Desk Height Step 1 Step 2 Step 3 Step 4 Press and hold DOWN arrow to move desk Simultaneously press and hold UP Press UP or DOWN arrow to Press “S”.
