Aries AL234045 Installation Manual

INSTALLATION MANUAL

Parts List

1 Driver / left side bar
1 Passenger / right side bar
6 Mounting bracket, universal
2 Mounting bracket,
passenger / right, front, upper
2 Mounting bracket,
passenger / right, front, lower
14 Clip nut, M8
30 Hex bolt, M8 x 25mm
30 Flat washer, M8
30 Lock washer, M8
2 Hex bolt, M10 x 30mm
2 Flat washer, M10
2 Lock washer, M10

Tools Required

Ratchet Socket, 16mm
Wrench, 16mm Socket, 13mm
Level

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
Use above torque setting
unless otherwise noted
Level of Difficulty
Easy

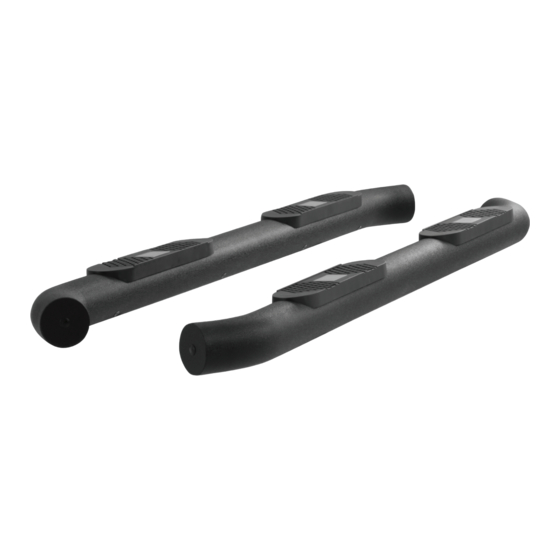

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product.
Do not use dish detergent, abrasive cleaners, abrasive pads,
wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • AL234045-INS-RE • 877.287.8634 • NEED ASSISTANCE?
AL234045
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
