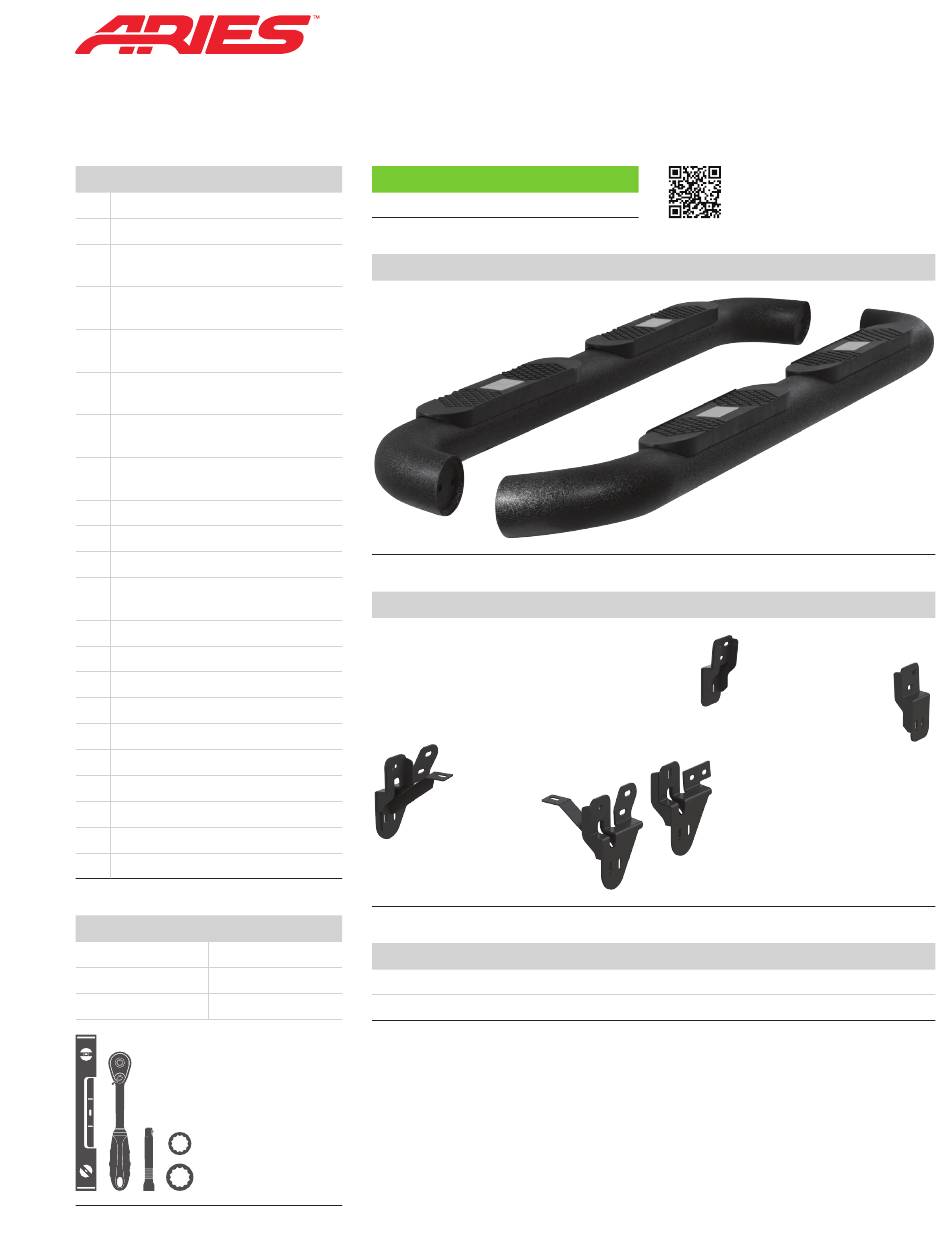

INSTALLATION MANUAL
Parts List
1
Driver / left side bar
1
Passenger / right side bar
2
Driver / left front mounting
bracket, (1) 2014 & older (1) 2015+
1
Passenger / right
front mounting bracket
1
Driver / left
rear mounting bracket
1
Passenger / right
rear mounting bracket
1
Driver / left
front support bracket
1
Passenger / right
front support bracket
5
Hex head bolt, 8mm
5
Flat washer, 8mm
5
Lock washer, 8mm
4
Nut plate, 10mm /
Bolt, 12mm x 35mm
4
Hex head bolt, 10mm x 35mm
8
Hex head bolt, 10mm x 50mm
12
Flat washer, 10mm
12
Lock washer, 10mm
2
Bolt plate, 12mm x 40mm
6
Flat washer, 12mm
6
Lock washer, 12mm
6
Hex nut, 12mm
6
Plastic retainer, 12mm
1
Fish wire, 12mm
Tools Required
Ratchet
Ratchet extension
Socket, 16mm
Level
Socket, 18mm
Level of Difficulty
Easy

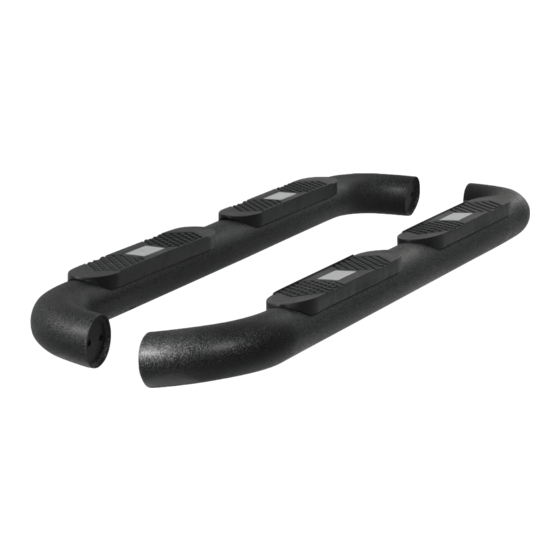

Product Image
Brackets and Hardware
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
PAGE 1 • AL235017-INS-RB • 800.798.0813 • NEED ASSISTANCE?
AL235017
Scan
for helpful
install tips
Front
Front - 2015+
Front - 2014 & older
• ARIESAUTOMOTIVE.COM
Rear
Rear
Advertisement
Table of Contents
Related Manuals for Aries AL235017
Summary of Contents for Aries AL235017
- Page 1 Notes and Maintenance Socket, 16mm Level Before you begin installation, read all instructions thoroughly. Socket, 18mm Proper tools will improve the quality of installation and reduce the time required. • ARIESAUTOMOTIVE.COM PAGE 1 • AL235017-INS-RB • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Skip to step 9A if the vehicle has factory- threaded mounting holes (2015 or newer). Remove the factory-applied tape on the second access hole, and insert a 12mm bolt plate, securing it with a plastic retainer. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • AL235017-INS-RB • PAGE 2...
- Page 3 Fasten with a 10mm x 35mm hex bolt, locking washer and flat washer. Step 8 Apply another 12mm flat washer, locking washer and nut onto the last bolt. • ARIESAUTOMOTIVE.COM PAGE 3 • AL235017-INS-RB • 800.798.0813 • NEED ASSISTANCE?
- Page 4 Note: 2015 and newer trucks come with 8mm factory threads in the bottom mounting locations. For factory threads, secure the bottom of the bracket with one 8mm hex bolt, lock washer and flat washer. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • AL235017-INS-RB • PAGE 4...
- Page 5 Congratulations on the installation of your new ARIES 4" round Big Step side bars. ™ With the side bars installed, periodic inspections should be performed to ensure all mounting hardware remains tight. • ARIESAUTOMOTIVE.COM PAGE 5 • AL235017-INS-RB • 800.798.0813 • NEED ASSISTANCE?
